Screws - Shoulder - Slotted Shallow Head - Carbon Steel

Screws -> Shoulder -> Slotted Shallow Head -> Carbon Steel

There are 12 products in the sub-categories of Screws - Shoulder - Slotted Shallow Head - Carbon Steel. Browse the Screws - Shoulder - Slotted Shallow Head - Carbon Steel products table.

Category Details

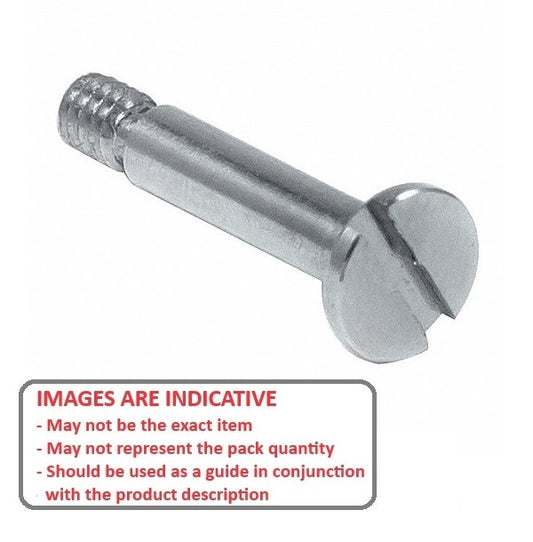

A selection of Carbon Steel Slotted Shallow Head Shoulder Screws. Hardened

  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Screws - Shoulder - Slotted Shallow Head - Carbon Steel category on the MBA Minibearings main store.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (S) Head Height (H) Head Diameter (D) Indicative
Shoulder Screws - 4x4 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
4.000
mm

(Equiv. 0.157 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Head Height (H)
1.80
mm
Head Diameter (D)
7.00
mm
Shoulder Screws - 4x4 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD040-004-SLL-C (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.86 AUD
$7.23 AUD $3.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (S) Indicative
Shoulder Screws - 4x4 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
4.000
mm

(Equiv. 0.157 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Shoulder Screws - 4x4 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 1.80 mm    Head Diameter (D): 7.00 mm
Part Number: SHLD040-004-SLL-C (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.86 AUD
$7.23 AUD $3.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Shoulder Screws - 4x6 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
6.000
mm

(Equiv. 0.236 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Head Height (H)
1.80
mm
Head Diameter (D)
7.00
mm
Shoulder Screws - 4x6 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD040-006-SLL-C (Each)
47 Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.68 AUD
$4.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 47 available can be backordered.
Shoulder Screws - 4x6 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
6.000
mm

(Equiv. 0.236 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Shoulder Screws - 4x6 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 1.80 mm    Head Diameter (D): 7.00 mm
Part Number: SHLD040-006-SLL-C (Each)
47 Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.68 AUD
$4.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

47 Available Now. Backorder if more than 47.
Shoulder Screws - 4x8 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
8.000
mm

(Equiv. 0.315 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Head Height (H)
1.80
mm
Head Diameter (D)
7.00
mm
Shoulder Screws - 4x8 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD040-008-SLL-C (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Mar 01, 2026
$246.77 AUD
$296.13 AUD $246.77 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shoulder Screws - 4x8 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
8.000
mm

(Equiv. 0.315 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Shoulder Screws - 4x8 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 1.80 mm    Head Diameter (D): 7.00 mm
Part Number: SHLD040-008-SLL-C (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Mar 01, 2026
$246.77 AUD
$296.13 AUD $246.77 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shoulder Screws - 4x10 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
10.000
mm

(Equiv. 0.394 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Head Height (H)
1.80
mm
Head Diameter (D)
7.00
mm
Shoulder Screws - 4x10 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD040-010-SLL-C (PK-2)
91 units (182 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$6.14 AUD
$6.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 91 available can be backordered.
Shoulder Screws - 4x10 mm - M3x0.5 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
4.000
mm

(Equiv. 0.157 in.)
Shoulder Length (A)
10.000
mm

(Equiv. 0.394 in.)
Thread (D)
M3x0.5

Max. Thread Length (S)
4.50
mm
Shoulder Screws - 4x10 mm - M3x0.5 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 1.80 mm    Head Diameter (D): 7.00 mm
Part Number: SHLD040-010-SLL-C (PK-2)
91 units (182 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$6.14 AUD
$6.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

91 units (182 pcs) Available Now. Backorder if more than 91.
Shoulder Screws - 5.5x2 mm - M4x0.7 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
5.500
mm

(Equiv. 0.217 in.)
Shoulder Length (A)
2.000
mm

(Equiv. 0.079 in.)
Thread (D)
M4x0.7

Max. Thread Length (S)
4.50
mm
Head Height (H)
2.40
mm
Head Diameter (D)
8.50
mm
Shoulder Screws - 5.5x2 mm - M4x0.7 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD055-002-SLL-C (PK-10)
8 units (80 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$7.14 AUD
$13.49 AUD $7.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 8 available can be backordered.
Shoulder Screws - 5.5x2 mm - M4x0.7 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
5.500
mm

(Equiv. 0.217 in.)
Shoulder Length (A)
2.000
mm

(Equiv. 0.079 in.)
Thread (D)
M4x0.7

Max. Thread Length (S)
4.50
mm
Shoulder Screws - 5.5x2 mm - M4x0.7 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 2.40 mm    Head Diameter (D): 8.50 mm
Part Number: SHLD055-002-SLL-C (PK-10)
8 units (80 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$7.14 AUD
$13.49 AUD $7.14 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

8 units (80 pcs) Available Now. Backorder if more than 8.
Shoulder Screws - 5.5x2.5 mm - M4x0.7 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
5.500
mm

(Equiv. 0.217 in.)
Shoulder Length (A)
2.500
mm

(Equiv. 0.098 in.)
Thread (D)
M4x0.7

Max. Thread Length (S)
6.00
mm
Head Height (H)
2.40
mm
Head Diameter (D)
8.50
mm
Shoulder Screws - 5.5x2.5 mm - M4x0.7 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD055-0025-SLL-C (PK-5)
12 units (60 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.68 AUD
$6.87 AUD $3.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 12 available can be backordered.
Shoulder Screws - 5.5x2.5 mm - M4x0.7 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
5.500
mm

(Equiv. 0.217 in.)
Shoulder Length (A)
2.500
mm

(Equiv. 0.098 in.)
Thread (D)
M4x0.7

Max. Thread Length (S)
6.00
mm
Shoulder Screws - 5.5x2.5 mm - M4x0.7 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 2.40 mm    Head Diameter (D): 8.50 mm
Part Number: SHLD055-0025-SLL-C (PK-5)
12 units (60 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.68 AUD
$6.87 AUD $3.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (60 pcs) Available Now. Backorder if more than 12.
Shoulder Screws - 7x2.5 mm - M5x0.8 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
7.000
mm

(Equiv. 0.276 in.)
Shoulder Length (A)
2.500
mm

(Equiv. 0.098 in.)
Thread (D)
M5x0.8

Max. Thread Length (S)
7.00
mm
Head Height (H)
2.70
mm
Head Diameter (D)
11.00
mm
Shoulder Screws - 7x2.5 mm - M5x0.8 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD070-0025-SLL-C (Each)
16 Available Now | Further orders can be expected around Sun, Mar 01, 2026
$1.86 AUD
$3.33 AUD $1.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 16 available can be backordered.
Shoulder Screws - 7x2.5 mm - M5x0.8 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
7.000
mm

(Equiv. 0.276 in.)
Shoulder Length (A)
2.500
mm

(Equiv. 0.098 in.)
Thread (D)
M5x0.8

Max. Thread Length (S)
7.00
mm
Shoulder Screws - 7x2.5 mm - M5x0.8 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 2.70 mm    Head Diameter (D): 11.00 mm
Part Number: SHLD070-0025-SLL-C (Each)
16 Available Now | Further orders can be expected around Sun, Mar 01, 2026
$1.86 AUD
$3.33 AUD $1.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

16 Available Now. Backorder if more than 16.
Shoulder Screws - 8x3 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
3.000
mm

(Equiv. 0.118 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Head Height (H)
3.10
mm
Head Diameter (D)
13.00
mm
Shoulder Screws - 8x3 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD080-003-SLL-C (PK-2)
45 units (90 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.14 AUD
$5.67 AUD $3.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 45 available can be backordered.
Shoulder Screws - 8x3 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
3.000
mm

(Equiv. 0.118 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Shoulder Screws - 8x3 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 3.10 mm    Head Diameter (D): 13.00 mm
Part Number: SHLD080-003-SLL-C (PK-2)
45 units (90 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$3.14 AUD
$5.67 AUD $3.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

45 units (90 pcs) Available Now. Backorder if more than 45.
Shoulder Screws - 8x5 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
5.000
mm

(Equiv. 0.197 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Head Height (H)
3.10
mm
Head Diameter (D)
13.00
mm
Shoulder Screws - 8x5 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD080-005-SLL-C (PK-2)
9 units (18 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 9 available can be backordered.
Shoulder Screws - 8x5 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
5.000
mm

(Equiv. 0.197 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Shoulder Screws - 8x5 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 3.10 mm    Head Diameter (D): 13.00 mm
Part Number: SHLD080-005-SLL-C (PK-2)
9 units (18 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (18 pcs) Available Now. Backorder if more than 9.
Shoulder Screws - 8x6 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
6.000
mm

(Equiv. 0.236 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Head Height (H)
3.10
mm
Head Diameter (D)
13.00
mm
Shoulder Screws - 8x6 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD080-006-SLL-C (PK-2)
12 units (24 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 12 available can be backordered.
Shoulder Screws - 8x6 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
6.000
mm

(Equiv. 0.236 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Shoulder Screws - 8x6 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 3.10 mm    Head Diameter (D): 13.00 mm
Part Number: SHLD080-006-SLL-C (PK-2)
12 units (24 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (24 pcs) Available Now. Backorder if more than 12.
Shoulder Screws - 8x8 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
8.000
mm

(Equiv. 0.315 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Head Height (H)
3.10
mm
Head Diameter (D)
13.00
mm
Shoulder Screws - 8x8 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD080-008-SLL-C (PK-2)
20 units (40 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$2.50 AUD
$4.58 AUD $2.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Shoulder Screws - 8x8 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
8.000
mm

(Equiv. 0.315 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Shoulder Screws - 8x8 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 3.10 mm    Head Diameter (D): 13.00 mm
Part Number: SHLD080-008-SLL-C (PK-2)
20 units (40 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$2.50 AUD
$4.58 AUD $2.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

20 units (40 pcs) Available Now. Backorder if more than 20.
Shoulder Screws - 8x12 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
12.000
mm

(Equiv. 0.472 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Head Height (H)
3.10
mm
Head Diameter (D)
13.00
mm
Shoulder Screws - 8x12 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel
Part Number: SHLD080-012-SLL-C (PK-2)
41 units (82 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$2.77 AUD
$5.15 AUD $2.77 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 41 available can be backordered.
Shoulder Screws - 8x12 mm - M6x1.0 Slotted Shallow Head - Carbon Steel Screw
Shoulder Diameter (E)
8.000
mm

(Equiv. 0.315 in.)
Shoulder Length (A)
12.000
mm

(Equiv. 0.472 in.)
Thread (D)
M6x1.0

Max. Thread Length (S)
8.00
mm
Shoulder Screws - 8x12 mm - M6x1.0 Slotted Shallow Head - Carbon Steel
Material: Carbon Steel    Head Height (H): 3.10 mm    Head Diameter (D): 13.00 mm
Part Number: SHLD080-012-SLL-C (PK-2)
41 units (82 pcs) Available Now | Further orders can be expected around Sun, Mar 01, 2026
$2.77 AUD
$5.15 AUD $2.77 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

41 units (82 pcs) Available Now. Backorder if more than 41.
