Screws - Countersunk - Phillips - Titanium CP Grade

Screws -> Countersunk -> Phillips -> Titanium CP Grade

There is only 1 product in the sub-categories of Screws - Countersunk - Phillips - Titanium CP Grade. Browse the Screws - Countersunk - Phillips - Titanium CP Grade products table.

Category Details

A selection of Titanium CP Grade Phillips Countersunk Screws. Flat Head Countersunk. Metric only. CP2 Commercially Pure Titanium Grade 2. Tensile Strength 35.2 kgf/mm2. Yield Strength 28.2 kgf/mm2. Elongation 20 Percent.

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts. Commercially pure for general industrial corrosion applications. UNS R50400.
  • Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.3, O 0.25, Ti Balance

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Screws - Countersunk - Phillips - Titanium CP Grade category on the MBA Minibearings main store.
Thread Size (C) Overall Length (L) Material Max Head Diameter (A) Max Head Height Indicative

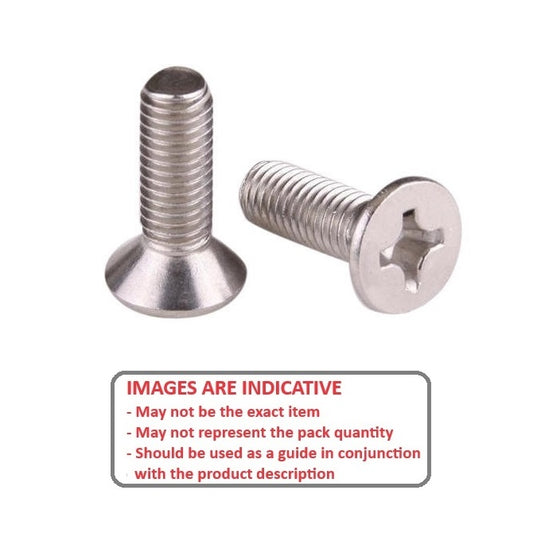

Countersunk Screws - M3 - 3x0.5mm - 6 mm - Titanium CP Grade 2 Phillips Screw
Thread Size (C)
M3 (3x0.5mm)

Overall Length (L)
6
mm

(Equiv. 0.236 in.)
Material
Titanium CP Grade 2

Max Head Diameter (A)
5.60
mm
Max Head Height
1.7
mm
Countersunk Screws - M3 - 3x0.5mm - 6 mm - Titanium CP Grade 2 Phillips
Material: Titanium - CP2 Commercially Pure    Type: Flat Countersunk / Philips    Pitch: 0.500 mm    Threads Per Inch: 50.8 TPI
Part Number: SK030M-006-PH-TC2 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 19, 2026
$31.05 AUD
$31.05 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (C) Overall Length (L) Material Max Head Diameter (A) Indicative
Countersunk Screws - M3 - 3x0.5mm - 6 mm - Titanium CP Grade 2 Phillips Screw
Thread Size (C)
M3 (3x0.5mm)

Overall Length (L)
6
mm

(Equiv. 0.236 in.)
Material
Titanium CP Grade 2

Max Head Diameter (A)
5.60
mm
Countersunk Screws - M3 - 3x0.5mm - 6 mm - Titanium CP Grade 2 Phillips
Material: Titanium - CP2 Commercially Pure    Max Head Height: 1.7 mm    Type: Flat Countersunk / Philips    Pitch: 0.500 mm    Threads Per Inch: 50.8 TPI
Part Number: SK030M-006-PH-TC2 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 19, 2026
$31.05 AUD
$31.05 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
