| Outside Diameter (A) | Bore (d) | Roller Width (B) | Bearing Width (W) |

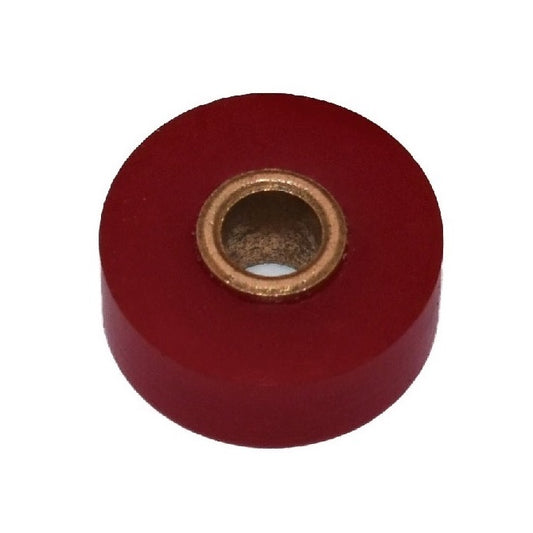

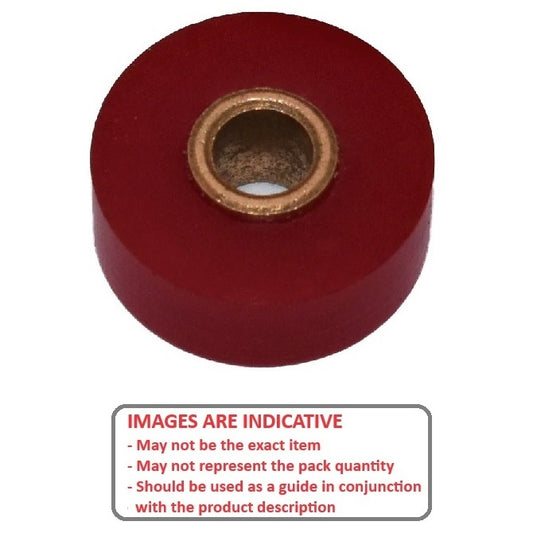

Indicative Image |
|---|---|---|---|---|
|
Outside Diameter (A)
12.70
mm (0.5 in.) |
Bore (d)
4.775
mm (0.188 in.) |
Roller Width (B)
9.53
mm (0.375 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1000RS Idler with Bearing Rollers - 12.7x4.775x9.53 mm
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.77 AUD
Regular price
Unit price
per
Each
|
||||
| Outside Diameter (A) | Bore (d) | Roller Width (B) | Bearing Width (W) |
Indicative Image |
|
Outside Diameter (A)
12.70
mm (0.5 in.) |
Bore (d)
4.775
mm (0.188 in.) |
Roller Width (B)
9.53
mm (0.375 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1000RS Idler with Bearing Rollers - 12.7x4.775x9.53 mm
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.77 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Outside Diameter (A)
23.42
mm (0.922 in.) |
Bore (d)
6.350
mm (0.25 in.) |
Roller Width (B)
12.29
mm (0.484 in.) |
|
|
| Material: Aluminium Alloy Sleeve ID (d1): 9.525 Roller Material: Urethane Surface Roller Hardness: 60 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.41 / 2.38 mm Sleeve OD (G): 17.46 mm | ||||
|
Part Number: IDR-2342X1229X0635-UR Idler with Bearing Rollers - 23.42x6.35x12.29 mm - Aluminium Alloy
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
|
||||
|
Outside Diameter (A)
23.42
mm (0.922 in.) |
Bore (d)
6.350
mm (0.25 in.) |
Roller Width (B)
12.29
mm (0.484 in.) |
|
|
| Material: Aluminium Alloy Sleeve ID (d1): 9.525 Roller Material: Urethane Surface Roller Hardness: 60 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.41 / 2.38 mm Sleeve OD (G): 17.46 mm | ||||
|
Part Number: IDR-2342X1229X0635-UR Idler with Bearing Rollers - 23.42x6.35x12.29 mm - Aluminium Alloy
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Outside Diameter (A)
41.28
mm (1.625 in.) |
Bore (d)
9.550
mm (0.376 in.) |
Roller Width (B)
12.70
mm (0.5 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1030RS Idler with Bearing Rollers - 41.28x9.55x12.7 mm Urethane With Plain Sintered Bearing
20 Available Now | Further orders can be expected around Wed, Jul 30, 2025 Regular price
$104.86 AUD
Regular price
Unit price
per
Each
|
||||
|
Outside Diameter (A)
41.28
mm (1.625 in.) |
Bore (d)
9.550
mm (0.376 in.) |
Roller Width (B)
12.70
mm (0.5 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1030RS Idler with Bearing Rollers - 41.28x9.55x12.7 mm Urethane With Plain Sintered Bearing
20 Available Now | Further orders can be expected around Wed, Jul 30, 2025 Regular price
$104.86 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Outside Diameter (A)
50.80
mm (2 in.) |
Bore (d)
9.550
mm (0.376 in.) |
Roller Width (B)
15.88
mm (0.625 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1035RS Idler with Bearing Rollers - 50.8x9.55x15.88 mm Urethane With Plain Sintered Bearing
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$42.64 AUD
Regular price
Unit price
per
Each
|
||||
|
Outside Diameter (A)
50.80
mm (2 in.) |
Bore (d)
9.550
mm (0.376 in.) |
Roller Width (B)
15.88
mm (0.625 in.) |
|
|
| Roller Material: Neoprene Roller Hardness: 55 Durometer Bearing Type: Sintered Bronze Bearing Bearing Projection ( D / F ): 0.13 x 0.13 mm | ||||
|
Part Number: RR1035RS Idler with Bearing Rollers - 50.8x9.55x15.88 mm Urethane With Plain Sintered Bearing
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$42.64 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
