Roller Followers - Urethane Coated

Roller Followers -> Urethane Coated

There is only 1 product in the sub-categories of Roller Followers - Urethane Coated. Browse the Roller Followers - Urethane Coated products table.

Category Details

A selection of Urethane Coated Roller Followers. Urethane tyred cam yoke rollers for noise reduction, reduced wear and non marking. 80 Shore A hardness.

  • Polycoated shore 80A cast urethane cover

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Roller Followers - Urethane Coated category on the MBA Minibearings main store.
Outside Diameter (A) Bore (B) Roller Width (C) Overall Width (D) +0.13/-0.26 Approx Washer OD (E) Ref. Oil Hole Diameter (F) Indicative

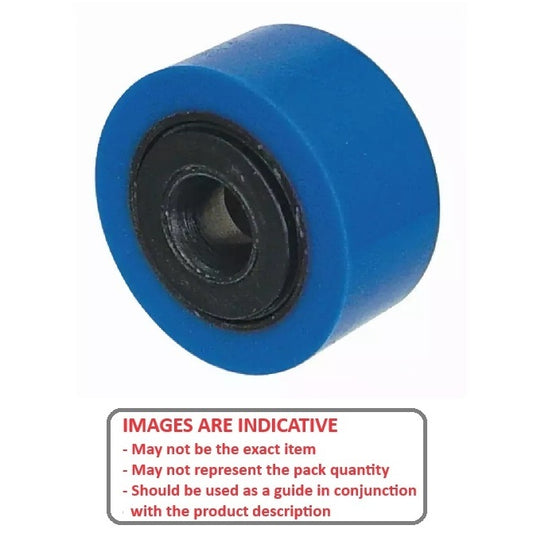

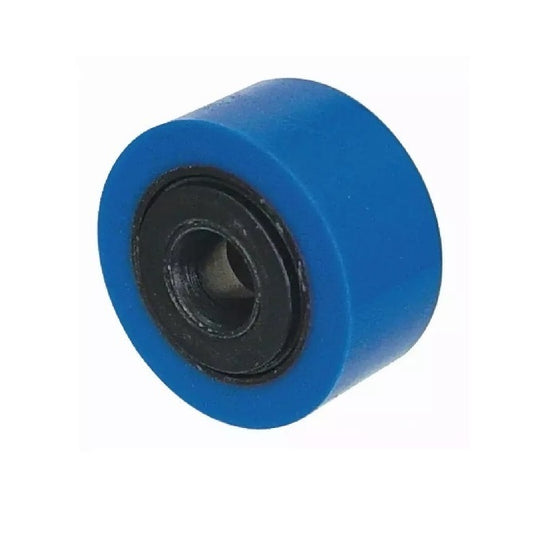

Urethane Coated Roller Followers - 25.4x6.35x12.7 mm - Polyurethane Coated
Outside Diameter (A)
25.400
mm
+/- 0.13
(Equiv. 1 in.)
Bore (B)
6.350
mm
+ 0.005 / - 0.010
(Equiv. 0.25 in.)
Roller Width (C)
12.700
mm
+/- 0.13
(Equiv. 0.5 in.)
Overall Width (D) +0.13/-0.26
14.288
mm
Approx Washer OD (E) Ref.
15.9
mm
Oil Hole Diameter (F)
2.38
mm
Urethane Coated Roller Followers - 25.4x6.35x12.7 mm - Polyurethane Coated
Material: Polyurethane Coated
Deleted Item. Available while stocks last.
Part Number: CCF-1215RS (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$82.46 AUD
$197.90 AUD $82.46 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Outside Diameter (A) Bore (B) Roller Width (C) Overall Width (D) +0.13/-0.26 Indicative
Urethane Coated Roller Followers - 25.4x6.35x12.7 mm - Polyurethane Coated
Outside Diameter (A)
25.400
mm
+/- 0.13
(Equiv. 1 in.)
Bore (B)
6.350
mm
+ 0.005 / - 0.010
(Equiv. 0.25 in.)
Roller Width (C)
12.700
mm
+/- 0.13
(Equiv. 0.5 in.)
Overall Width (D) +0.13/-0.26
14.288
mm
Urethane Coated Roller Followers - 25.4x6.35x12.7 mm - Polyurethane Coated
Material: Polyurethane Coated    Approx Washer OD (E) Ref.: 15.9 mm    Oil Hole Diameter (F): 2.38 mm
Deleted Item. Available while stocks last.
Part Number: CCF-1215RS (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$82.46 AUD
$197.90 AUD $82.46 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
