Rod Ends - Male - Plastic

Rod Ends -> Male -> Plastic

There are 3 products in the sub-categories of Rod Ends - Male - Plastic. Browse the Rod Ends - Male - Plastic products table.

Category Details

A selection of Plastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints

  • An expanded range may be available on special order. Please enquire.
  • Dimensions not shown are available on request.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Rod Ends - Male - Plastic category on the MBA Minibearings main store.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Head Width (W) Eye Width (W1) Indicative

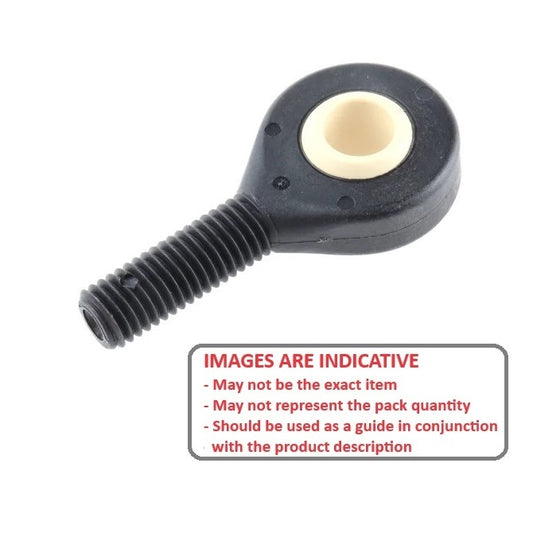

Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Plastic Rod End
Eye Size (d1)
4.763
mm

(Equiv. 0.188 in.)
Overall Length (L)
39.70
mm

(Equiv. 1.563 in.)
Thread Size
10-32 UNF Right

Min. Thread Length (l2)
19.05
mm
Head Width (W)
5.94
mm
Eye Width (W1)
7.92
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Plastic
Material: Plastic    Head Diameter (D): 15.88 mm    Centre Height (l1): 31.75 mm    Grease Nipple: No    Max Angle of Pivot: 25 °    Max Torque Strength: 3.00 n.m
Part Number: REM-048-R-PP (Each)
2 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$12.68 AUD
$12.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Indicative
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Plastic Rod End
Eye Size (d1)
4.763
mm

(Equiv. 0.188 in.)
Overall Length (L)
39.70
mm

(Equiv. 1.563 in.)
Thread Size
10-32 UNF Right

Min. Thread Length (l2)
19.05
mm
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Plastic
Material: Plastic    Head Width (W): 5.94 mm    Eye Width (W1): 7.92 mm    Head Diameter (D): 15.88 mm    Centre Height (l1): 31.75 mm    Grease Nipple: No    Max Angle of Pivot: 25 °    Max Torque Strength: 3.00 n.m
Part Number: REM-048-R-PP (Each)
2 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$12.68 AUD
$12.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.

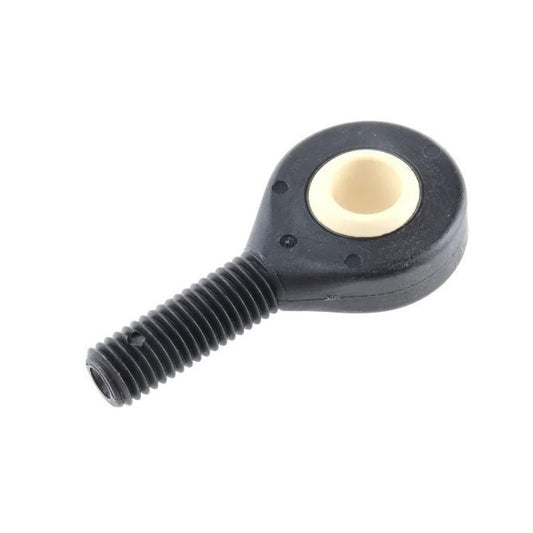

Male Rod Ends - 5x42 mm - M5x0.8 Right - Plastic Rod End
Eye Size (d1)
5.000
mm

(Equiv. 0.197 in.)
Overall Length (L)
42.00
mm

(Equiv. 1.654 in.)
Thread Size
M5x0.8 Right

Min. Thread Length (l2)
19.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 5x42 mm - M5x0.8 Right - Plastic
Material: Plastic    Head Diameter (D): 18.00 mm    Centre Height (l1): 33.00 mm    Grease Nipple: No    Max Angle of Pivot: 30 °    Max Torque Strength: 5.00 n.m
Part Number: REM-050-R-PP (Each)
13 Available Now | Further orders can be expected around Mon, Feb 09, 2026
$13.23 AUD
$13.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 13 available can be backordered.
Male Rod Ends - 5x42 mm - M5x0.8 Right - Plastic Rod End
Eye Size (d1)
5.000
mm

(Equiv. 0.197 in.)
Overall Length (L)
42.00
mm

(Equiv. 1.654 in.)
Thread Size
M5x0.8 Right

Min. Thread Length (l2)
19.00
mm
Male Rod Ends - 5x42 mm - M5x0.8 Right - Plastic
Material: Plastic    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter (D): 18.00 mm    Centre Height (l1): 33.00 mm    Grease Nipple: No    Max Angle of Pivot: 30 °    Max Torque Strength: 5.00 n.m
Part Number: REM-050-R-PP (Each)
13 Available Now | Further orders can be expected around Mon, Feb 09, 2026
$13.23 AUD
$13.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

13 Available Now. Backorder if more than 13.
Male Rod Ends - 16x88 mm - M16x1.5 Right - Plastic Rod End
Eye Size (d1)
16.000
mm

(Equiv. 0.63 in.)
Overall Length (L)
88.00
mm

(Equiv. 3.465 in.)
Thread Size
M16x1.5 Right

Min. Thread Length (l2)
37.00
mm
Head Width (W)
15.00
mm
Eye Width (W1)
21.00
mm
Male Rod Ends - 16x88 mm - M16x1.5 Right - Plastic
Material: Plastic    Head Diameter (D): 42.00 mm    Centre Height (l1): 66.00 mm    Grease Nipple: No    Max Angle of Pivot: 23 °    Max Torque Strength: 40.00 n.m
Part Number: REM-160-R-PP-F (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.14 AUD
$31.92 AUD $19.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Male Rod Ends - 16x88 mm - M16x1.5 Right - Plastic Rod End
Eye Size (d1)
16.000
mm

(Equiv. 0.63 in.)
Overall Length (L)
88.00
mm

(Equiv. 3.465 in.)
Thread Size
M16x1.5 Right

Min. Thread Length (l2)
37.00
mm
Male Rod Ends - 16x88 mm - M16x1.5 Right - Plastic
Material: Plastic    Head Width (W): 15.00 mm    Eye Width (W1): 21.00 mm    Head Diameter (D): 42.00 mm    Centre Height (l1): 66.00 mm    Grease Nipple: No    Max Angle of Pivot: 23 °    Max Torque Strength: 40.00 n.m
Part Number: REM-160-R-PP-F (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.14 AUD
$31.92 AUD $19.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
