Retaining Rings - Tolerance

6 Products in this selection
  • Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
  • Allows looser tolerances of components.
  • Ideal for mounting ball bearings.
  • Useful for salvaging worn parts.
  • Permits low cost assembly by eliminating the need for conventional fasteners.
  • Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - Tolerance.
Inner Part OD (d) Housing ID (D) Ring Width (B) Inner Part OD (dT) mm Outer Part ID (DT) mm Max. Design Torque Indicative
4.775 to 4.750
mm 		5.740 to 5.690
mm 		12.70
mm 		5.613 to 5.563
For Torque Transfer 		0.79
N.m 		1061323 | TR-048-057-127-C --- Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon
Material: Spring Steel High Carbon    Style: For bearing OD    Max. Radial Load: 222 N    Max. Design Thrust: 334 N    To Suit OD of Bearing: R1, R133
Part Number: TR-048-057-127-C Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon
24 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$3.80 AUD
$7.22 AUD $3.80 AUD
Each
Inner Part OD (d) Housing ID (D) Ring Width (B) Inner Part OD (dT) mm Indicative
4.775 to 4.750
mm 		5.740 to 5.690
mm 		12.70
mm 		1061323 | TR-048-057-127-C --- Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon
Material: Spring Steel High Carbon    Outer Part ID (DT) mm: 5.613 to 5.563 For Torque Transfer    Max. Design Torque: 0.79 N.m    Style: For bearing OD    Max. Radial Load: 222 N    Max. Design Thrust: 334 N    To Suit OD of Bearing: R1, R133
Part Number: TR-048-057-127-C Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon
24 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$3.80 AUD
$7.22 AUD $3.80 AUD
Each
9.50 to 9.48
mm 		10.97 to 10.90
mm 		4.00
mm 		10.82 to 10.77
For Torque Transfer 		0.90

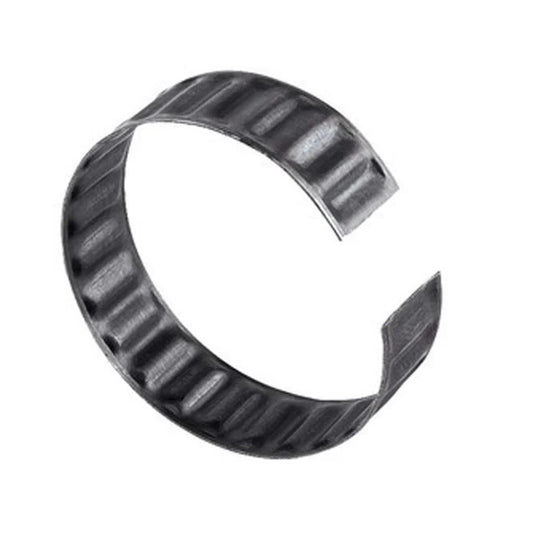

N.m 		1086206 | TR-095-110-040-S3 --- Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 180 N    Max. Design Thrust: 200 N    To Suit OD of Bearing: R2
Part Number: TR-095-110-040-S3 Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$93.95 AUD
$93.95 AUD
Each
9.50 to 9.48
mm 		10.97 to 10.90
mm 		4.00
mm 		1086206 | TR-095-110-040-S3 --- Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Outer Part ID (DT) mm: 10.82 to 10.77 For Torque Transfer    Max. Design Torque: 0.90 N.m    Style: For bearing OD    Max. Radial Load: 180 N    Max. Design Thrust: 200 N    To Suit OD of Bearing: R2
Part Number: TR-095-110-040-S3 Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$93.95 AUD
$93.95 AUD
Each
View the product page first if you are unsure.
12.700 to 12.695
mm 		14.10 to 14.17
mm 		5.00
mm 		1102616 | TR-127-141-050-S3 --- Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 25 N    To Suit OD of Bearing: 12.7mm (R3, R3C)
Part Number: TR-127-141-050-S3 Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$50.14 AUD
$92.96 AUD $50.14 AUD
Each
12.700 to 12.695
mm 		14.10 to 14.17
mm 		5.00
mm 		1102616 | TR-127-141-050-S3 --- Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 25 N    To Suit OD of Bearing: 12.7mm (R3, R3C)
Part Number: TR-127-141-050-S3 Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$50.14 AUD
$92.96 AUD $50.14 AUD
Each
View the product page first if you are unsure.
22.000 to 21.995
mm 		23.90 to 23.97
mm 		7.00
mm 		1128101 | TR-220-239-070-S3 --- Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 60 N    To Suit OD of Bearing: 22mm (608, 627)
Part Number: TR-220-239-070-S3 Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$56.86 AUD
$105.82 AUD $56.86 AUD
Each
22.000 to 21.995
mm 		23.90 to 23.97
mm 		7.00
mm 		1128101 | TR-220-239-070-S3 --- Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 60 N    To Suit OD of Bearing: 22mm (608, 627)
Part Number: TR-220-239-070-S3 Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$56.86 AUD
$105.82 AUD $56.86 AUD
Each
View the product page first if you are unsure.
22.225 to 22.174
mm 		24.206 to 24.130
mm 		6.35
mm 		23.978 to 23.901
For Torque Transfer 		11.30
N.m 		1129038 | TR-222-242-064-S3 --- Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 2580 N    Max. Design Thrust: 1023 N    To Suit OD of Bearing: R6
Part Number: TR-222-242-064-S3 Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$106.86 AUD
$106.86 AUD
Each
22.225 to 22.174
mm 		24.206 to 24.130
mm 		6.35
mm 		1129038 | TR-222-242-064-S3 --- Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Outer Part ID (DT) mm: 23.978 to 23.901 For Torque Transfer    Max. Design Torque: 11.30 N.m    Style: For bearing OD    Max. Radial Load: 2580 N    Max. Design Thrust: 1023 N    To Suit OD of Bearing: R6
Part Number: TR-222-242-064-S3 Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$106.86 AUD
$106.86 AUD
Each
View the product page first if you are unsure.
28.575 to 28.524
mm 		30.556 to 30.455
mm 		6.35
mm 		30.277 to 30.175
For Torque Transfer 		19.21
N.m 		1139640 | TR-286-306-064-S3 --- Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Style: For bearing OD    Max. Radial Load: 3203 N    Max. Design Thrust: 1334 N    To Suit OD of Bearing: R8
Part Number: TR-286-306-064-S3 Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$136.59 AUD
$136.59 AUD
Each
28.575 to 28.524
mm 		30.556 to 30.455
mm 		6.35
mm 		1139640 | TR-286-306-064-S3 --- Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8)    Outer Part ID (DT) mm: 30.277 to 30.175 For Torque Transfer    Max. Design Torque: 19.21 N.m    Style: For bearing OD    Max. Radial Load: 3203 N    Max. Design Thrust: 1334 N    To Suit OD of Bearing: R8
Part Number: TR-286-306-064-S3 Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$136.59 AUD
$136.59 AUD
Each
View the product page first if you are unsure.
