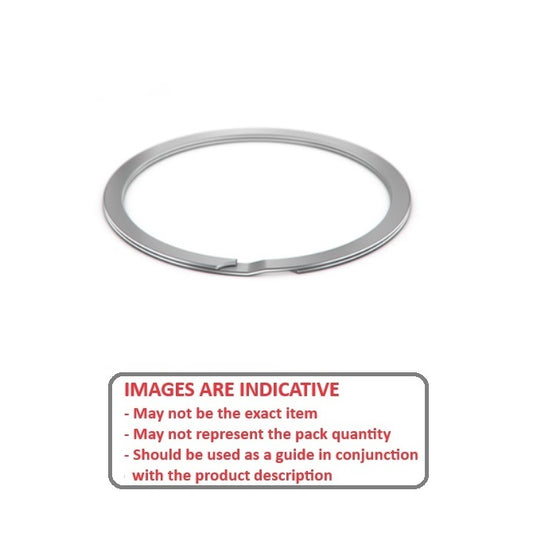

Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel

1 Item Available
  • Includes Series AMI / WHT / Spirolox RRT - Stainless Steel.
  • Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
  • This two/three turn design is easier to install than the heavy duty RRN option.
  • Equivalent to Associated Spring: AMI, Smalley: WHT, Spirolox and Ramsey: RRT
Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
31.75
mm 		1.27
mm
+/-0.05 		33.53
mm 		33.72
mm
+0.38/-0.00 		2.36
mm
+/-0.10 		1.47
mm
+/-0.10 		1143859 | RRT-125-S02 --- Spiral - 31.75 mm x 1.27 mm x 33.53 mm
Material: 302 Stainless Steel    Approx. Loose Clip ID: 29 +/-0.05   Groove Depth (d): 0.89
Part Number: RRT-125-S02 Spiral - 31.75 mm x 1.27 mm x 33.53 mm / Retaining Rings
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Jan 19, 2025
$7.68 AUD
$7.68 AUD
Each
View the product page first if you are unsure.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
31.75
mm 		1.27
mm
+/-0.05 		33.53
mm 		33.72
mm
+0.38/-0.00 		1143859 | RRT-125-S02 --- Spiral - 31.75 mm x 1.27 mm x 33.53 mm
Material: 302 Stainless Steel    Radial Wall (S): 2.36 mm +/-0.10    Groove Width (W): 1.47 mm +/-0.10   Approx. Loose Clip ID: 29 +/-0.05   Groove Depth (d): 0.89
Part Number: RRT-125-S02 Spiral - 31.75 mm x 1.27 mm x 33.53 mm / Retaining Rings
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Jan 19, 2025
$7.68 AUD
$7.68 AUD
Each
View the product page first if you are unsure ->
