20 Products in this selection
This is a combined category of Medium-Heavy Duty Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

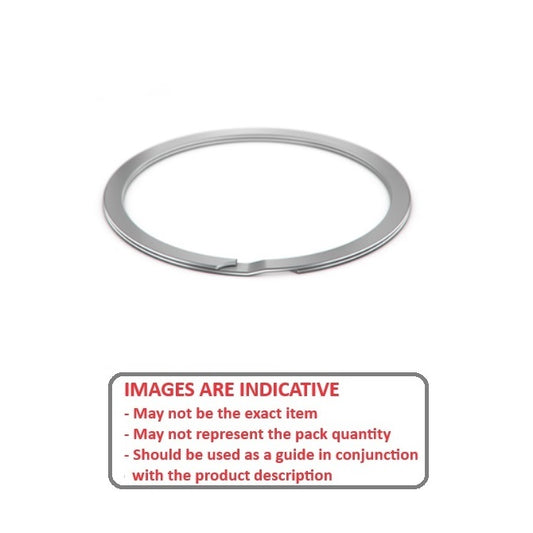

Indicative Image |
---|---|---|---|---|---|---|
22.23
mm |
1.07
mm +/- 0.05 |
23.42
mm |
23.61
mm + 0.33 / - 0.00 |
1.65
mm +/- 0.10 |
1.21
mm +/- 0.08 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 20.31 +/- 0.04
Groove Depth (d): 0.61
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-087 (6 Pcs) Internal Retaining Rings - 22.23 mm x 1.07 mm x 23.42 mm
17 units (102 pcs) Available Now | Further orders can be expected around Sun, Apr 06, 2025 Regular price
$13.41 AUD
Regular price
Unit price
/
per
Per 6
|
||||||
Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
22.23
mm |
1.07
mm +/- 0.05 |
23.42
mm |
23.61
mm + 0.33 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 20.31 +/- 0.04
Groove Depth (d): 0.61
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-087 (6 Pcs) Internal Retaining Rings - 22.23 mm x 1.07 mm x 23.42 mm
17 units (102 pcs) Available Now | Further orders can be expected around Sun, Apr 06, 2025 Regular price
$13.41 AUD
Regular price
Unit price
/
per
Per 6
|
||||||
|
||||||
23.83
mm |
1.07
mm +/- 0.05 |
25.12
mm |
25.31
mm + 0.33 / - 0.00 |
1.91
mm +/- 0.11 |
1.21
mm +/- 0.08 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 21.49 +/- 0.04
Groove Depth (d): 0.66
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-093 (6 Pcs) Internal Retaining Rings - 23.83 mm x 1.07 mm x 25.12 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$13.14 AUD
Regular price
Unit price
/
per
Per 6
|
||||||
23.83
mm |
1.07
mm +/- 0.05 |
25.12
mm |
25.31
mm + 0.33 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 1.91 mm +/- 0.11
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 21.49 +/- 0.04
Groove Depth (d): 0.66
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-093 (6 Pcs) Internal Retaining Rings - 23.83 mm x 1.07 mm x 25.12 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$13.14 AUD
Regular price
Unit price
/
per
Per 6
|
||||||
|
||||||
34.93
mm |
1.27
mm +/- 0.05 |
36.83
mm |
37.10
mm + 0.38 / - 0.00 |
2.49
mm +/- 0.10 |
1.47
mm +/- 0.10 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 32.12 +/- 0.05
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-137 (4 Pcs) Internal Retaining Rings - 34.93 mm x 1.27 mm x 36.83 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$12.23 AUD
Regular price
Unit price
/
per
Per 4
|
||||||
34.93
mm |
1.27
mm +/- 0.05 |
36.83
mm |
37.10
mm + 0.38 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 2.49 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 32.12 +/- 0.05
Groove Depth (d): 0.97
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-137 (4 Pcs) Internal Retaining Rings - 34.93 mm x 1.27 mm x 36.83 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$12.23 AUD
Regular price
Unit price
/
per
Per 4
|
||||||
|
||||||
38.10
mm |
1.27
mm +/- 0.05 |
40.13
mm |
40.46
mm + 0.38 / - 0.00 |
2.74
mm +/- 0.10 |
1.47
mm +/- 0.10 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 34.98 +/- 0.05
Groove Depth (d): 1.02
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-150 Internal Retaining Rings - 38.1 mm x 1.27 mm x 40.13 mm
31 Available Now | Further orders can be expected around Tue, Mar 25, 2025 Regular price
$4.05 AUD
Regular price
Unit price
/
per
Each
|
||||||
38.10
mm |
1.27
mm +/- 0.05 |
40.13
mm |
40.46
mm + 0.38 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 2.74 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 34.98 +/- 0.05
Groove Depth (d): 1.02
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-150 Internal Retaining Rings - 38.1 mm x 1.27 mm x 40.13 mm
31 Available Now | Further orders can be expected around Tue, Mar 25, 2025 Regular price
$4.05 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
42.88
mm |
1.58
mm +/- 0.08 |
45.22
mm |
45.54
mm + 0.51 / - 0.00 |
3.00
mm +/- 0.10 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 39.54 +/- 0.05
Groove Depth (d): 1.17
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-168 (28 Pcs) Internal Retaining Rings - 42.88 mm x 1.58 mm x 45.22 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.32 AUD
Regular price
Unit price
/
per
Per 28
|
||||||
42.88
mm |
1.58
mm +/- 0.08 |
45.22
mm |
45.54
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.00 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 39.54 +/- 0.05
Groove Depth (d): 1.17
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-168 (28 Pcs) Internal Retaining Rings - 42.88 mm x 1.58 mm x 45.22 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.32 AUD
Regular price
Unit price
/
per
Per 28
|
||||||
|
||||||
44.45
mm |
1.58
mm +/- 0.08 |
46.87
mm |
47.21
mm + 0.51 / - 0.00 |
3.00
mm +/- 0.10 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 41.21 +/- 0.05
Groove Depth (d): 1.22
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-175 (166 Pcs) Internal Retaining Rings - 44.45 mm x 1.58 mm x 46.87 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Apr 06, 2025 Regular price
$985.23 AUD
Regular price
Unit price
/
per
Per 166
|
||||||
44.45
mm |
1.58
mm +/- 0.08 |
46.87
mm |
47.21
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.00 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 41.21 +/- 0.05
Groove Depth (d): 1.22
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-175 (166 Pcs) Internal Retaining Rings - 44.45 mm x 1.58 mm x 46.87 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Apr 06, 2025 Regular price
$985.23 AUD
Regular price
Unit price
/
per
Per 166
|
||||||
|
||||||
46.02
mm |
1.58
mm +/- 0.08 |
48.52
mm |
48.87
mm + 0.51 / - 0.00 |
3.13
mm +/- 0.11 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 42.61 +/- 0.05
Groove Depth (d): 1.24
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-181 (29 Pcs) Internal Retaining Rings - 46.02 mm x 1.58 mm x 48.52 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$23.14 AUD
Regular price
Unit price
/
per
Per 29
|
||||||
46.02
mm |
1.58
mm +/- 0.08 |
48.52
mm |
48.87
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.13 mm +/- 0.11
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 42.61 +/- 0.05
Groove Depth (d): 1.24
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-181 (29 Pcs) Internal Retaining Rings - 46.02 mm x 1.58 mm x 48.52 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$23.14 AUD
Regular price
Unit price
/
per
Per 29
|
||||||
|
||||||
47.63
mm |
1.58
mm +/- 0.08 |
50.17
mm |
50.58
mm + 0.51 / - 0.00 |
3.25
mm +/- 0.10 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 44.08 +/- 0.05
Groove Depth (d): 1.27
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-187 (28 Pcs) Internal Retaining Rings - 47.63 mm x 1.58 mm x 50.17 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$10.23 AUD
Regular price
Unit price
/
per
Per 28
|
||||||
47.63
mm |
1.58
mm +/- 0.08 |
50.17
mm |
50.58
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.25 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 44.08 +/- 0.05
Groove Depth (d): 1.27
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-187 (28 Pcs) Internal Retaining Rings - 47.63 mm x 1.58 mm x 50.17 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$10.23 AUD
Regular price
Unit price
/
per
Per 28
|
||||||
|
||||||
49.23
mm |
1.58
mm +/- 0.08 |
51.82
mm |
52.28
mm + 0.51 / - 0.00 |
3.25
mm +/- 0.10 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 45.78 +/- 0.05
Groove Depth (d): 1.30
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-193 (8 Pcs) Internal Retaining Rings - 49.23 mm x 1.58 mm x 51.82 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.68 AUD
Regular price
Unit price
/
per
Per 8
|
||||||
49.23
mm |
1.58
mm +/- 0.08 |
51.82
mm |
52.28
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.25 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 45.78 +/- 0.05
Groove Depth (d): 1.30
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-193 (8 Pcs) Internal Retaining Rings - 49.23 mm x 1.58 mm x 51.82 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.68 AUD
Regular price
Unit price
/
per
Per 8
|
||||||
|
||||||
50.80
mm |
1.58
mm +/- 0.08 |
53.60
mm |
53.95
mm + 0.51 / - 0.00 |
3.51
mm +/- 0.11 |
1.78
mm +/- 0.13 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 46.93 +/- 0.05
Groove Depth (d): 1.40
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-200 Internal Retaining Rings - 50.8 mm x 1.58 mm x 53.6 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.95 AUD
Regular price
Unit price
/
per
Each
|
||||||
50.80
mm |
1.58
mm +/- 0.08 |
53.60
mm |
53.95
mm + 0.51 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.51 mm +/- 0.11
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 46.93 +/- 0.05
Groove Depth (d): 1.40
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-200 Internal Retaining Rings - 50.8 mm x 1.58 mm x 53.6 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 25, 2025 Regular price
$7.95 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
57.15
mm |
1.99
mm +/- 0.08 |
60.20
mm |
60.69
mm + 0.64 / - 0.00 |
3.58
mm +/- 0.10 |
2.25
mm +/- 0.15 |
![]() |
Material: Spring Steel
Approx. Loose Clip ID: 53.53 +/- 0.06
Groove Depth (d): 1.52
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
Part Number: RRT-225 (2 Pcs) Internal Retaining Rings - 57.15 mm x 1.99 mm x 60.2 mm
6 units (12 pcs) Available Now | Further orders can be expected around Sun, Apr 06, 2025 Regular price
$17.41 AUD
Regular price
Unit price
/
per
Per 2
|
||||||
57.15
mm |
1.99
mm +/- 0.08 |
60.20
mm |
60.69
mm + 0.64 / - 0.00 |
![]() |
||
Material: Spring Steel
Radial Wall (S): 3.58 mm +/- 0.10
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip ID: 53.53 +/- 0.06
Groove Depth (d): 1.52
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel |
||||||
