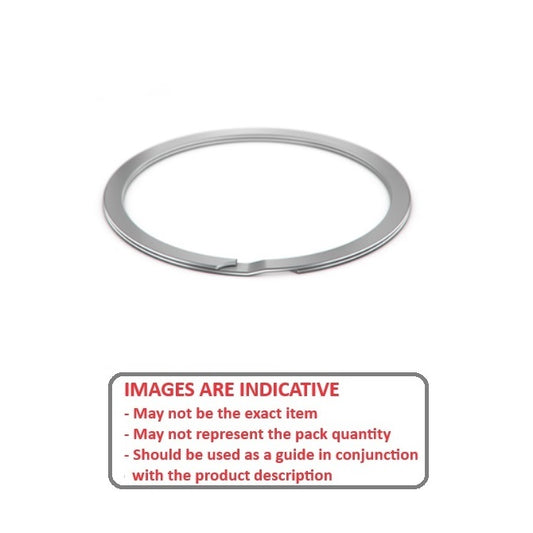

Collection: Retaining Rings - Internal - Spiral Rings - Medium Duty

Retaining Rings (With Images)

Internal

Spiral Rings

Medium-Heavy
Medium-Heavy Duty

56 Products in this selection

This is a combined category of products from Medium Duty Spiral Rings Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
12.70 mm	0.64 mm +/-0.06	13.35 mm	13.26 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 10.98 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Spiral - 12.7 mm x 0.64 mm x 13.35 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Per 5 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
12.70 mm	0.64 mm +/-0.06	13.35 mm	13.26 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 10.98 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Spiral - 12.7 mm x 0.64 mm x 13.35 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-050 (5 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 13.35 mm Spring Steel RR-050 (5 Pcs) --- Spiral - 12.7 mm x 0.64 mm x 13.35 mm Spring Steel Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Out of stock! Backorder Now
14.29 mm	0.64 mm +/-0.06	14.70 mm	14.92 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 12.64 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Spiral - 14.29 mm x 0.64 mm x 14.7 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 5 View the product page first if you are unsure.
14.29 mm	0.64 mm +/-0.06	14.70 mm	14.92 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 12.64 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Spiral - 14.29 mm x 0.64 mm x 14.7 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-056 (5 Pcs) --- Spiral - 14.29 mm x 0.64 mm x 14.7 mm Spring Steel RR-056 (5 Pcs) --- Spiral - 14.29 mm x 0.64 mm x 14.7 mm Spring Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
15.09 mm	0.64 mm +/-0.06	15.72 mm	15.75 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 13.47 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (98 Pcs) Spiral - 15.09 mm x 0.64 mm x 15.72 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Per 98 View the product page first if you are unsure.
15.09 mm	0.64 mm +/-0.06	15.72 mm	15.75 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 13.47 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (98 Pcs) Spiral - 15.09 mm x 0.64 mm x 15.72 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Per 98 View the product page first if you are unsure.
RR-059 (98 Pcs) --- Spiral - 15.09 mm x 0.64 mm x 15.72 mm Spring Steel RR-059 (98 Pcs) --- Spiral - 15.09 mm x 0.64 mm x 15.72 mm Spring Steel Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.64 mm +/-0.06	16.53 mm	16.58 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 14.3 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings 141 units (282 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 2 View the product page first if you are unsure.
15.88 mm	0.64 mm +/-0.06	16.53 mm	16.58 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 14.3 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings 141 units (282 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-062 (2 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm Spring Steel RR-062 (2 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm Spring Steel Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per 141 Available Now

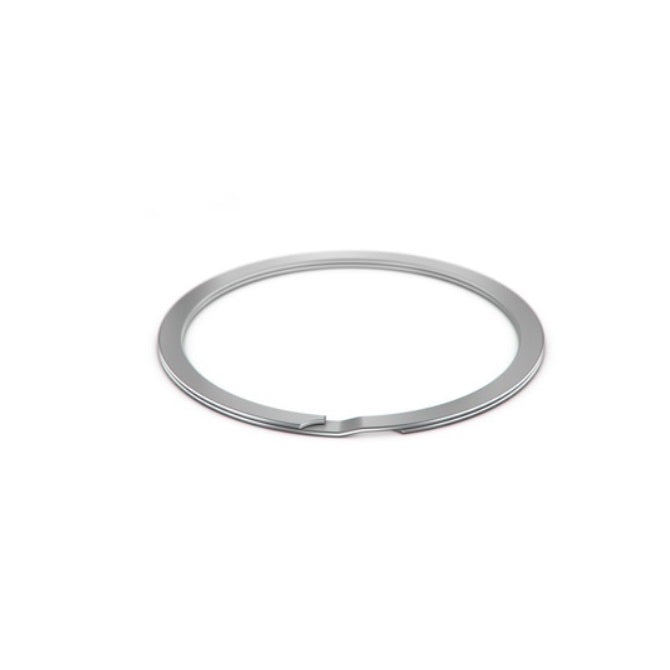

15.88 mm	0.64 mm +/-0.06	16.53 mm	16.58 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 14.3 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings 48 units (480 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10 View the product page first if you are unsure.
15.88 mm	0.64 mm +/-0.06	16.53 mm	16.58 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 14.3 +/-0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Spiral - 15.88 mm x 0.64 mm x 16.53 mm / Retaining Rings 48 units (480 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10 View the product page first if you are unsure.
RR-062-S02 (10 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm 302 Stainless Steel RR-062-S02 (10 Pcs) --- Spiral - 15.88 mm x 0.64 mm x 16.53 mm 302 Stainless Steel Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 48 Available Now
17.45 mm	0.64 mm +/-0.06	18.11 mm	18.22 mm +0.33/-0.00	1.14 mm +/-0.10	0.80 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 15.94 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Spiral - 17.45 mm x 0.64 mm x 18.11 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 100 View the product page first if you are unsure.
17.45 mm	0.64 mm +/-0.06	18.11 mm	18.22 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 0.80 mm +/-0.05 Approx. Loose Clip ID: 15.94 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Spiral - 17.45 mm x 0.64 mm x 18.11 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 100 View the product page first if you are unsure.
RR-068 (100 Pcs) --- Spiral - 17.45 mm x 0.64 mm x 18.11 mm Spring Steel RR-068 (100 Pcs) --- Spiral - 17.45 mm x 0.64 mm x 18.11 mm Spring Steel Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.79 mm +/-0.05	19.86 mm	19.89 mm +0.33/-0.00	1.65 mm +/-0.10	0.95 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 16.59 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Spiral - 19.05 mm x 0.79 mm x 19.86 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Per 38 View the product page first if you are unsure.
19.05 mm	0.79 mm +/-0.05	19.86 mm	19.89 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.05 Approx. Loose Clip ID: 16.59 +/-0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Spiral - 19.05 mm x 0.79 mm x 19.86 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Per 38 View the product page first if you are unsure.
RR-075-S02 (38 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 19.86 mm 302 Stainless Steel RR-075-S02 (38 Pcs) --- Spiral - 19.05 mm x 0.79 mm x 19.86 mm 302 Stainless Steel Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Out of stock! Backorder Now
22.00 mm	0.79 mm +/-0.05	22.94 mm	22.97 mm +0.33/-0.00	1.65 mm +/-0.10	0.95 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 19.67 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Spiral - 22 mm x 0.79 mm x 22.94 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Per 6 View the product page first if you are unsure.
22.00 mm	0.79 mm +/-0.05	22.94 mm	22.97 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.08 Approx. Loose Clip ID: 19.67 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Spiral - 22 mm x 0.79 mm x 22.94 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Per 6 View the product page first if you are unsure.
RR-086 (6 Pcs) --- Spiral - 22 mm x 0.79 mm x 22.94 mm Spring Steel RR-086 (6 Pcs) --- Spiral - 22 mm x 0.79 mm x 22.94 mm Spring Steel Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
22.23 mm	0.79 mm +/-0.05	23.17 mm	23.21 mm +0.33/-0.00	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 19.91 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Spiral - 22.23 mm x 0.79 mm x 23.17 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Per 6 View the product page first if you are unsure.
22.23 mm	0.79 mm +/-0.05	23.17 mm	23.21 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip ID: 19.91 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Spiral - 22.23 mm x 0.79 mm x 23.17 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Per 6 View the product page first if you are unsure.
RR-087 (6 Pcs) --- Spiral - 22.23 mm x 0.79 mm x 23.17 mm Spring Steel RR-087 (6 Pcs) --- Spiral - 22.23 mm x 0.79 mm x 23.17 mm Spring Steel Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
23.83 mm	0.79 mm +/-0.05	24.77 mm	24.88 mm +0.33/-0.00	1.65 mm +/-0.10	0.95 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 21.58 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Spiral - 23.83 mm x 0.79 mm x 24.77 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 40 View the product page first if you are unsure.
23.83 mm	0.79 mm +/-0.05	24.77 mm	24.88 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 0.95 mm +/-0.07 Approx. Loose Clip ID: 21.58 +/-0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Spiral - 23.83 mm x 0.79 mm x 24.77 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 40 View the product page first if you are unsure.
RR-093 (40 Pcs) --- Spiral - 23.83 mm x 0.79 mm x 24.77 mm Spring Steel RR-093 (40 Pcs) --- Spiral - 23.83 mm x 0.79 mm x 24.77 mm Spring Steel Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
25.40 mm	0.94 mm +/-0.05	26.50 mm	26.52 mm +0.33/-0.00	1.91 mm +/-0.11	1.11 mm +/-0.07
Material: 302 Stainless Steel Approx. Loose Clip ID: 22.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings 80 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each View the product page first if you are unsure.
25.40 mm	0.94 mm +/-0.05	26.50 mm	26.52 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.07 Approx. Loose Clip ID: 22.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings 80 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each View the product page first if you are unsure.
RR-100-S02 --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm 302 Stainless Steel RR-100-S02 --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm 302 Stainless Steel Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 80 Available Now
25.40 mm	0.94 mm +/-0.05	26.50 mm	26.52 mm +0.33/-0.00	1.91 mm +/-0.11	1.11 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 22.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings 111 units (222 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
25.40 mm	0.94 mm +/-0.05	26.50 mm	26.52 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.07 Approx. Loose Clip ID: 22.7 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Spiral - 25.4 mm x 0.94 mm x 26.5 mm / Retaining Rings 111 units (222 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-100 (2 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm Spring Steel RR-100 (2 Pcs) --- Spiral - 25.4 mm x 0.94 mm x 26.5 mm Spring Steel Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 111 Available Now
25.98 mm	0.94 mm +/-0.05	27.08 mm	27.12 mm +0.33/-0.00	1.91 mm +/-0.11	1.11 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 23.3 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Spiral - 25.98 mm x 0.94 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each View the product page first if you are unsure.
25.98 mm	0.94 mm +/-0.05	27.08 mm	27.12 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.07 Approx. Loose Clip ID: 23.3 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Spiral - 25.98 mm x 0.94 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each View the product page first if you are unsure.
RR-102 --- Spiral - 25.98 mm x 0.94 mm x 27.08 mm Spring Steel RR-102 --- Spiral - 25.98 mm x 0.94 mm x 27.08 mm Spring Steel Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Out of stock! Backorder Now
26.97 mm	0.94 mm +/-0.05	28.04 mm	28.16 mm +0.38/-0.00	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 24.34 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Spiral - 26.97 mm x 0.94 mm x 28.04 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 9 View the product page first if you are unsure.
26.97 mm	0.94 mm +/-0.05	28.04 mm	28.16 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip ID: 24.34 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Spiral - 26.97 mm x 0.94 mm x 28.04 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 9 View the product page first if you are unsure.
RR-106 (9 Pcs) --- Spiral - 26.97 mm x 0.94 mm x 28.04 mm Spring Steel RR-106 (9 Pcs) --- Spiral - 26.97 mm x 0.94 mm x 28.04 mm Spring Steel Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Out of stock! Backorder Now
28.58 mm	0.94 mm +/-0.05	29.64 mm	29.84 mm +0.38/-0.00	1.91 mm +/-0.11	1.11 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 26.02 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Spiral - 28.58 mm x 0.94 mm x 29.64 mm / Retaining Rings 76 units (152 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 2 View the product page first if you are unsure.
28.58 mm	0.94 mm +/-0.05	29.64 mm	29.84 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.11 mm +/-0.10 Approx. Loose Clip ID: 26.02 +/-0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Spiral - 28.58 mm x 0.94 mm x 29.64 mm / Retaining Rings 76 units (152 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-112 (2 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 29.64 mm Spring Steel RR-112 (2 Pcs) --- Spiral - 28.58 mm x 0.94 mm x 29.64 mm Spring Steel Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per 76 Available Now
30.94 mm	1.09 mm +/-0.05	32.16 mm	32.30 mm +0.38/-0.00	2.16 mm +/-0.10	1.27 mm +/-0.11
Material: Spring Steel Approx. Loose Clip ID: 27.98 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Spiral - 30.94 mm x 1.09 mm x 32.16 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 27 View the product page first if you are unsure.
30.94 mm	1.09 mm +/-0.05	32.16 mm	32.30 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.11 Approx. Loose Clip ID: 27.98 +/-0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Spiral - 30.94 mm x 1.09 mm x 32.16 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 27 View the product page first if you are unsure.
RR-121 (27 Pcs) --- Spiral - 30.94 mm x 1.09 mm x 32.16 mm Spring Steel RR-121 (27 Pcs) --- Spiral - 30.94 mm x 1.09 mm x 32.16 mm Spring Steel Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.09 mm +/-0.05	32.97 mm	33.15 mm +0.38/-0.00	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 28.83 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Spiral - 31.75 mm x 1.09 mm x 32.97 mm / Retaining Rings 29 units (290 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 10 View the product page first if you are unsure.
31.75 mm	1.09 mm +/-0.05	32.97 mm	33.15 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip ID: 28.83 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Spiral - 31.75 mm x 1.09 mm x 32.97 mm / Retaining Rings 29 units (290 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 10 View the product page first if you are unsure.
RR-125 (10 Pcs) --- Spiral - 31.75 mm x 1.09 mm x 32.97 mm Spring Steel RR-125 (10 Pcs) --- Spiral - 31.75 mm x 1.09 mm x 32.97 mm Spring Steel Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 29 Available Now
33.34 mm	1.09 mm +/-0.05	34.54 mm	34.81 mm +0.38/-0.00	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 30.49 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Spiral - 33.34 mm x 1.09 mm x 34.54 mm / Retaining Rings 19 units (95 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 5 View the product page first if you are unsure.
33.34 mm	1.09 mm +/-0.05	34.54 mm	34.81 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip ID: 30.49 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Spiral - 33.34 mm x 1.09 mm x 34.54 mm / Retaining Rings 19 units (95 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-131 (5 Pcs) --- Spiral - 33.34 mm x 1.09 mm x 34.54 mm Spring Steel RR-131 (5 Pcs) --- Spiral - 33.34 mm x 1.09 mm x 34.54 mm Spring Steel Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 19 Available Now
34.11 mm	1.09 mm +/-0.05	35.43 mm	35.61 mm +0.38/-0.00	2.16 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 31.29 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Spiral - 34.11 mm x 1.09 mm x 35.43 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Per 19 View the product page first if you are unsure.
34.11 mm	1.09 mm +/-0.05	35.43 mm	35.61 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip ID: 31.29 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Spiral - 34.11 mm x 1.09 mm x 35.43 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Per 19 View the product page first if you are unsure.
RR-134 (19 Pcs) --- Spiral - 34.11 mm x 1.09 mm x 35.43 mm Spring Steel RR-134 (19 Pcs) --- Spiral - 34.11 mm x 1.09 mm x 35.43 mm Spring Steel Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Out of stock! Backorder Now
34.80 mm	1.09 mm +/-0.05	36.24 mm	36.33 mm +0.38/-0.00	2.41 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 31.51 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Spiral - 34.8 mm x 1.09 mm x 36.24 mm / Retaining Rings 4900 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
34.80 mm	1.09 mm +/-0.05	36.24 mm	36.33 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip ID: 31.51 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Spiral - 34.8 mm x 1.09 mm x 36.24 mm / Retaining Rings 4900 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
RR-137 --- Spiral - 34.8 mm x 1.09 mm x 36.24 mm Spring Steel RR-137 --- Spiral - 34.8 mm x 1.09 mm x 36.24 mm Spring Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 4900 Available Now
36.50 mm	1.09 mm +/-0.05	37.82 mm	38.11 mm +0.38/-0.00	2.41 mm +/-0.10	1.27 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 33.29 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Spiral - 36.5 mm x 1.09 mm x 37.82 mm / Retaining Rings 44 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Each View the product page first if you are unsure.
36.50 mm	1.09 mm +/-0.05	37.82 mm	38.11 mm +0.38/-0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/-0.10 Groove Width (W): 1.27 mm +/-0.10 Approx. Loose Clip ID: 33.29 +/-0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Spiral - 36.5 mm x 1.09 mm x 37.82 mm / Retaining Rings 44 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Each View the product page first if you are unsure.
RR-143 --- Spiral - 36.5 mm x 1.09 mm x 37.82 mm Spring Steel RR-143 --- Spiral - 36.5 mm x 1.09 mm x 37.82 mm Spring Steel Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per 44 Available Now
41.28 mm	1.25 mm +/-0.08	42.77 mm	43.10 mm +0.51/-0.00	2.74 mm +/-0.10	1.47 mm +/-0.13
Material: 302 Stainless Steel Approx. Loose Clip ID: 37.62 +/-0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 2 View the product page first if you are unsure.
41.28 mm	1.25 mm +/-0.08	42.77 mm	43.10 mm +0.51/-0.00
Material: 302 Stainless Steel Radial Wall (S): 2.74 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.13 Approx. Loose Clip ID: 37.62 +/-0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm 302 Stainless Steel RR-162-S02 (2 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm 302 Stainless Steel Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
41.28 mm	1.25 mm +/-0.08	42.77 mm	43.10 mm +0.51/-0.00	2.74 mm +/-0.10	1.47 mm +/-0.13
Material: Spring Steel Approx. Loose Clip ID: 37.62 +/-0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Per 5 View the product page first if you are unsure.
41.28 mm	1.25 mm +/-0.08	42.77 mm	43.10 mm +0.51/-0.00
Material: Spring Steel Radial Wall (S): 2.74 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.13 Approx. Loose Clip ID: 37.62 +/-0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Spiral - 41.28 mm x 1.25 mm x 42.77 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-162 (5 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm Spring Steel RR-162 (5 Pcs) --- Spiral - 41.28 mm x 1.25 mm x 42.77 mm Spring Steel Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Out of stock! Backorder Now
42.85 mm	1.25 mm +/-0.08	44.45 mm	44.74 mm +0.51/-0.00	3.00 mm +/-0.10	1.47 mm +/-0.13
Material: Spring Steel Approx. Loose Clip ID: 38.74 +/-0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Spiral - 42.85 mm x 1.25 mm x 44.45 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 View the product page first if you are unsure.
42.85 mm	1.25 mm +/-0.08	44.45 mm	44.74 mm +0.51/-0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.13 Approx. Loose Clip ID: 38.74 +/-0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Spiral - 42.85 mm x 1.25 mm x 44.45 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-168 (5 Pcs) --- Spiral - 42.85 mm x 1.25 mm x 44.45 mm Spring Steel RR-168 (5 Pcs) --- Spiral - 42.85 mm x 1.25 mm x 44.45 mm Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
