Collection: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Retaining Rings -> Internal -> Spiral Rings -> Heavy DutyThere are 3 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Heavy Duty. Browse the Retaining Rings - Internal - Spiral Rings - Heavy Duty products table. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
A selection of Carbon Steel Heavy Duty Spiral Rings Internal Retaining Rings....
Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
A selection of Stainless Steel Heavy Duty Spiral Rings Internal Retaining Rings....
Category Details
This category includes various types of internal retaining rings.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Retaining Rings - Internal - Spiral Rings - Heavy Duty category on the MBA Minibearings main store.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 23.4 +/- 0.04
Groove Depth (d): 0.86
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 152 |
||||||
|
Part Number: RRN-102-S02 (PK-2)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$9.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 23.4 +/- 0.04
Groove Depth (d): 0.86
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 152 |
||||||
|
Part Number: RRN-102-S02 (PK-2)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$9.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
37.11
mm (Equiv. 1.461 in.) |
Approx. Loose Circlip OD (Dr)
37.27
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
3.00
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 31.27 +/- 0.05
Groove Depth (d): 1.09
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6131 |
||||||
|
Part Number: RRN-137 (PK-2)

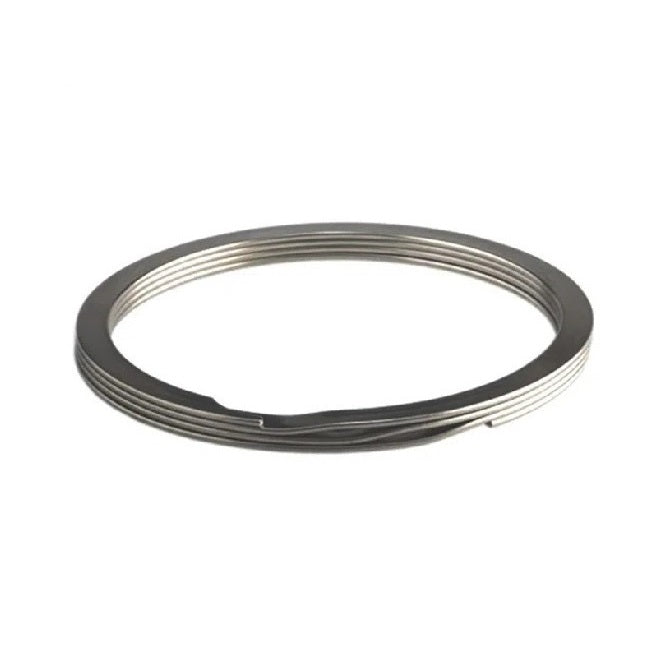

Internal Retaining Rings - 34.93x1.27x37.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
37.11
mm (Equiv. 1.461 in.) |
Approx. Loose Circlip OD (Dr)
37.27
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 31.27 +/- 0.05
Groove Depth (d): 1.09
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6131 |
||||||
|
Part Number: RRN-137 (PK-2)
Internal Retaining Rings - 34.93x1.27x37.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
36.55
mm (Equiv. 1.439 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
39.00
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
3.00
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 33 +/- 0.05
Groove Depth (d): 1.14
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRN-143 (Each)
Internal Retaining Rings - 36.55x1.27x38.81 mm Spiral Rings - Carbon Spring Steel Spiral Ring 7 Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
36.55
mm (Equiv. 1.439 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
39.00
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 33 +/- 0.05
Groove Depth (d): 1.14
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRN-143 (Each)
Internal Retaining Rings - 36.55x1.27x38.81 mm Spiral Rings - Carbon Spring Steel Spiral Ring 7 Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
