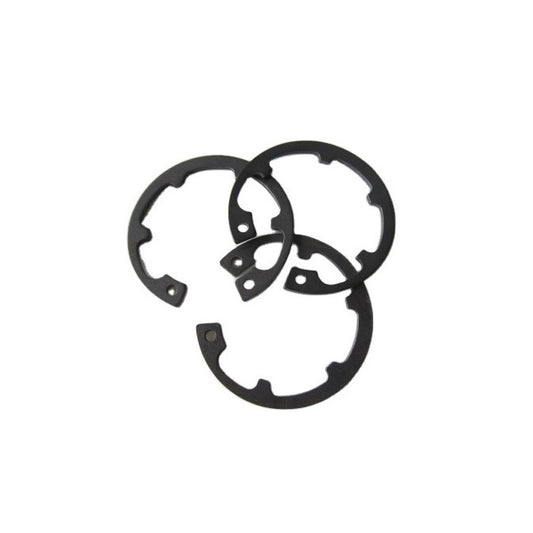

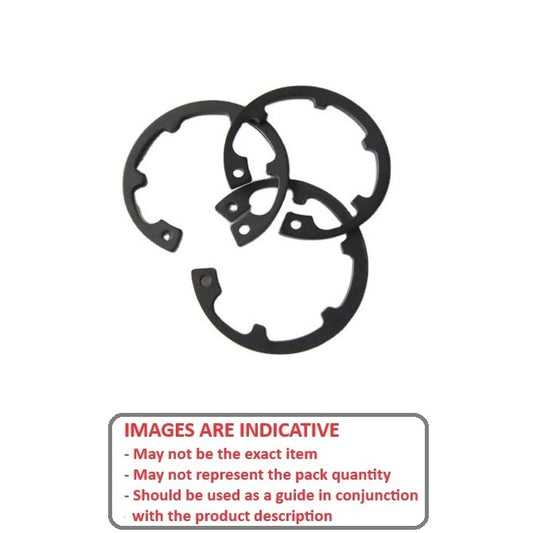

Retaining Rings - Internal - Circlips - Tabbed

44 Products in this selection
  • DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
  • Internal tabs are concentrically positioned for a concealed assembly.
  • Tabs act as spacers for securing machine components.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall Max. (b) Groove Width (W) Indicative
16.00
mm 		1.00
mm
+ 0.00 / - 0.11 		16.91
mm
+ 0.00 / - 0.06 		17.17 - 17.73
mm 		2.10
mm 		1.10
mm 		1113784 | DJK-016 --- Internal Retaining Rings - 16 mm x 1 mm x 16.91 mm
Material: Spring Steel    Tool: PRS-I011
Part Number: DJK-016 Internal Retaining Rings - 16 mm x 1 mm x 16.91 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
16.00
mm 		1.00
mm
+ 0.00 / - 0.11 		16.91
mm
+ 0.00 / - 0.06 		17.17 - 17.73
mm 		1113784 | DJK-016 --- Internal Retaining Rings - 16 mm x 1 mm x 16.91 mm
Material: Spring Steel    Radial Wall Max. (b): 2.10 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: DJK-016 Internal Retaining Rings - 16 mm x 1 mm x 16.91 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
17.00
mm 		1.00
mm
+ 0.00 / - 0.11 		17.91
mm
+ 0.00 / - 0.06 		18.17 - 18.73
mm 		2.20
mm 		1.10
mm 		1116615 | DJK-017 --- Internal Retaining Rings - 17 mm x 1 mm x 17.91 mm
Material: Spring Steel    Tool: PRS-I011
Part Number: DJK-017 Internal Retaining Rings - 17 mm x 1 mm x 17.91 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
17.00
mm 		1.00
mm
+ 0.00 / - 0.11 		17.91
mm
+ 0.00 / - 0.06 		18.17 - 18.73
mm 		1116615 | DJK-017 --- Internal Retaining Rings - 17 mm x 1 mm x 17.91 mm
Material: Spring Steel    Radial Wall Max. (b): 2.20 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: DJK-017 Internal Retaining Rings - 17 mm x 1 mm x 17.91 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
18.00
mm 		1.00
mm
+ 0.00 / - 0.15 		19.15
mm
+ 0.00 / - 0.06 		19.37
mm 		2.30
mm 		1.10
mm 		1117995 | DJK-018 (100 Pcs) --- Internal Retaining Rings - 18 mm x 1 mm x 19.15 mm
Material: Carbon Steel    Tool: PRS-I011
Part Number: DJK-018 (100 Pcs) Internal Retaining Rings - 18 mm x 1 mm x 19.15 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 13, 2025
$66.14 AUD
$66.14 AUD
Per 100
View the product page first if you are unsure ->
18.00
mm 		1.00
mm
+ 0.00 / - 0.15 		19.15
mm
+ 0.00 / - 0.06 		19.37
mm 		1117995 | DJK-018 (100 Pcs) --- Internal Retaining Rings - 18 mm x 1 mm x 19.15 mm
Material: Carbon Steel    Radial Wall Max. (b): 2.30 mm    Groove Width (W): 1.10 mm    Tool: PRS-I011
Part Number: DJK-018 (100 Pcs) Internal Retaining Rings - 18 mm x 1 mm x 19.15 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 13, 2025
$66.14 AUD
$66.14 AUD
Per 100
View the product page first if you are unsure.
19.00
mm 		1.00
mm
+ 0.00 / - 0.15 		20.15
mm
+ 0.00 / - 0.06 		20.37 - 20.92
mm 		2.30
mm 		1.10
mm 		1119736 | DJK-019 --- Internal Retaining Rings - 19 mm x 1 mm x 20.15 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-019 Internal Retaining Rings - 19 mm x 1 mm x 20.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
19.00
mm 		1.00
mm
+ 0.00 / - 0.15 		20.15
mm
+ 0.00 / - 0.06 		20.37 - 20.92
mm 		1119736 | DJK-019 --- Internal Retaining Rings - 19 mm x 1 mm x 20.15 mm
Material: Spring Steel    Radial Wall Max. (b): 2.30 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-019 Internal Retaining Rings - 19 mm x 1 mm x 20.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
20.00
mm 		1.00
mm
+ 0.00 / - 0.15 		21.15
mm
+ 0.00 / - 0.06 		21.37
mm 		2.40
mm 		1.10
mm 		1123097 | DJK-020 --- Internal Retaining Rings - 20 mm x 1 mm x 21.15 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-020 Internal Retaining Rings - 20 mm x 1 mm x 21.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
20.00
mm 		1.00
mm
+ 0.00 / - 0.15 		21.15
mm
+ 0.00 / - 0.06 		21.37
mm 		1123097 | DJK-020 --- Internal Retaining Rings - 20 mm x 1 mm x 21.15 mm
Material: Spring Steel    Radial Wall Max. (b): 2.40 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-020 Internal Retaining Rings - 20 mm x 1 mm x 21.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
21.00
mm 		1.00
mm
+ 0.00 / - 0.15 		22.15
mm
+ 0.00 / - 0.06 		22.37 - 22.92
mm 		2.40
mm 		1.10
mm 		1126875 | DJK-021 --- Internal Retaining Rings - 21 mm x 1 mm x 22.15 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-021 Internal Retaining Rings - 21 mm x 1 mm x 22.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
21.00
mm 		1.00
mm
+ 0.00 / - 0.15 		22.15
mm
+ 0.00 / - 0.06 		22.37 - 22.92
mm 		1126875 | DJK-021 --- Internal Retaining Rings - 21 mm x 1 mm x 22.15 mm
Material: Spring Steel    Radial Wall Max. (b): 2.40 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-021 Internal Retaining Rings - 21 mm x 1 mm x 22.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
22.00
mm 		1.00
mm
+ 0.00 / - 0.15 		23.15
mm
+ 0.00 / - 0.06 		23.37 - 23.92
mm 		2.60
mm 		1.10
mm 		1127520 | DJK-022 --- Internal Retaining Rings - 22 mm x 1 mm x 23.15 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-022 Internal Retaining Rings - 22 mm x 1 mm x 23.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
22.00
mm 		1.00
mm
+ 0.00 / - 0.15 		23.15
mm
+ 0.00 / - 0.06 		23.37 - 23.92
mm 		1127520 | DJK-022 --- Internal Retaining Rings - 22 mm x 1 mm x 23.15 mm
Material: Spring Steel    Radial Wall Max. (b): 2.60 mm    Groove Width (W): 1.10 mm    Tool: PRS-I018
Part Number: DJK-022 Internal Retaining Rings - 22 mm x 1 mm x 23.15 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
23.00
mm 		1.20
mm
+ 0.00 / - 0.15 		24.25
mm
+ 0.00 / - 0.06 		24.47 - 25.02
mm 		2.60
mm 		1.30
mm 		1129859 | DJK-023 --- Internal Retaining Rings - 23 mm x 1.2 mm x 24.25 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-023 Internal Retaining Rings - 23 mm x 1.2 mm x 24.25 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
23.00
mm 		1.20
mm
+ 0.00 / - 0.15 		24.25
mm
+ 0.00 / - 0.06 		24.47 - 25.02
mm 		1129859 | DJK-023 --- Internal Retaining Rings - 23 mm x 1.2 mm x 24.25 mm
Material: Spring Steel    Radial Wall Max. (b): 2.60 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-023 Internal Retaining Rings - 23 mm x 1.2 mm x 24.25 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
24.00
mm 		1.20
mm
+ 0.00 / - 0.21 		25.41
mm
+ 0.00 / - 0.06 		25.69 - 26.32
mm 		2.60
mm 		1.30
mm 		1130510 | DJK-024 --- Internal Retaining Rings - 24 mm x 1.2 mm x 25.41 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-024 Internal Retaining Rings - 24 mm x 1.2 mm x 25.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
24.00
mm 		1.20
mm
+ 0.00 / - 0.21 		25.41
mm
+ 0.00 / - 0.06 		25.69 - 26.32
mm 		1130510 | DJK-024 --- Internal Retaining Rings - 24 mm x 1.2 mm x 25.41 mm
Material: Spring Steel    Radial Wall Max. (b): 2.60 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-024 Internal Retaining Rings - 24 mm x 1.2 mm x 25.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
25.00
mm 		1.20
mm
+ 0.00 / - 0.21 		26.41
mm
+ 0.00 / - 0.06 		26.69
mm 		2.80
mm 		1.30
mm 		1132298 | DJK-025 --- Internal Retaining Rings - 25 mm x 1.2 mm x 26.41 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-025 Internal Retaining Rings - 25 mm x 1.2 mm x 26.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
25.00
mm 		1.20
mm
+ 0.00 / - 0.21 		26.41
mm
+ 0.00 / - 0.06 		26.69
mm 		1132298 | DJK-025 --- Internal Retaining Rings - 25 mm x 1.2 mm x 26.41 mm
Material: Spring Steel    Radial Wall Max. (b): 2.80 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-025 Internal Retaining Rings - 25 mm x 1.2 mm x 26.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
26.00
mm 		1.20
mm
+ 0.00 / - 0.21 		27.41
mm
+ 0.00 / - 0.06 		28.29 - 28.92
mm 		2.80
mm 		1.30
mm 		1136891 | DJK-026 --- Internal Retaining Rings - 26 mm x 1.2 mm x 27.41 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-026 Internal Retaining Rings - 26 mm x 1.2 mm x 27.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
26.00
mm 		1.20
mm
+ 0.00 / - 0.21 		27.41
mm
+ 0.00 / - 0.06 		28.29 - 28.92
mm 		1136891 | DJK-026 --- Internal Retaining Rings - 26 mm x 1.2 mm x 27.41 mm
Material: Spring Steel    Radial Wall Max. (b): 2.80 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-026 Internal Retaining Rings - 26 mm x 1.2 mm x 27.41 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
27.00
mm 		1.20
mm
+ 0.00 / - 0.21 		28.61
mm
+ 0.00 / - 0.06 		28.89 - 29.52
mm 		2.90
mm 		1.30
mm 		1137786 | DJK-027 --- Internal Retaining Rings - 27 mm x 1.2 mm x 28.61 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-027 Internal Retaining Rings - 27 mm x 1.2 mm x 28.61 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
27.00
mm 		1.20
mm
+ 0.00 / - 0.21 		28.61
mm
+ 0.00 / - 0.06 		28.89 - 29.52
mm 		1137786 | DJK-027 --- Internal Retaining Rings - 27 mm x 1.2 mm x 28.61 mm
Material: Spring Steel    Radial Wall Max. (b): 2.90 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-027 Internal Retaining Rings - 27 mm x 1.2 mm x 28.61 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
28.00
mm 		1.20
mm
+ 0.00 / - 0.21 		29.61
mm
+ 0.00 / - 0.06 		29.85
mm 		3.00
mm 		1.30
mm 		1138284 | DJK-028 --- Internal Retaining Rings - 28 mm x 1.2 mm x 29.61 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-028 Internal Retaining Rings - 28 mm x 1.2 mm x 29.61 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
28.00
mm 		1.20
mm
+ 0.00 / - 0.21 		29.61
mm
+ 0.00 / - 0.06 		29.85
mm 		1138284 | DJK-028 --- Internal Retaining Rings - 28 mm x 1.2 mm x 29.61 mm
Material: Spring Steel    Radial Wall Max. (b): 3.00 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-028 Internal Retaining Rings - 28 mm x 1.2 mm x 29.61 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
30.00
mm 		1.20
mm
+ 0.00 / - 0.25 		31.65
mm
+ 0.00 / - 0.06 		31.85
mm 		3.20
mm 		1.30
mm 		1140620 | DJK-030 --- Internal Retaining Rings - 30 mm x 1.2 mm x 31.65 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-030 Internal Retaining Rings - 30 mm x 1.2 mm x 31.65 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
30.00
mm 		1.20
mm
+ 0.00 / - 0.25 		31.65
mm
+ 0.00 / - 0.06 		31.85
mm 		1140620 | DJK-030 --- Internal Retaining Rings - 30 mm x 1.2 mm x 31.65 mm
Material: Spring Steel    Radial Wall Max. (b): 3.20 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-030 Internal Retaining Rings - 30 mm x 1.2 mm x 31.65 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
31.00
mm 		1.20
mm
+ 0.00 / - 0.25 		32.95
mm
+ 0.00 / - 0.06 		33.15 - 33.90
mm 		3.20
mm 		1.30
mm 		1143532 | DJK-031 --- Internal Retaining Rings - 31 mm x 1.2 mm x 32.95 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-031 Internal Retaining Rings - 31 mm x 1.2 mm x 32.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
31.00
mm 		1.20
mm
+ 0.00 / - 0.25 		32.95
mm
+ 0.00 / - 0.06 		33.15 - 33.90
mm 		1143532 | DJK-031 --- Internal Retaining Rings - 31 mm x 1.2 mm x 32.95 mm
Material: Spring Steel    Radial Wall Max. (b): 3.20 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-031 Internal Retaining Rings - 31 mm x 1.2 mm x 32.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
32.00
mm 		1.20
mm
+ 0.00 / - 0.25 		33.95
mm
+ 0.00 / - 0.06 		34.15
mm 		3.30
mm 		1.30
mm 		1144855 | DJK-032 --- Internal Retaining Rings - 32 mm x 1.2 mm x 33.95 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-032 Internal Retaining Rings - 32 mm x 1.2 mm x 33.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
32.00
mm 		1.20
mm
+ 0.00 / - 0.25 		33.95
mm
+ 0.00 / - 0.06 		34.15
mm 		1144855 | DJK-032 --- Internal Retaining Rings - 32 mm x 1.2 mm x 33.95 mm
Material: Spring Steel    Radial Wall Max. (b): 3.30 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-032 Internal Retaining Rings - 32 mm x 1.2 mm x 33.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
33.00
mm 		1.20
mm
+ 0.00 / - 0.25 		34.95
mm
+ 0.00 / - 0.06 		35.25 - 36.00
mm 		3.30
mm 		1.30
mm 		1146200 | DJK-033 --- Internal Retaining Rings - 33 mm x 1.2 mm x 34.95 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-033 Internal Retaining Rings - 33 mm x 1.2 mm x 34.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
33.00
mm 		1.20
mm
+ 0.00 / - 0.25 		34.95
mm
+ 0.00 / - 0.06 		35.25 - 36.00
mm 		1146200 | DJK-033 --- Internal Retaining Rings - 33 mm x 1.2 mm x 34.95 mm
Material: Spring Steel    Radial Wall Max. (b): 3.30 mm    Groove Width (W): 1.30 mm    Tool: PRS-I018
Part Number: DJK-033 Internal Retaining Rings - 33 mm x 1.2 mm x 34.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
34.00
mm 		1.50
mm
+ 0.00 / - 0.25 		37.95
mm
+ 0.00 / - 0.06 		36.25 - 37.00
mm 		3.40
mm 		1.60
mm 		1146624 | DJK-034 --- Internal Retaining Rings - 34 mm x 1.5 mm x 37.95 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-034 Internal Retaining Rings - 34 mm x 1.5 mm x 37.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
34.00
mm 		1.50
mm
+ 0.00 / - 0.25 		37.95
mm
+ 0.00 / - 0.06 		36.25 - 37.00
mm 		1146624 | DJK-034 --- Internal Retaining Rings - 34 mm x 1.5 mm x 37.95 mm
Material: Spring Steel    Radial Wall Max. (b): 3.40 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-034 Internal Retaining Rings - 34 mm x 1.5 mm x 37.95 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
35.00
mm 		1.50
mm
+ 0.00 / - 0.25 		37.25
mm
+ 0.00 / - 0.06 		37.55
mm 		3.60
mm 		1.60
mm 		1147491 | DJK-035 (5 Pcs) --- Internal Retaining Rings - 35 mm x 1.5 mm x 37.25 mm
Material: Carbon Steel    Tool: PRS-I018
Part Number: DJK-035 (5 Pcs) Internal Retaining Rings - 35 mm x 1.5 mm x 37.25 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 13, 2025
$16.50 AUD
$16.50 AUD
Per 5
View the product page first if you are unsure ->
35.00
mm 		1.50
mm
+ 0.00 / - 0.25 		37.25
mm
+ 0.00 / - 0.06 		37.55
mm 		1147491 | DJK-035 (5 Pcs) --- Internal Retaining Rings - 35 mm x 1.5 mm x 37.25 mm
Material: Carbon Steel    Radial Wall Max. (b): 3.60 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-035 (5 Pcs) Internal Retaining Rings - 35 mm x 1.5 mm x 37.25 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 13, 2025
$16.50 AUD
$16.50 AUD
Per 5
View the product page first if you are unsure.
36.00
mm 		1.50
mm
+ 0.00 / - 0.25 		38.25
mm
+ 0.00 / - 0.06 		38.55 - 39.30
mm 		3.60
mm 		1.60
mm 		1148883 | DJK-036 --- Internal Retaining Rings - 36 mm x 1.5 mm x 38.25 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-036 Internal Retaining Rings - 36 mm x 1.5 mm x 38.25 mm
30 Available | Backorders for more can be expected around Mon, Feb 17, 2025
$6.68 AUD
$6.68 AUD
Each
View the product page first if you are unsure ->
36.00
mm 		1.50
mm
+ 0.00 / - 0.25 		38.25
mm
+ 0.00 / - 0.06 		38.55 - 39.30
mm 		1148883 | DJK-036 --- Internal Retaining Rings - 36 mm x 1.5 mm x 38.25 mm
Material: Spring Steel    Radial Wall Max. (b): 3.60 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-036 Internal Retaining Rings - 36 mm x 1.5 mm x 38.25 mm
30 Available | Backorders for more can be expected around Mon, Feb 17, 2025
$6.68 AUD
$6.68 AUD
Each
View the product page first if you are unsure.
38.00
mm 		1.50
mm
+ 0.00 / - 0.25 		40.25
mm
+ 0.00 / - 0.06 		40.55
mm 		3.80
mm 		1.60
mm 		1150775 | DJK-038 --- Internal Retaining Rings - 38 mm x 1.5 mm x 40.25 mm
Material: Spring Steel    Tool: PRS-I018
Part Number: DJK-038 Internal Retaining Rings - 38 mm x 1.5 mm x 40.25 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
38.00
mm 		1.50
mm
+ 0.00 / - 0.25 		40.25
mm
+ 0.00 / - 0.06 		40.55
mm 		1150775 | DJK-038 --- Internal Retaining Rings - 38 mm x 1.5 mm x 40.25 mm
Material: Spring Steel    Radial Wall Max. (b): 3.80 mm    Groove Width (W): 1.60 mm    Tool: PRS-I018
Part Number: DJK-038 Internal Retaining Rings - 38 mm x 1.5 mm x 40.25 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
40.00
mm 		1.75
mm
+ 0.00 / - 0.25 		42.75
mm
+ 0.00 / - 0.06 		43.11
mm 		4.00
mm 		1.85
mm 		1152623 | DJK-040 --- Internal Retaining Rings - 40 mm x 1.75 mm x 42.75 mm
Material: Spring Steel    Tool: PRS-I023
Part Number: DJK-040 Internal Retaining Rings - 40 mm x 1.75 mm x 42.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
40.00
mm 		1.75
mm
+ 0.00 / - 0.25 		42.75
mm
+ 0.00 / - 0.06 		43.11
mm 		1152623 | DJK-040 --- Internal Retaining Rings - 40 mm x 1.75 mm x 42.75 mm
Material: Spring Steel    Radial Wall Max. (b): 4.00 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-040 Internal Retaining Rings - 40 mm x 1.75 mm x 42.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
42.00
mm 		1.75
mm
+ 0.00 / - 0.25 		44.75
mm
+ 0.00 / - 0.06 		45.11
mm 		4.10
mm 		1.85
mm 		1155371 | DJK-042 --- Internal Retaining Rings - 42 mm x 1.75 mm x 44.75 mm
Material: Spring Steel    Tool: PRS-I023
Part Number: DJK-042 Internal Retaining Rings - 42 mm x 1.75 mm x 44.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
42.00
mm 		1.75
mm
+ 0.00 / - 0.25 		44.75
mm
+ 0.00 / - 0.06 		45.11
mm 		1155371 | DJK-042 --- Internal Retaining Rings - 42 mm x 1.75 mm x 44.75 mm
Material: Spring Steel    Radial Wall Max. (b): 4.10 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-042 Internal Retaining Rings - 42 mm x 1.75 mm x 44.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
44.00
mm 		1.75
mm
+ 0.00 / - 0.25 		46.75
mm
+ 0.00 / - 0.06 		47.11 - 48.40
mm 		4.20
mm 		1.85
mm 		1156486 | DJK-044 --- Internal Retaining Rings - 44 mm x 1.75 mm x 46.75 mm
Material: Spring Steel    Tool: PRS-I023
Part Number: DJK-044 Internal Retaining Rings - 44 mm x 1.75 mm x 46.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
44.00
mm 		1.75
mm
+ 0.00 / - 0.25 		46.75
mm
+ 0.00 / - 0.06 		47.11 - 48.40
mm 		1156486 | DJK-044 --- Internal Retaining Rings - 44 mm x 1.75 mm x 46.75 mm
Material: Spring Steel    Radial Wall Max. (b): 4.20 mm    Groove Width (W): 1.85 mm    Tool: PRS-I023
Part Number: DJK-044 Internal Retaining Rings - 44 mm x 1.75 mm x 46.75 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
