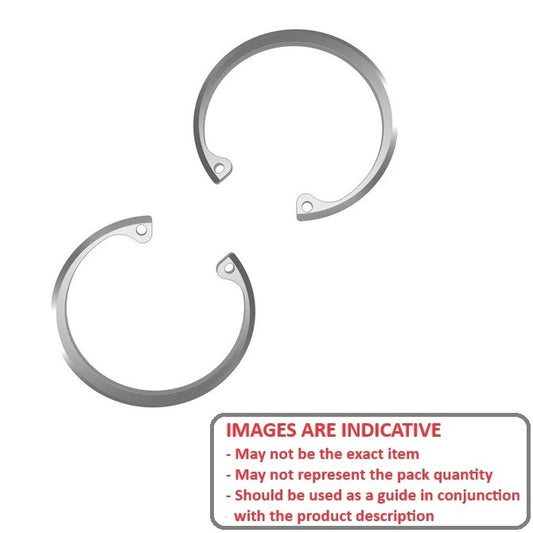

A selection of Bevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
  • Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
  • Used in greasy or oily environments.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - Internal - Circlips - Bevelled category on the MBA Minibearings main store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
80.17
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.69
mm
+/- 0.08
(Equiv. 0.106 in.)
Groove Dia. (Dg)
98.55
mm
+ 0.15 / - 0.00
(Equiv. 3.88 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I120
Additional stock available from USA subject to Prior Sale = 617
Part Number: CIB-08017-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Apr 12, 2026
$19.05 AUD
$19.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
80.17
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.69
mm
+/- 0.08
(Equiv. 0.106 in.)
Groove Dia. (Dg)
98.55
mm
+ 0.15 / - 0.00
(Equiv. 3.88 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Additional stock available from USA subject to Prior Sale = 617
Part Number: CIB-08017-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Apr 12, 2026
$19.05 AUD
$19.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
