Collection: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty - Carbon Steel

Retaining Rings (With Images)

External

Spiral Rings

Medium-Heavy Duty

Carbon Steel

16 Products in this selection

AME / WST / RST - Spring Steel
Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
This two/three turn design is easier to install than the heavy duty RRN option.
Equivalent to Associated Spring: AME, Smalley: WST, Spirolox and Ramsey: RST

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S)	Groove Width (W)
12.70 mm	0.89 mm +/-0.05	12.04 mm	11.94 mm +0.00/-0.33	1.14 mm +/-0.10	1.03 mm +/-0.05
Material: Spring Steel Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33
Part Number: RST-050 (50 Pcs) Spiral - 12.7 mm x 0.89 mm x 12.04 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $70.41 AUD Regular price Sale price $70.41 AUD Unit price per Per 50 View the product page first if you are unsure.

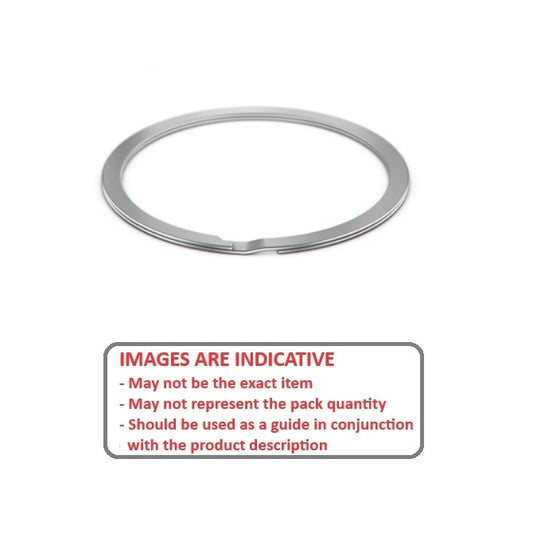

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
12.70 mm	0.89 mm +/-0.05	12.04 mm	11.94 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip OD: 14.22 +/-0.04 Groove Depth (d): 0.33
Part Number: RST-050 (50 Pcs) Spiral - 12.7 mm x 0.89 mm x 12.04 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $70.41 AUD Regular price Sale price $70.41 AUD Unit price per Per 50 View the product page first if you are unsure ->
RST-050 (50 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 12.04 mm Spring Steel RST-050 (50 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 12.04 mm Spring Steel Regular price $70.41 AUD Regular price Sale price $70.41 AUD Unit price per Out of stock! Backorder Now
14.27 mm	0.89 mm +/-0.05	13.59 mm	13.41 mm +0.00/-0.33	1.14 mm +/-0.10	1.03 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 15.69 +/-0.04 Groove Depth (d): 0.36
Part Number: RST-056 (100 Pcs) Spiral - 14.27 mm x 0.89 mm x 13.59 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 100 View the product page first if you are unsure.
14.27 mm	0.89 mm +/-0.05	13.59 mm	13.41 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.08 Approx. Loose Clip OD: 15.69 +/-0.04 Groove Depth (d): 0.36
Part Number: RST-056 (100 Pcs) Spiral - 14.27 mm x 0.89 mm x 13.59 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 100 View the product page first if you are unsure ->
RST-056 (100 Pcs) --- Spiral - 14.27 mm x 0.89 mm x 13.59 mm Spring Steel RST-056 (100 Pcs) --- Spiral - 14.27 mm x 0.89 mm x 13.59 mm Spring Steel Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.89 mm +/-0.05	15.14 mm	14.93 mm +0.00/-0.33	1.40 mm +/-0.10	1.03 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.38
Part Number: RST-062 (5 Pcs) Spiral - 15.88 mm x 0.89 mm x 15.14 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Per 5 View the product page first if you are unsure.
15.88 mm	0.89 mm +/-0.05	15.14 mm	14.93 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.08 Approx. Loose Clip OD: 17.73 +/-0.04 Groove Depth (d): 0.38
Part Number: RST-062 (5 Pcs) Spiral - 15.88 mm x 0.89 mm x 15.14 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Per 5 View the product page first if you are unsure ->
RST-062 (5 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 15.14 mm Spring Steel RST-062 (5 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 15.14 mm Spring Steel Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Out of stock! Backorder Now
19.05 mm	1.07 mm +/-0.05	18.16 mm	17.91 mm +0.00/-0.33	1.65 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.46
Part Number: RST-075 (5 Pcs) Spiral - 19.05 mm x 1.07 mm x 18.16 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 5 View the product page first if you are unsure.
19.05 mm	1.07 mm +/-0.05	18.16 mm	17.91 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 21.21 +/-0.04 Groove Depth (d): 0.46
Part Number: RST-075 (5 Pcs) Spiral - 19.05 mm x 1.07 mm x 18.16 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 5 View the product page first if you are unsure ->
RST-075 (5 Pcs) --- Spiral - 19.05 mm x 1.07 mm x 18.16 mm Spring Steel RST-075 (5 Pcs) --- Spiral - 19.05 mm x 1.07 mm x 18.16 mm Spring Steel Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Out of stock! Backorder Now
20.62 mm	1.07 mm +/-0.05	19.71 mm	19.38 mm +0.00/-0.33	1.65 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 22.68 +/-0.04 Groove Depth (d): 0.46
Part Number: RST-081 (2 Pcs) Spiral - 20.62 mm x 1.07 mm x 19.71 mm / Retaining Rings 65 units (130 pcs) Available \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $1.77 AUD Regular price Sale price $1.77 AUD Unit price per Per 2 View the product page first if you are unsure.
20.62 mm	1.07 mm +/-0.05	19.71 mm	19.38 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 22.68 +/-0.04 Groove Depth (d): 0.46
Part Number: RST-081 (2 Pcs) Spiral - 20.62 mm x 1.07 mm x 19.71 mm / Retaining Rings 65 units (130 pcs) Available \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $1.77 AUD Regular price Sale price $1.77 AUD Unit price per Per 2 View the product page first if you are unsure ->
RST-081 (2 Pcs) --- Spiral - 20.62 mm x 1.07 mm x 19.71 mm Spring Steel RST-081 (2 Pcs) --- Spiral - 20.62 mm x 1.07 mm x 19.71 mm Spring Steel Regular price $1.77 AUD Regular price Sale price $1.77 AUD Unit price per 65 Available Now
22.23 mm	1.07 mm +/-0.05	21.21 mm	20.90 mm +0.00/-0.33	1.91 mm +/-0.11	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip OD: 24.72 +/-0.04 Groove Depth (d): 0.51
Part Number: RST-087 (5 Pcs) Spiral - 22.23 mm x 1.07 mm x 21.21 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 5 View the product page first if you are unsure.
22.23 mm	1.07 mm +/-0.05	21.21 mm	20.90 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip OD: 24.72 +/-0.04 Groove Depth (d): 0.51
Part Number: RST-087 (5 Pcs) Spiral - 22.23 mm x 1.07 mm x 21.21 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 5 View the product page first if you are unsure ->
RST-087 (5 Pcs) --- Spiral - 22.23 mm x 1.07 mm x 21.21 mm Spring Steel RST-087 (5 Pcs) --- Spiral - 22.23 mm x 1.07 mm x 21.21 mm Spring Steel Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
24.96 mm	1.07 mm +/-0.05	23.88 mm	23.46 mm +0.00/-0.33	1.91 mm +/-0.11	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip OD: 27.28 +/-0.04 Groove Depth (d): 0.56
Part Number: RST-098 (70 Pcs) Spiral - 24.96 mm x 1.07 mm x 23.88 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $270.77 AUD Regular price Sale price $270.77 AUD Unit price per Per 70 View the product page first if you are unsure.
24.96 mm	1.07 mm +/-0.05	23.88 mm	23.46 mm +0.00/-0.33
Material: Spring Steel Radial Wall (S): 1.91 mm +/-0.11 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip OD: 27.28 +/-0.04 Groove Depth (d): 0.56
Part Number: RST-098 (70 Pcs) Spiral - 24.96 mm x 1.07 mm x 23.88 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $270.77 AUD Regular price Sale price $270.77 AUD Unit price per Per 70 View the product page first if you are unsure ->
RST-098 (70 Pcs) --- Spiral - 24.96 mm x 1.07 mm x 23.88 mm Spring Steel RST-098 (70 Pcs) --- Spiral - 24.96 mm x 1.07 mm x 23.88 mm Spring Steel Regular price $270.77 AUD Regular price Sale price $270.77 AUD Unit price per Out of stock! Backorder Now
26.97 mm	1.27 mm +/-0.05	25.78 mm	25.35 mm +0.00/-0.38	2.24 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip OD: 29.83 +/-0.05 Groove Depth (d): 0.61
Part Number: RST-106 (100 Pcs) Spiral - 26.97 mm x 1.27 mm x 25.78 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure.
26.97 mm	1.27 mm +/-0.05	25.78 mm	25.35 mm +0.00/-0.38
Material: Spring Steel Radial Wall (S): 2.24 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip OD: 29.83 +/-0.05 Groove Depth (d): 0.61
Part Number: RST-106 (100 Pcs) Spiral - 26.97 mm x 1.27 mm x 25.78 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure ->
RST-106 (100 Pcs) --- Spiral - 26.97 mm x 1.27 mm x 25.78 mm Spring Steel RST-106 (100 Pcs) --- Spiral - 26.97 mm x 1.27 mm x 25.78 mm Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
57.15 mm	1.99 mm +/-0.08	54.49 mm	53.72 mm +0.00/-0.64	3.58 mm +/-0.10	2.25 mm +/-0.16
Material: Spring Steel Approx. Loose Clip OD: 60.88 +/-0.06 Groove Depth (d): 1.35
Part Number: RST-225 (3 Pcs) Spiral - 57.15 mm x 1.99 mm x 54.49 mm / Retaining Rings 95 units (285 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.50 AUD Regular price ~~$4.12 AUD~~ Sale price $2.50 AUD Unit price per Per 3
57.15 mm	1.99 mm +/-0.08	54.49 mm	53.72 mm +0.00/-0.64
Material: Spring Steel Radial Wall (S): 3.58 mm +/-0.10 Groove Width (W): 2.25 mm +/-0.16 Approx. Loose Clip OD: 60.88 +/-0.06 Groove Depth (d): 1.35
Part Number: RST-225 (3 Pcs) Spiral - 57.15 mm x 1.99 mm x 54.49 mm / Retaining Rings 95 units (285 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $2.50 AUD Regular price ~~$4.12 AUD~~ Sale price $2.50 AUD Unit price per Per 3
RST-225 (3 Pcs) --- Spiral - 57.15 mm x 1.99 mm x 54.49 mm Spring Steel Sale RST-225 (3 Pcs) --- Spiral - 57.15 mm x 1.99 mm x 54.49 mm Spring Steel Regular price $2.50 AUD Regular price ~~$4.12 AUD~~ Sale price $2.50 AUD Unit price per 95 Available Now Sale
58.72 mm	1.99 mm +/-0.08	56.01 mm	55.20 mm +0.00/-0.64	3.58 mm +/-0.10	2.25 mm +/-0.15
Material: Spring Steel Approx. Loose Clip OD: 62.36 +/-0.06 Groove Depth (d): 1.37
Part Number: RST-231 (37 Pcs) Spiral - 58.72 mm x 1.99 mm x 56.01 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 37 View the product page first if you are unsure.
58.72 mm	1.99 mm +/-0.08	56.01 mm	55.20 mm +0.00/-0.64
Material: Spring Steel Radial Wall (S): 3.58 mm +/-0.10 Groove Width (W): 2.25 mm +/-0.15 Approx. Loose Clip OD: 62.36 +/-0.06 Groove Depth (d): 1.37
Part Number: RST-231 (37 Pcs) Spiral - 58.72 mm x 1.99 mm x 56.01 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 37 View the product page first if you are unsure ->
RST-231 (37 Pcs) --- Spiral - 58.72 mm x 1.99 mm x 56.01 mm Spring Steel RST-231 (37 Pcs) --- Spiral - 58.72 mm x 1.99 mm x 56.01 mm Spring Steel Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Out of stock! Backorder Now
60.33 mm	1.99 mm +/-0.08	57.53 mm	56.71 mm +0.00/-0.64	3.58 mm +/-0.10	2.25 mm +/-0.15
Material: Spring Steel Approx. Loose Clip OD: 63.87 +/-0.06 Groove Depth (d): 1.40
Part Number: RST-237 (3 Pcs) Spiral - 60.33 mm x 1.99 mm x 57.53 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 3 View the product page first if you are unsure.
60.33 mm	1.99 mm +/-0.08	57.53 mm	56.71 mm +0.00/-0.64
Material: Spring Steel Radial Wall (S): 3.58 mm +/-0.10 Groove Width (W): 2.25 mm +/-0.15 Approx. Loose Clip OD: 63.87 +/-0.06 Groove Depth (d): 1.40
Part Number: RST-237 (3 Pcs) Spiral - 60.33 mm x 1.99 mm x 57.53 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 3 View the product page first if you are unsure ->
RST-237 (3 Pcs) --- Spiral - 60.33 mm x 1.99 mm x 57.53 mm Spring Steel RST-237 (3 Pcs) --- Spiral - 60.33 mm x 1.99 mm x 57.53 mm Spring Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
63.50 mm	1.99 mm +/-0.08	60.58 mm	59.69 mm +0.00/-0.64	4.78 mm +/-0.13	2.25 mm +/-0.15
Material: Spring Steel Approx. Loose Clip OD: 69.25 +/-0.06 Groove Depth (d): 1.47
Part Number: RST-250 Spiral - 63.5 mm x 1.99 mm x 60.58 mm / Retaining Rings 8 Available \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each View the product page first if you are unsure.
63.50 mm	1.99 mm +/-0.08	60.58 mm	59.69 mm +0.00/-0.64
Material: Spring Steel Radial Wall (S): 4.78 mm +/-0.13 Groove Width (W): 2.25 mm +/-0.15 Approx. Loose Clip OD: 69.25 +/-0.06 Groove Depth (d): 1.47
Part Number: RST-250 Spiral - 63.5 mm x 1.99 mm x 60.58 mm / Retaining Rings 8 Available \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each View the product page first if you are unsure ->
RST-250 --- Spiral - 63.5 mm x 1.99 mm x 60.58 mm Spring Steel RST-250 --- Spiral - 63.5 mm x 1.99 mm x 60.58 mm Spring Steel Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per 8 Available Now
73.03 mm	2.37 mm +/-0.08	69.65 mm	68.65 mm +0.00/-0.76	4.78 mm +/-0.13	2.68 mm +/-0.16
Material: Spring Steel Approx. Loose Clip OD: 78.21 +/-0.06 Groove Depth (d): 1.70
Part Number: RST-287 (100 Pcs) Spiral - 73.03 mm x 2.37 mm x 69.65 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Per 100 View the product page first if you are unsure.
73.03 mm	2.37 mm +/-0.08	69.65 mm	68.65 mm +0.00/-0.76
Material: Spring Steel Radial Wall (S): 4.78 mm +/-0.13 Groove Width (W): 2.68 mm +/-0.16 Approx. Loose Clip OD: 78.21 +/-0.06 Groove Depth (d): 1.70
Part Number: RST-287 (100 Pcs) Spiral - 73.03 mm x 2.37 mm x 69.65 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Per 100 View the product page first if you are unsure ->
RST-287 (100 Pcs) --- Spiral - 73.03 mm x 2.37 mm x 69.65 mm Spring Steel RST-287 (100 Pcs) --- Spiral - 73.03 mm x 2.37 mm x 69.65 mm Spring Steel Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Out of stock! Backorder Now
76.20 mm	2.37 mm +/-0.08	72.65 mm	71.63 mm +0.00/-0.76	4.78 mm +/-0.13	2.68 mm +/-0.16
Material: Spring Steel Approx. Loose Clip OD: 81.19 +/-0.06 Groove Depth (d): 1.78
Part Number: RST-300 Spiral - 76.2 mm x 2.37 mm x 72.65 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
76.20 mm	2.37 mm +/-0.08	72.65 mm	71.63 mm +0.00/-0.76
Material: Spring Steel Radial Wall (S): 4.78 mm +/-0.13 Groove Width (W): 2.68 mm +/-0.16 Approx. Loose Clip OD: 81.19 +/-0.06 Groove Depth (d): 1.78
Part Number: RST-300 Spiral - 76.2 mm x 2.37 mm x 72.65 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure ->
RST-300 --- Spiral - 76.2 mm x 2.37 mm x 72.65 mm Spring Steel RST-300 --- Spiral - 76.2 mm x 2.37 mm x 72.65 mm Spring Steel Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Out of stock! Backorder Now
114.30 mm	2.82 mm +/-0.08	109.48 mm	107.44 mm +0.00/-1.02	6.35 mm +/-0.13	3.12 mm +/-0.16
Material: Spring Steel Approx. Loose Clip OD: 120.14 +/-0.07 Groove Depth (d): 2.41
Part Number: RST-450 Spiral - 114.3 mm x 2.82 mm x 109.48 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Each View the product page first if you are unsure.
114.30 mm	2.82 mm +/-0.08	109.48 mm	107.44 mm +0.00/-1.02
Material: Spring Steel Radial Wall (S): 6.35 mm +/-0.13 Groove Width (W): 3.12 mm +/-0.16 Approx. Loose Clip OD: 120.14 +/-0.07 Groove Depth (d): 2.41
Part Number: RST-450 Spiral - 114.3 mm x 2.82 mm x 109.48 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 17, 2025 Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Each View the product page first if you are unsure ->
RST-450 --- Spiral - 114.3 mm x 2.82 mm x 109.48 mm Spring Steel RST-450 --- Spiral - 114.3 mm x 2.82 mm x 109.48 mm Spring Steel Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Out of stock! Backorder Now
120.65 mm	2.82 mm +/-0.08	115.57 mm	113.41 mm +0.00/-1.02	6.35 mm +/-0.13	3.12 mm +/-0.15
Material: Spring Steel Approx. Loose Clip OD: 126.11 +/-0.07 Groove Depth (d): 2.54

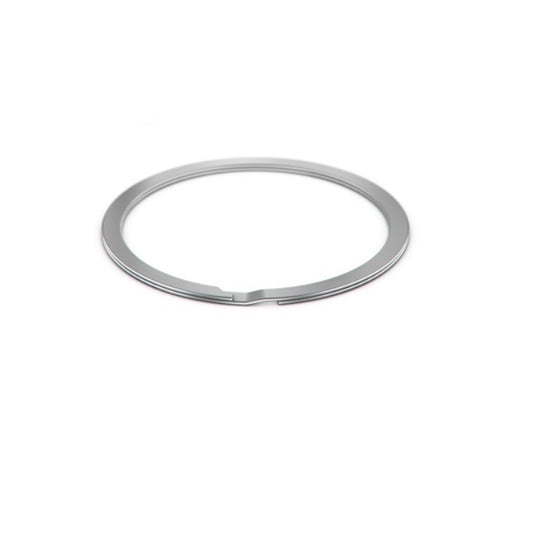

Part Number: RST-475 Spiral - 120.65 mm x 2.82 mm x 115.57 mm / Retaining Rings 130 Available \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $130.05 AUD Regular price Sale price $130.05 AUD Unit price per Each View the product page first if you are unsure.
120.65 mm	2.82 mm +/-0.08	115.57 mm	113.41 mm +0.00/-1.02
Material: Spring Steel Radial Wall (S): 6.35 mm +/-0.13 Groove Width (W): 3.12 mm +/-0.15 Approx. Loose Clip OD: 126.11 +/-0.07 Groove Depth (d): 2.54
Part Number: RST-475 Spiral - 120.65 mm x 2.82 mm x 115.57 mm / Retaining Rings 130 Available \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $130.05 AUD Regular price Sale price $130.05 AUD Unit price per Each View the product page first if you are unsure ->
RST-475 --- Spiral - 120.65 mm x 2.82 mm x 115.57 mm Spring Steel RST-475 --- Spiral - 120.65 mm x 2.82 mm x 115.57 mm Spring Steel Regular price $130.05 AUD Regular price Sale price $130.05 AUD Unit price per 130 Available Now
