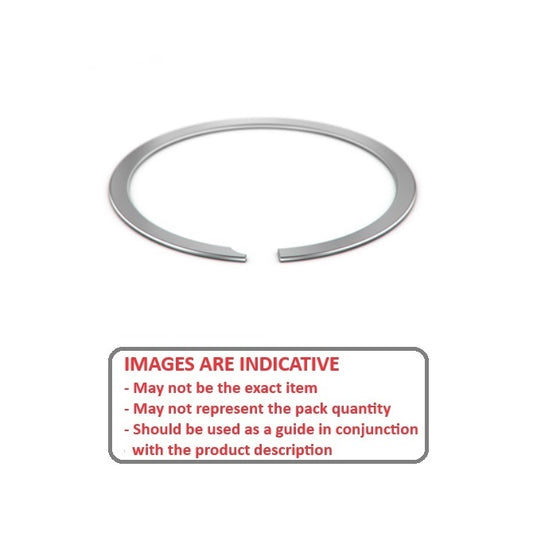

Retaining Rings - External - Spiral Rings - Light Duty

4 Products in this selection

This is a combined category of products from Light Duty Spiral Rings External Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Groove Width (W) Indicative
9.525
mm 		0.38
mm
+/- 0.05 		8.92
mm 		8.83
mm
+ 0.00 / - 0.25 		0.635
mm
+/- 0.10 		0.46
mm
+/- 0.05 		1086513 | US-037 (25 Pcs) --- External Retaining Rings - 9.525 mm x 0.38 mm x 8.92 mm
Material: Spring Steel    Approx. Loose Clip OD: 10.10 +/- - 0.03   Groove Depth (d): 0.30
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525 mm x 0.38 mm x 8.92 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Tue, Feb 18, 2025
$55.68 AUD
$55.68 AUD
Per 25
View the product page first if you are unsure ->
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
9.525
mm 		0.38
mm
+/- 0.05 		8.92
mm 		8.83
mm
+ 0.00 / - 0.25 		1086513 | US-037 (25 Pcs) --- External Retaining Rings - 9.525 mm x 0.38 mm x 8.92 mm
Material: Spring Steel    Radial Wall (S): 0.635 mm +/- 0.10    Groove Width (W): 0.46 mm +/- 0.05   Approx. Loose Clip OD: 10.10 +/- - 0.03   Groove Depth (d): 0.30
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525 mm x 0.38 mm x 8.92 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Tue, Feb 18, 2025
$55.68 AUD
$55.68 AUD
Per 25
View the product page first if you are unsure.
12.70
mm 		0.46
mm
+/- 0.04 		11.99
mm 		12.07
mm
+ 0.00 / - 0.33 		1.14
mm
+/- 0.10 		0.59
mm
+/- 0.05 		1101852 | US-050-S02 (678 Pcs) --- External Retaining Rings - 12.7 mm x 0.46 mm x 11.99 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 14.35 +/- - 0.03   Groove Depth (d): 0.36
Category: Retaining Rings - External - Spiral Rings - Light Duty - Stainless Steel
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7 mm x 0.46 mm x 11.99 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 27, 2025
$1,120.59 AUD
$1,120.59 AUD
Per 678
View the product page first if you are unsure ->
12.70
mm 		0.46
mm
+/- 0.04 		11.99
mm 		12.07
mm
+ 0.00 / - 0.33 		1101852 | US-050-S02 (678 Pcs) --- External Retaining Rings - 12.7 mm x 0.46 mm x 11.99 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 1.14 mm +/- 0.10    Groove Width (W): 0.59 mm +/- 0.05   Approx. Loose Clip OD: 14.35 +/- - 0.03   Groove Depth (d): 0.36
Category: Retaining Rings - External - Spiral Rings - Light Duty - Stainless Steel
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7 mm x 0.46 mm x 11.99 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 27, 2025
$1,120.59 AUD
$1,120.59 AUD
Per 678
View the product page first if you are unsure.
25.40
mm 		0.54
mm
+/- 0.04 		24.34
mm 		24.13
mm
+ 0.00 / - 0.33 		1.65
mm
+/- 0.10 		0.69
mm
+/- 0.07 		1134947 | US-100 (50 Pcs) --- External Retaining Rings - 25.4 mm x 0.54 mm x 24.34 mm
Material: Spring Steel    Approx. Loose Clip OD: 27.43 +/- - 0.03   Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4 mm x 0.54 mm x 24.34 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$59.50 AUD
$59.50 AUD
Per 50
View the product page first if you are unsure ->
25.40
mm 		0.54
mm
+/- 0.04 		24.34
mm 		24.13
mm
+ 0.00 / - 0.33 		1134947 | US-100 (50 Pcs) --- External Retaining Rings - 25.4 mm x 0.54 mm x 24.34 mm
Material: Spring Steel    Radial Wall (S): 1.65 mm +/- 0.10    Groove Width (W): 0.69 mm +/- 0.07   Approx. Loose Clip OD: 27.43 +/- - 0.03   Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4 mm x 0.54 mm x 24.34 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$59.50 AUD
$59.50 AUD
Per 50
View the product page first if you are unsure.
88.90
mm 		0.99
mm
+/- 0.05 		85.65
mm 		84.46
mm
+ 0.00 / - 0.76 		4.78
mm
+/- 0.13 		1.16
mm
+/- 0.15 		1183027 | US-350 (26 Pcs) --- External Retaining Rings - 88.9 mm x 0.99 mm x 85.65 mm
Material: Spring Steel    Approx. Loose Clip OD: 94.02 +/- - 0.03   Groove Depth (d): 1.17
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9 mm x 0.99 mm x 85.65 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 27, 2025
$285.14 AUD
$285.14 AUD
Per 26
View the product page first if you are unsure ->
88.90
mm 		0.99
mm
+/- 0.05 		85.65
mm 		84.46
mm
+ 0.00 / - 0.76 		1183027 | US-350 (26 Pcs) --- External Retaining Rings - 88.9 mm x 0.99 mm x 85.65 mm
Material: Spring Steel    Radial Wall (S): 4.78 mm +/- 0.13    Groove Width (W): 1.16 mm +/- 0.15   Approx. Loose Clip OD: 94.02 +/- - 0.03   Groove Depth (d): 1.17
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9 mm x 0.99 mm x 85.65 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Thu, Feb 27, 2025
$285.14 AUD
$285.14 AUD
Per 26
View the product page first if you are unsure.
