Retaining Rings - External - Circlips - Tabbed

Retaining Rings -> External -> Circlips -> Tabbed

There is only 1 product in the sub-categories of Retaining Rings - External - Circlips - Tabbed. Browse the Retaining Rings - External - Circlips - Tabbed products table.

Category Details

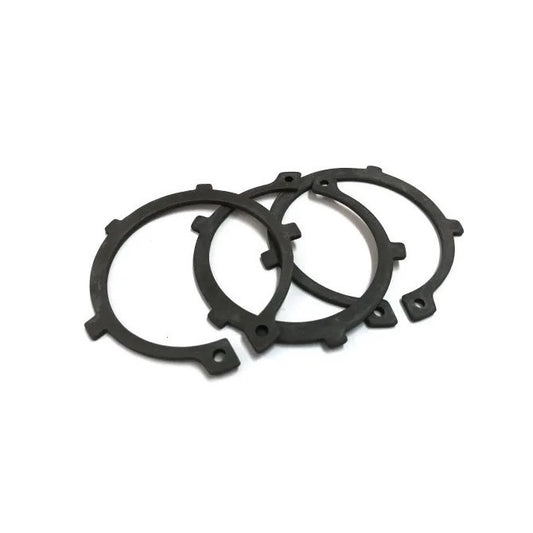

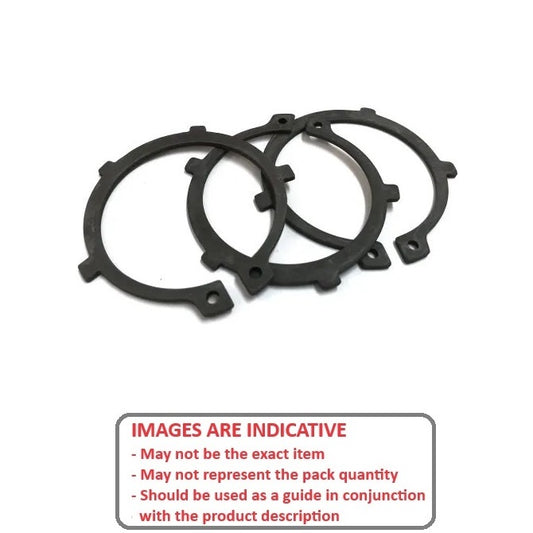

A selection of Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Retaining Rings - External - Circlips - Tabbed category on the MBA Minibearings main store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
22.78
mm
Groove Width (W)
1.30
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-E018
Deleted Item. Available while stocks last.
Part Number: DAK-025 (PK-5)
9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (45 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip
Shaft Diameter (Ds)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.21
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.06
(Equiv. 0.941 in.)
Approx. Loose Circlip ID (A)
22.78
mm
External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm    Tool: PRS-E018
Deleted Item. Available while stocks last.
Part Number: DAK-025 (PK-5)
9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

9 units (45 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
