Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

Retaining Rings (With Images)

External

Circlips

Standard

49 Products in this selection

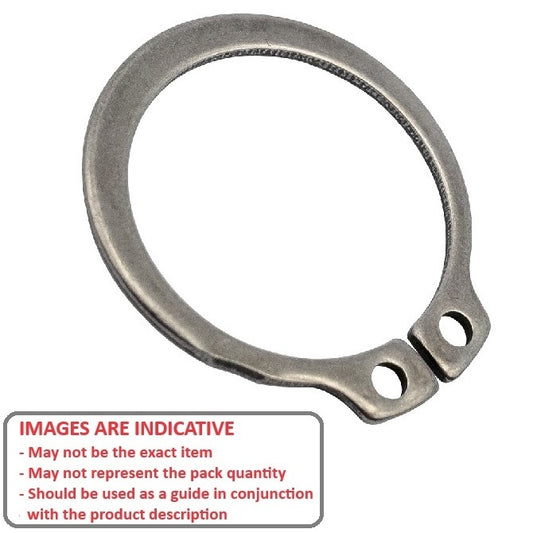

A selection of Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
PH15-7 Mo Stainless Steel.

Small Parts & Bearings

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more comprehensive listing may be found on the MBA Minibearings main store at Retaining Rings - External - Circlips - Standard - Stainless Steel.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 13.99 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm		Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 20.57 mm Min. Lug Diameter (h): 1.14 mm Standard: MIL-16624
Part Number: CCE-01399-S15 (Each) External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 13.99 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Clearance in Groove (C1): 20.57 mm Min. Lug Diameter (h): 1.14 mm Standard: MIL-16624
Part Number: CCE-01399-S15 (Each) External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-01399-S15 (Each) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01399-S15 (Each) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 14.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.40 mm _{+ 0.00 / - 0.11} (Equiv. 0.528 in.)	Approx. Loose Circlip ID (A) 12.90 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 21.40 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01400-S15 (PK-2) External Retaining Rings - 14x1x13.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 147 units (294 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 2
Shaft Diameter (Ds) 14.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.40 mm _{+ 0.00 / - 0.11} (Equiv. 0.528 in.)	Approx. Loose Circlip ID (A) 12.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 21.40 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01400-S15 (PK-2) External Retaining Rings - 14x1x13.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 147 units (294 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01400-S15 (PK-2) --- External Retaining Rings - 14x1x13.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01400-S15 (PK-2) --- External Retaining Rings - 14x1x13.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 147 Available Now
Shaft Diameter (Ds) 14.29 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.20 mm		Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-01429-S15 (PK-2) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 93 units (186 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 2
Shaft Diameter (Ds) 14.29 mm	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Standard: MIL-16624
Part Number: CCE-01429-S15 (PK-2) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 93 units (186 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01429-S15 (PK-2) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01429-S15 (PK-2) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 93 Available Now
Shaft Diameter (Ds) 15.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.30 mm _{+ 0.00 / - 0.11} (Equiv. 0.563 in.)	Approx. Loose Circlip ID (A) 13.80 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 22.60 mm Clearance in Groove (C1): 21.50 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Standard: DIN471
Part Number: CCE-01500-S15 (PK-5) External Retaining Rings - 15x1x14.3 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 18 units (90 pcs) Available Now \| Further orders can be expected around Mon, Aug 24, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 15.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.30 mm _{+ 0.00 / - 0.11} (Equiv. 0.563 in.)	Approx. Loose Circlip ID (A) 13.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 22.60 mm Clearance in Groove (C1): 21.50 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Standard: DIN471
Part Number: CCE-01500-S15 (PK-5) External Retaining Rings - 15x1x14.3 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 18 units (90 pcs) Available Now \| Further orders can be expected around Mon, Aug 24, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01500-S15 (PK-5) --- External Retaining Rings - 15x1x14.3 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01500-S15 (PK-5) --- External Retaining Rings - 15x1x14.3 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 16.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.20 mm _{+ 0.00 / - 0.11} (Equiv. 0.598 in.)	Approx. Loose Circlip ID (A) 14.70 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 23.80 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01600-S15 (PK-5) External Retaining Rings - 16x1x15.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 units (10 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 5
Shaft Diameter (Ds) 16.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.20 mm _{+ 0.00 / - 0.11} (Equiv. 0.598 in.)	Approx. Loose Circlip ID (A) 14.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 23.80 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01600-S15 (PK-5) External Retaining Rings - 16x1x15.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 units (10 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01600-S15 (PK-5) --- External Retaining Rings - 16x1x15.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01600-S15 (PK-5) --- External Retaining Rings - 16x1x15.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 2 Available Now
Shaft Diameter (Ds) 17.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.20 mm _{+ 0.00 / - 0.11} (Equiv. 0.638 in.)	Approx. Loose Circlip ID (A) 15.70 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 25.00 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01700-S15 (PK-5) External Retaining Rings - 17x1x16.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 11 units (55 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $5.14 AUD Regular price ~~$14.36 AUD~~ Sale price $5.14 AUD Unit price per Per 5
Shaft Diameter (Ds) 17.00 mm	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.20 mm _{+ 0.00 / - 0.11} (Equiv. 0.638 in.)	Approx. Loose Circlip ID (A) 15.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 25.00 mm Min. Lug Diameter (h): 1.70 mm Standard: DIN471
Part Number: CCE-01700-S15 (PK-5) External Retaining Rings - 17x1x16.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 11 units (55 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $5.14 AUD Regular price ~~$14.36 AUD~~ Sale price $5.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01700-S15 (PK-5) --- External Retaining Rings - 17x1x16.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01700-S15 (PK-5) --- External Retaining Rings - 17x1x16.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.14 AUD Regular price ~~$14.36 AUD~~ Sale price $5.14 AUD Unit price per 11 Available Now Sale
Shaft Diameter (Ds) 17.46 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm _{+/- 0.076} (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.13 mm		Groove Width (W) 1.17 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 25.65 mm Min. Lug Diameter (h): 1.27 mm Standard: MIL-16624
Part Number: CCE-01746-S15 (PK-2) External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 11 units (22 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.05 AUD Regular price ~~$8.29 AUD~~ Sale price $3.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 17.46 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm _{+/- 0.076} (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.13 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm Clearance in Groove (C1): 25.65 mm Min. Lug Diameter (h): 1.27 mm Standard: MIL-16624
Part Number: CCE-01746-S15 (PK-2) External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 11 units (22 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.05 AUD Regular price ~~$8.29 AUD~~ Sale price $3.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01746-S15 (PK-2) --- External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01746-S15 (PK-2) --- External Retaining Rings - 17.46x1.07x16.41 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.05 AUD Regular price ~~$8.29 AUD~~ Sale price $3.05 AUD Unit price per 11 Available Now Sale
Shaft Diameter (Ds) 18.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 17.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.669 in.)	Approx. Loose Circlip ID (A) 16.50 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 26.20 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-01800-S15 (PK-2) External Retaining Rings - 18x1.2x17 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 units (28 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 18.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 17.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.669 in.)	Approx. Loose Circlip ID (A) 16.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 26.20 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-01800-S15 (PK-2) External Retaining Rings - 18x1.2x17 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 units (28 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01800-S15 (PK-2) --- External Retaining Rings - 18x1.2x17 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01800-S15 (PK-2) --- External Retaining Rings - 18x1.2x17 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per 14 Available Now
Shaft Diameter (Ds) 19.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 17.89 mm _{+ 0.00 / - 0.11} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.50 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 25.80 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN471
Part Number: CCE-01900-S15 (Each) External Retaining Rings - 19x1.2x17.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 58 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.05 AUD Regular price ~~$5.46 AUD~~ Sale price $2.05 AUD Unit price per Each
Shaft Diameter (Ds) 19.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 17.89 mm _{+ 0.00 / - 0.11} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 25.80 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN471
Part Number: CCE-01900-S15 (Each) External Retaining Rings - 19x1.2x17.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 58 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.05 AUD Regular price ~~$5.46 AUD~~ Sale price $2.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-01900-S15 (Each) --- External Retaining Rings - 19x1.2x17.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01900-S15 (Each) --- External Retaining Rings - 19x1.2x17.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.05 AUD Regular price ~~$5.46 AUD~~ Sale price $2.05 AUD Unit price per 58 Available Now Sale
Shaft Diameter (Ds) 19.05 mm	Clip Thickness (T) 1.98 mm _{+/- 0.076} (Equiv. 0.078 in.)	Groove Dia. (Dg) 17.88 mm _{+ 0.025 / - 0.076} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.50 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-01905H-S15 (Each) External Retaining Rings - 19.05x1.98x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 81 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.68 AUD Regular price ~~$21.28 AUD~~ Sale price $7.68 AUD Unit price per Each
Shaft Diameter (Ds) 19.05 mm	Clip Thickness (T) 1.98 mm _{+/- 0.076} (Equiv. 0.078 in.)	Groove Dia. (Dg) 17.88 mm _{+ 0.025 / - 0.076} (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.50 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-01905H-S15 (Each) External Retaining Rings - 19.05x1.98x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 81 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.68 AUD Regular price ~~$21.28 AUD~~ Sale price $7.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-01905H-S15 (Each) --- External Retaining Rings - 19.05x1.98x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01905H-S15 (Each) --- External Retaining Rings - 19.05x1.98x17.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.68 AUD Regular price ~~$21.28 AUD~~ Sale price $7.68 AUD Unit price per 81 Available Now Sale
Shaft Diameter (Ds) 22.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.13} (Equiv. 0.827 in.)	Approx. Loose Circlip ID (A) 20.50 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 30.80 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-02200-S15 (PK-2) External Retaining Rings - 22x1.2x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 22 units (44 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.14 AUD Regular price ~~$8.71 AUD~~ Sale price $3.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 22.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.13} (Equiv. 0.827 in.)	Approx. Loose Circlip ID (A) 20.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 30.80 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-02200-S15 (PK-2) External Retaining Rings - 22x1.2x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 22 units (44 pcs) Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.14 AUD Regular price ~~$8.71 AUD~~ Sale price $3.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-02200-S15 (PK-2) --- External Retaining Rings - 22x1.2x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02200-S15 (PK-2) --- External Retaining Rings - 22x1.2x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.14 AUD Regular price ~~$8.71 AUD~~ Sale price $3.14 AUD Unit price per 22 Available Now Sale
Shaft Diameter (Ds) 22.23 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.076} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm		Groove Width (W) 1.17 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 30.73 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-02223-S15 (Each) External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 126 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.32 AUD Regular price ~~$6.06 AUD~~ Sale price $2.32 AUD Unit price per Each
Shaft Diameter (Ds) 22.23 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.85 mm _{+/- 0.076} (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.57 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm Clearance in Groove (C1): 30.73 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-02223-S15 (Each) External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 126 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.32 AUD Regular price ~~$6.06 AUD~~ Sale price $2.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-02223-S15 (Each) --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02223-S15 (Each) --- External Retaining Rings - 22.23x1.07x20.85 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.32 AUD Regular price ~~$6.06 AUD~~ Sale price $2.32 AUD Unit price per 126 Available Now Sale
Shaft Diameter (Ds) 23.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.21} (Equiv. 0.866 in.)	Approx. Loose Circlip ID (A) 21.50 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 32.00 mm Clearance in Groove (C1): 30.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN471
Part Number: CCE-02300-S15 (Each) External Retaining Rings - 23x1.2x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 10 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $1.59 AUD Regular price ~~$4.21 AUD~~ Sale price $1.59 AUD Unit price per Each
Shaft Diameter (Ds) 23.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.21} (Equiv. 0.866 in.)	Approx. Loose Circlip ID (A) 21.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 32.00 mm Clearance in Groove (C1): 30.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN471
Part Number: CCE-02300-S15 (Each) External Retaining Rings - 23x1.2x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 10 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $1.59 AUD Regular price ~~$4.21 AUD~~ Sale price $1.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-02300-S15 (Each) --- External Retaining Rings - 23x1.2x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02300-S15 (Each) --- External Retaining Rings - 23x1.2x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.59 AUD Regular price ~~$4.21 AUD~~ Sale price $1.59 AUD Unit price per 10 Available Now Sale
Shaft Diameter (Ds) 23.81 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.40 mm _{+/- 0.076} (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.00 mm		Groove Width (W) 1.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-02381-S15 (Each) External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 26 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each
Shaft Diameter (Ds) 23.81 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.40 mm _{+/- 0.076} (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.20 mm Standard: MIL-16624
Part Number: CCE-02381-S15 (Each) External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 26 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-02381-S15 (Each) --- External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-02381-S15 (Each) --- External Retaining Rings - 23.81x1.07x22.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 26 Available Now
Shaft Diameter (Ds) 24.99 mm	Clip Thickness (T) 2.00 mm _{+/- 0.076} (Equiv. 0.079 in.)	Groove Dia. (Dg) 23.50 mm _{+ 0.025 / - 0.076} (Equiv. 0.925 in.)	Approx. Loose Circlip ID (A) 22.90 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-02499H-S15 (Each) External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.95 AUD Regular price ~~$19.21 AUD~~ Sale price $6.95 AUD Unit price per Each
Shaft Diameter (Ds) 24.99 mm	Clip Thickness (T) 2.00 mm _{+/- 0.076} (Equiv. 0.079 in.)	Groove Dia. (Dg) 23.50 mm _{+ 0.025 / - 0.076} (Equiv. 0.925 in.)	Approx. Loose Circlip ID (A) 22.90 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-02499H-S15 (Each) External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $6.95 AUD Regular price ~~$19.21 AUD~~ Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
CCE-02499H-S15 (Each) --- External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02499H-S15 (Each) --- External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.95 AUD Regular price ~~$19.21 AUD~~ Sale price $6.95 AUD Unit price per 17 Available Now Sale
Shaft Diameter (Ds) 25.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 23.90 mm _{+ 0.00 / - 0.21} (Equiv. 0.941 in.)	Approx. Loose Circlip ID (A) 23.20 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 34.20 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-02500-S15 (Each) External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.77 AUD Regular price ~~$7.44 AUD~~ Sale price $2.77 AUD Unit price per Each
Shaft Diameter (Ds) 25.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 23.90 mm _{+ 0.00 / - 0.21} (Equiv. 0.941 in.)	Approx. Loose Circlip ID (A) 23.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 34.20 mm Min. Lug Diameter (h): 2.00 mm Standard: DIN471
Part Number: CCE-02500-S15 (Each) External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $2.77 AUD Regular price ~~$7.44 AUD~~ Sale price $2.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-02500-S15 (Each) --- External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02500-S15 (Each) --- External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.77 AUD Regular price ~~$7.44 AUD~~ Sale price $2.77 AUD Unit price per 8 Available Now Sale
Shaft Diameter (Ds) 25.40 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm _{+/- 0.076} (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.50 mm		Groove Width (W) 1.17 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 35.81 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-02540-S15 (Each) External Retaining Rings - 25.4x1.07x23.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 139 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each
Shaft Diameter (Ds) 25.40 mm	Clip Thickness (T) 1.07 mm _{+/- 0.051} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm _{+/- 0.076} (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm Clearance in Groove (C1): 35.81 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-02540-S15 (Each) External Retaining Rings - 25.4x1.07x23.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 139 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-02540-S15 (Each) --- External Retaining Rings - 25.4x1.07x23.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-02540-S15 (Each) --- External Retaining Rings - 25.4x1.07x23.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 139 Available Now
Shaft Diameter (Ds) 27.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.60 mm _{+ 0.00 / - 0.21} (Equiv. 1.008 in.)	Approx. Loose Circlip ID (A) 24.90 mm		Groove Width (W) 1.30 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 36.70 mm Clearance in Groove (C1): 34.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN471
Part Number: CCE-02700-S15 (Each) External Retaining Rings - 27x1.2x25.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.14 AUD Regular price ~~$8.24 AUD~~ Sale price $3.14 AUD Unit price per Each
Shaft Diameter (Ds) 27.00 mm	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.60 mm _{+ 0.00 / - 0.21} (Equiv. 1.008 in.)	Approx. Loose Circlip ID (A) 24.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm Clearance on Shaft (C1): 36.70 mm Clearance in Groove (C1): 34.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN471
Part Number: CCE-02700-S15 (Each) External Retaining Rings - 27x1.2x25.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.14 AUD Regular price ~~$8.24 AUD~~ Sale price $3.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-02700-S15 (Each) --- External Retaining Rings - 27x1.2x25.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-02700-S15 (Each) --- External Retaining Rings - 27x1.2x25.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.14 AUD Regular price ~~$8.24 AUD~~ Sale price $3.14 AUD Unit price per 13 Available Now Sale
Shaft Diameter (Ds) 31.75 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.87 mm _{+/- 0.102} (Equiv. 1.176 in.)	Approx. Loose Circlip ID (A) 29.36 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 42.93 mm Min. Lug Diameter (h): 2.31 mm Standard: MIL-16624
Part Number: CCE-03175-S15 (Each) External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 50 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each
Shaft Diameter (Ds) 31.75 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 29.87 mm _{+/- 0.102} (Equiv. 1.176 in.)	Approx. Loose Circlip ID (A) 29.36 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 42.93 mm Min. Lug Diameter (h): 2.31 mm Standard: MIL-16624
Part Number: CCE-03175-S15 (Each) External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 50 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-03175-S15 (Each) --- External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-03175-S15 (Each) --- External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 50 Available Now
Shaft Diameter (Ds) 34.93 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.79 mm _{+/- 0.102} (Equiv. 1.291 in.)	Approx. Loose Circlip ID (A) 32.31 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 45.72 mm Min. Lug Diameter (h): 2.31 mm Standard: MIL-16624
Part Number: CCE-03493-S15 (Each) External Retaining Rings - 34.93x1.27x32.79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.68 AUD Regular price ~~$9.94 AUD~~ Sale price $3.68 AUD Unit price per Each
Shaft Diameter (Ds) 34.93 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.79 mm _{+/- 0.102} (Equiv. 1.291 in.)	Approx. Loose Circlip ID (A) 32.31 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 45.72 mm Min. Lug Diameter (h): 2.31 mm Standard: MIL-16624
Part Number: CCE-03493-S15 (Each) External Retaining Rings - 34.93x1.27x32.79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $3.68 AUD Regular price ~~$9.94 AUD~~ Sale price $3.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-03493-S15 (Each) --- External Retaining Rings - 34.93x1.27x32.79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03493-S15 (Each) --- External Retaining Rings - 34.93x1.27x32.79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.68 AUD Regular price ~~$9.94 AUD~~ Sale price $3.68 AUD Unit price per 13 Available Now Sale
Shaft Diameter (Ds) 38.10 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.102} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.23 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 (Each) External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $5.05 AUD Regular price ~~$13.69 AUD~~ Sale price $5.05 AUD Unit price per Each
Shaft Diameter (Ds) 38.10 mm	Clip Thickness (T) 1.27 mm _{+/- 0.051} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.102} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.23 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 (Each) External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $5.05 AUD Regular price ~~$13.69 AUD~~ Sale price $5.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-03810-S15 (Each) --- External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03810-S15 (Each) --- External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.05 AUD Regular price ~~$13.69 AUD~~ Sale price $5.05 AUD Unit price per 30 Available Now Sale

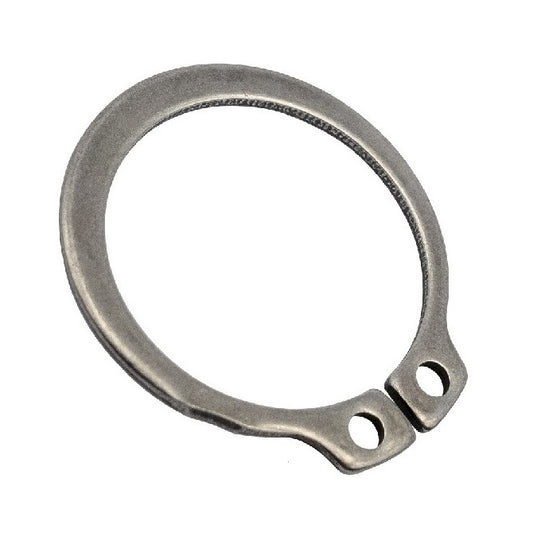

Shaft Diameter (Ds) 40.00 mm	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.06} (Equiv. 0.069 in.)	Groove Dia. (Dg) 37.50 mm _{+ 0.00 / - 0.25} (Equiv. 1.476 in.)	Approx. Loose Circlip ID (A) 36.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 (Each) External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 46 Available Now \| Further orders can be expected around Wed, Sep 16, 2026 Regular price $2.86 AUD Regular price ~~$7.48 AUD~~ Sale price $2.86 AUD Unit price per Each
Shaft Diameter (Ds) 40.00 mm	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.06} (Equiv. 0.069 in.)	Groove Dia. (Dg) 37.50 mm _{+ 0.00 / - 0.25} (Equiv. 1.476 in.)	Approx. Loose Circlip ID (A) 36.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 (Each) External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 46 Available Now \| Further orders can be expected around Wed, Sep 16, 2026 Regular price $2.86 AUD Regular price ~~$7.48 AUD~~ Sale price $2.86 AUD Unit price per Each View the product page first if you are unsure.
CCE-04000-S15 (Each) --- External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04000-S15 (Each) --- External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.86 AUD Regular price ~~$7.48 AUD~~ Sale price $2.86 AUD Unit price per 46 Available Now Sale
Shaft Diameter (Ds) 60.00 mm	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.07} (Equiv. 0.079 in.)	Groove Dia. (Dg) 56.70 mm _{+ 0.00 / - 0.30} (Equiv. 2.232 in.)	Approx. Loose Circlip ID (A) 55.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 71.80 mm Clearance in Groove (C1): 75.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06000-S15 (Each) External Retaining Rings - 60x2x56.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 25 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $12.14 AUD Regular price ~~$33.93 AUD~~ Sale price $12.14 AUD Unit price per Each
Shaft Diameter (Ds) 60.00 mm	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.07} (Equiv. 0.079 in.)	Groove Dia. (Dg) 56.70 mm _{+ 0.00 / - 0.30} (Equiv. 2.232 in.)	Approx. Loose Circlip ID (A) 55.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 71.80 mm Clearance in Groove (C1): 75.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06000-S15 (Each) External Retaining Rings - 60x2x56.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 25 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $12.14 AUD Regular price ~~$33.93 AUD~~ Sale price $12.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-06000-S15 (Each) --- External Retaining Rings - 60x2x56.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-06000-S15 (Each) --- External Retaining Rings - 60x2x56.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $12.14 AUD Regular price ~~$33.93 AUD~~ Sale price $12.14 AUD Unit price per 25 Available Now Sale
Shaft Diameter (Ds) 62.00 mm	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.07} (Equiv. 0.079 in.)	Groove Dia. (Dg) 58.70 mm _{+ 0.00 / - 0.30} (Equiv. 2.311 in.)	Approx. Loose Circlip ID (A) 57.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 74.00 mm Clearance in Groove (C1): 77.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06200-S15 (Each) External Retaining Rings - 62x2x58.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $13.50 AUD Regular price ~~$37.88 AUD~~ Sale price $13.50 AUD Unit price per Each
Shaft Diameter (Ds) 62.00 mm	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.07} (Equiv. 0.079 in.)	Groove Dia. (Dg) 58.70 mm _{+ 0.00 / - 0.30} (Equiv. 2.311 in.)	Approx. Loose Circlip ID (A) 57.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 74.00 mm Clearance in Groove (C1): 77.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06200-S15 (Each) External Retaining Rings - 62x2x58.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now \| Further orders can be expected around Sun, Jul 26, 2026 Regular price $13.50 AUD Regular price ~~$37.88 AUD~~ Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-06200-S15 (Each) --- External Retaining Rings - 62x2x58.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-06200-S15 (Each) --- External Retaining Rings - 62x2x58.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $13.50 AUD Regular price ~~$37.88 AUD~~ Sale price $13.50 AUD Unit price per 5 Available Now Sale

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (ABN: 79 121 865 414)
