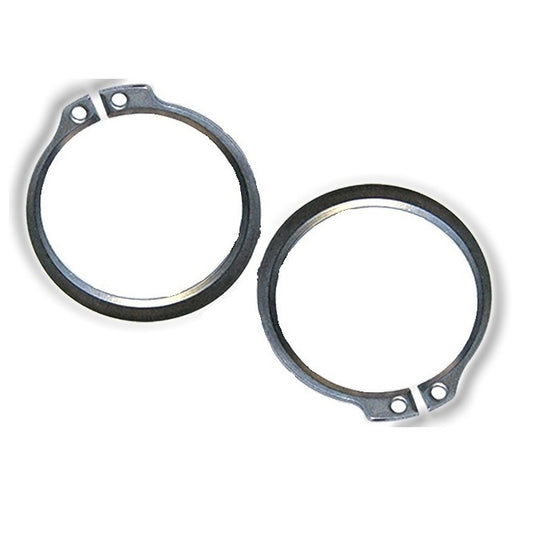

Collection: Retaining Rings - External - Circlips - Bevelled

Retaining Rings (With Images)

External

Circlips

67 Products in this selection

N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).
A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
Used in greasy or oily environments.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
25.40 mm	1.07 mm +0.00/-0.08	23.62 mm +/-0.05	23.24 mm +0.38/-0.00	1.65 - 2.95	0.94 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CEB-02540-C (6 Pcs) Circlips - 25.4 mm x 1.07 mm x 23.62 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Per 6 View the product page first if you are unsure.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
25.40 mm	1.07 mm +0.00/-0.08	23.62 mm +/-0.05	23.24 mm +0.38/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.65 - 2.95 Groove Width (W): 0.94 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-02540-C (6 Pcs) Circlips - 25.4 mm x 1.07 mm x 23.62 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Per 6 View the product page first if you are unsure.
CEB-02540-C (6 Pcs) --- Circlips - 25.4 mm x 1.07 mm x 23.62 mm Carbon Steel CEB-02540-C (6 Pcs) --- Circlips - 25.4 mm x 1.07 mm x 23.62 mm Carbon Steel Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Out of stock! Backorder Now
25.98 mm	1.07 mm +0.00/-0.08	24.16 mm +/-0.05	23.77 mm +0.38/-0.00	1.68 - 3.00	0.91 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-02598-C Circlips - 25.98 mm x 1.07 mm x 24.16 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
25.98 mm	1.07 mm +0.00/-0.08	24.16 mm +/-0.05	23.77 mm +0.38/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.68 - 3.00 Groove Width (W): 0.91 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-02598-C Circlips - 25.98 mm x 1.07 mm x 24.16 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
26.99 mm	1.27 mm +0.00/-0.10	25.20 mm +/-0.05	24.56 mm +0.63/-0.00	1.75 - 3.10	1.12 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-02699-C Circlips - 26.99 mm x 1.27 mm x 25.2 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
26.99 mm	1.27 mm +0.00/-0.10	25.20 mm +/-0.05	24.56 mm +0.63/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.75 - 3.10 Groove Width (W): 1.12 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-02699-C Circlips - 26.99 mm x 1.27 mm x 25.2 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
28.58 mm	1.27 mm +0.00/-0.10	26.70 mm +/-0.05	26.06 mm +0.63/-0.00	1.80 - 3.25	1.12 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CEB-02858-C (4 Pcs) Circlips - 28.58 mm x 1.27 mm x 26.7 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Apr 24, 2025 Regular price $23.14 AUD Regular price Sale price $23.14 AUD Unit price per Per 4 View the product page first if you are unsure.
28.58 mm	1.27 mm +0.00/-0.10	26.70 mm +/-0.05	26.06 mm +0.63/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.80 - 3.25 Groove Width (W): 1.12 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-02858-C (4 Pcs) Circlips - 28.58 mm x 1.27 mm x 26.7 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Apr 24, 2025 Regular price $23.14 AUD Regular price Sale price $23.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CEB-02858-C (4 Pcs) --- Circlips - 28.58 mm x 1.27 mm x 26.7 mm Carbon Steel CEB-02858-C (4 Pcs) --- Circlips - 28.58 mm x 1.27 mm x 26.7 mm Carbon Steel Regular price $23.14 AUD Regular price Sale price $23.14 AUD Unit price per Out of stock! Backorder Now
30.16 mm	1.27 mm +0.00/-0.10	28.14 mm +/-0.05	27.51 mm +0.63/-0.00	1.83 - 3.35	1.12 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-03016-C Circlips - 30.16 mm x 1.27 mm x 28.14 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
30.16 mm	1.27 mm +0.00/-0.10	28.14 mm +/-0.05	27.51 mm +0.63/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.83 - 3.35 Groove Width (W): 1.12 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-03016-C Circlips - 30.16 mm x 1.27 mm x 28.14 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
CEB-03016-C --- Circlips - 30.16 mm x 1.27 mm x 28.14 mm Carbon Spring Steel CEB-03016-C --- Circlips - 30.16 mm x 1.27 mm x 28.14 mm Carbon Spring Steel Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.27 mm +0.00/-0.10	29.62 mm +/-0.05	28.98 mm +0.63/-0.00	1.93 - 3.56	1.09 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CEB-03175-C (6 Pcs) Circlips - 31.75 mm x 1.27 mm x 29.62 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 6 View the product page first if you are unsure.
31.75 mm	1.27 mm +0.00/-0.10	29.62 mm +/-0.05	28.98 mm +0.63/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.93 - 3.56 Groove Width (W): 1.09 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-03175-C (6 Pcs) Circlips - 31.75 mm x 1.27 mm x 29.62 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 6 View the product page first if you are unsure.
CEB-03175-C (6 Pcs) --- Circlips - 31.75 mm x 1.27 mm x 29.62 mm Carbon Steel CEB-03175-C (6 Pcs) --- Circlips - 31.75 mm x 1.27 mm x 29.62 mm Carbon Steel Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Out of stock! Backorder Now
33.38 mm	1.27 mm +0.00/-0.10	31.09 mm +/-0.05	30.45 mm +0.63/-0.00	1.94 - 3.71	1.07 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-03338-C (125 Pcs) Circlips - 33.38 mm x 1.27 mm x 31.09 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $594.23 AUD Regular price Sale price $594.23 AUD Unit price per Per 125 View the product page first if you are unsure.
33.38 mm	1.27 mm +0.00/-0.10	31.09 mm +/-0.05	30.45 mm +0.63/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.94 - 3.71 Groove Width (W): 1.07 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-03338-C (125 Pcs) Circlips - 33.38 mm x 1.27 mm x 31.09 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $594.23 AUD Regular price Sale price $594.23 AUD Unit price per Per 125 View the product page first if you are unsure.
CEB-03338-C (125 Pcs) --- Circlips - 33.38 mm x 1.27 mm x 31.09 mm Carbon Spring Steel CEB-03338-C (125 Pcs) --- Circlips - 33.38 mm x 1.27 mm x 31.09 mm Carbon Spring Steel Regular price $594.23 AUD Regular price Sale price $594.23 AUD Unit price per Out of stock! Backorder Now
34.93 mm	1.27 mm +0.00/-0.10	32.56 mm +/-0.05	31.93 mm +0.63/-0.00	2.08 - 3.86	1.07 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-03493-C (125 Pcs) Circlips - 34.93 mm x 1.27 mm x 32.56 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $467.23 AUD Regular price Sale price $467.23 AUD Unit price per Per 125 View the product page first if you are unsure.
34.93 mm	1.27 mm +0.00/-0.10	32.56 mm +/-0.05	31.93 mm +0.63/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.08 - 3.86 Groove Width (W): 1.07 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-03493-C (125 Pcs) Circlips - 34.93 mm x 1.27 mm x 32.56 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $467.23 AUD Regular price Sale price $467.23 AUD Unit price per Per 125 View the product page first if you are unsure.
CEB-03493-C (125 Pcs) --- Circlips - 34.93 mm x 1.27 mm x 32.56 mm Carbon Spring Steel CEB-03493-C (125 Pcs) --- Circlips - 34.93 mm x 1.27 mm x 32.56 mm Carbon Spring Steel Regular price $467.23 AUD Regular price Sale price $467.23 AUD Unit price per Out of stock! Backorder Now
36.53 mm	1.27 mm +0.00/-0.10	34.11 mm +/-0.05	33.48 mm +0.63/-0.00	2.18 - 4.06	1.07 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E070
Part Number: CEB-03653-C Circlips - 36.53 mm x 1.27 mm x 34.11 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
36.53 mm	1.27 mm +0.00/-0.10	34.11 mm +/-0.05	33.48 mm +0.63/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.18 - 4.06 Groove Width (W): 1.07 mm +0.05/-0.00 Tool: PRS-E070
Part Number: CEB-03653-C Circlips - 36.53 mm x 1.27 mm x 34.11 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
38.10 mm	1.27 mm +0.00/-0.10	35.48 mm +/-0.05	34.85 mm +0.63/-0.00	2.31 - 4.27	1.04 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-03810-C (6 Pcs) Circlips - 38.1 mm x 1.27 mm x 35.48 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Per 6 View the product page first if you are unsure.
38.10 mm	1.27 mm +0.00/-0.10	35.48 mm +/-0.05	34.85 mm +0.63/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.31 - 4.27 Groove Width (W): 1.04 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-03810-C (6 Pcs) Circlips - 38.1 mm x 1.27 mm x 35.48 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Per 6 View the product page first if you are unsure.
CEB-03810-C (6 Pcs) --- Circlips - 38.1 mm x 1.27 mm x 35.48 mm Carbon Steel CEB-03810-C (6 Pcs) --- Circlips - 38.1 mm x 1.27 mm x 35.48 mm Carbon Steel Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Out of stock! Backorder Now
39.67 mm	1.57 mm +0.00/-0.13	37.06 mm +/-0.08	36.22 mm +0.84/-0.00	2.36 - 4.37	1.35 mm +0.05/-0.00
Material: Carbon Spring Steel Tool: PRS-E115
Part Number: CEB-03967-C Circlips - 39.67 mm x 1.57 mm x 37.06 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
39.67 mm	1.57 mm +0.00/-0.13	37.06 mm +/-0.08	36.22 mm +0.84/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.36 - 4.37 Groove Width (W): 1.35 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-03967-C Circlips - 39.67 mm x 1.57 mm x 37.06 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
41.28 mm	1.57 mm +0.00/-0.13	38.51 mm +/-0.08	37.67 mm +0.84/-0.00	2.46 - 4.57	1.35 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04128-C Circlips - 41.28 mm x 1.57 mm x 38.51 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
41.28 mm	1.57 mm +0.00/-0.13	38.51 mm +/-0.08	37.67 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.46 - 4.57 Groove Width (W): 1.35 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04128-C Circlips - 41.28 mm x 1.57 mm x 38.51 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
CEB-04128-C --- Circlips - 41.28 mm x 1.57 mm x 38.51 mm Carbon Steel CEB-04128-C --- Circlips - 41.28 mm x 1.57 mm x 38.51 mm Carbon Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
42.86 mm	1.57 mm +0.00/-0.13	39.95 mm +/-0.08	39.12 mm +0.84/-0.00	2.51 - 4.67	1.32 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04286-C Circlips - 42.86 mm x 1.57 mm x 39.95 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
42.86 mm	1.57 mm +0.00/-0.13	39.95 mm +/-0.08	39.12 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.51 - 4.67 Groove Width (W): 1.32 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04286-C Circlips - 42.86 mm x 1.57 mm x 39.95 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
CEB-04286-C --- Circlips - 42.86 mm x 1.57 mm x 39.95 mm Carbon Steel CEB-04286-C --- Circlips - 42.86 mm x 1.57 mm x 39.95 mm Carbon Steel Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
44.45 mm	1.57 mm +0.00/-0.13	41.43 mm +/-0.08	40.59 mm +0.84/-0.00	2.57 - 4.78	1.32 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04445-C Circlips - 44.45 mm x 1.57 mm x 41.43 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
44.45 mm	1.57 mm +0.00/-0.13	41.43 mm +/-0.08	40.59 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.57 - 4.78 Groove Width (W): 1.32 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04445-C Circlips - 44.45 mm x 1.57 mm x 41.43 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
CEB-04445-C --- Circlips - 44.45 mm x 1.57 mm x 41.43 mm Carbon Steel CEB-04445-C --- Circlips - 44.45 mm x 1.57 mm x 41.43 mm Carbon Steel Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
45.01 mm	1.57 mm +0.00/-0.13	41.91 mm +/-0.08	41.07 mm +0.84/-0.00	2.59 - 4.83	1.32 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04501-C (4 Pcs) Circlips - 45.01 mm x 1.57 mm x 41.91 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Per 4 View the product page first if you are unsure.
45.01 mm	1.57 mm +0.00/-0.13	41.91 mm +/-0.08	41.07 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.59 - 4.83 Groove Width (W): 1.32 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04501-C (4 Pcs) Circlips - 45.01 mm x 1.57 mm x 41.91 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Per 4 View the product page first if you are unsure.
CEB-04501-C (4 Pcs) --- Circlips - 45.01 mm x 1.57 mm x 41.91 mm Carbon Steel CEB-04501-C (4 Pcs) --- Circlips - 45.01 mm x 1.57 mm x 41.91 mm Carbon Steel Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Out of stock! Backorder Now
46.04 mm	1.57 mm +0.00/-0.13	42.88 mm +/-0.08	42.04 mm +0.84/-0.00	2.59 - 4.88	1.32 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04604-C (47 Pcs) Circlips - 46.04 mm x 1.57 mm x 42.88 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Per 47 View the product page first if you are unsure.
46.04 mm	1.57 mm +0.00/-0.13	42.88 mm +/-0.08	42.04 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.59 - 4.88 Groove Width (W): 1.32 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04604-C (47 Pcs) Circlips - 46.04 mm x 1.57 mm x 42.88 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Per 47 View the product page first if you are unsure.
CEB-04604-C (47 Pcs) --- Circlips - 46.04 mm x 1.57 mm x 42.88 mm Carbon Steel CEB-04604-C (47 Pcs) --- Circlips - 46.04 mm x 1.57 mm x 42.88 mm Carbon Steel Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Out of stock! Backorder Now
47.63 mm	1.57 mm +0.00/-0.13	44.40 mm +/-0.08	43.56 mm +0.84/-0.00	2.64 - 4.98	1.32 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-04763-C (32 Pcs) Circlips - 47.63 mm x 1.57 mm x 44.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $220.86 AUD Regular price Sale price $220.86 AUD Unit price per Per 32 View the product page first if you are unsure.
47.63 mm	1.57 mm +0.00/-0.13	44.40 mm +/-0.08	43.56 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.64 - 4.98 Groove Width (W): 1.32 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-04763-C (32 Pcs) Circlips - 47.63 mm x 1.57 mm x 44.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $220.86 AUD Regular price Sale price $220.86 AUD Unit price per Per 32 View the product page first if you are unsure.
CEB-04763-C (32 Pcs) --- Circlips - 47.63 mm x 1.57 mm x 44.4 mm Carbon Steel CEB-04763-C (32 Pcs) --- Circlips - 47.63 mm x 1.57 mm x 44.4 mm Carbon Steel Regular price $220.86 AUD Regular price Sale price $220.86 AUD Unit price per Out of stock! Backorder Now
50.01 mm	1.57 mm +0.00/-0.13	46.53 mm +/-0.08	46.20 mm +0.84/-0.00	2.69 - 5.08	1.30 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05001-C (3 Pcs) Circlips - 50.01 mm x 1.57 mm x 46.53 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 3 View the product page first if you are unsure.
50.01 mm	1.57 mm +0.00/-0.13	46.53 mm +/-0.08	46.20 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.69 - 5.08 Groove Width (W): 1.30 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-05001-C (3 Pcs) Circlips - 50.01 mm x 1.57 mm x 46.53 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 3 View the product page first if you are unsure.
CEB-05001-C (3 Pcs) --- Circlips - 50.01 mm x 1.57 mm x 46.53 mm Carbon Steel CEB-05001-C (3 Pcs) --- Circlips - 50.01 mm x 1.57 mm x 46.53 mm Carbon Steel Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Out of stock! Backorder Now
50.80 mm	1.57 mm +0.00/-0.13	47.32 mm +/-0.08	46.48 mm +0.84/-0.00	2.74 - 5.18	1.30 mm +0.05/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05080-C Circlips - 50.8 mm x 1.57 mm x 47.32 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each View the product page first if you are unsure.
50.80 mm	1.57 mm +0.00/-0.13	47.32 mm +/-0.08	46.48 mm +0.84/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.74 - 5.18 Groove Width (W): 1.30 mm +0.05/-0.00 Tool: PRS-E115
Part Number: CEB-05080-C Circlips - 50.8 mm x 1.57 mm x 47.32 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each View the product page first if you are unsure.
CEB-05080-C --- Circlips - 50.8 mm x 1.57 mm x 47.32 mm Carbon Steel CEB-05080-C --- Circlips - 50.8 mm x 1.57 mm x 47.32 mm Carbon Steel Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Out of stock! Backorder Now
52.39 mm	1.98 mm +0.00/-0.15	48.79 mm +/-0.08	47.78 mm +1.02/-0.00	2.82 - 5.28	1.70 mm +0.06/-0.00
Material: Carbon Spring Steel Tool: PRS-E115
Part Number: CEB-05239-C Circlips - 52.39 mm x 1.98 mm x 48.79 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
52.39 mm	1.98 mm +0.00/-0.15	48.79 mm +/-0.08	47.78 mm +1.02/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.82 - 5.28 Groove Width (W): 1.70 mm +0.06/-0.00 Tool: PRS-E115
Part Number: CEB-05239-C Circlips - 52.39 mm x 1.98 mm x 48.79 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
53.98 mm	1.98 mm +0.00/-0.15	50.27 mm +/-0.08	49.25 mm +1.02/-0.00	2.87 - 5.38	1.70 mm +0.06/-0.00
Material: Carbon Spring Steel Tool: PRS-E115
Part Number: CEB-05398-C Circlips - 53.98 mm x 1.98 mm x 50.27 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
53.98 mm	1.98 mm +0.00/-0.15	50.27 mm +/-0.08	49.25 mm +1.02/-0.00
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.87 - 5.38 Groove Width (W): 1.70 mm +0.06/-0.00 Tool: PRS-E115
Part Number: CEB-05398-C Circlips - 53.98 mm x 1.98 mm x 50.27 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
54.77 mm	1.98 mm +0.00/-0.15	51.00 mm +/-0.08	49.99 mm +1.02/-0.00	2.87 - 5.38	1.70 mm +0.06/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05477-C (2 Pcs) Circlips - 54.77 mm x 1.98 mm x 51 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 2 View the product page first if you are unsure.
54.77 mm	1.98 mm +0.00/-0.15	51.00 mm +/-0.08	49.99 mm +1.02/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.87 - 5.38 Groove Width (W): 1.70 mm +0.06/-0.00 Tool: PRS-E115
Part Number: CEB-05477-C (2 Pcs) Circlips - 54.77 mm x 1.98 mm x 51 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 2 View the product page first if you are unsure.
CEB-05477-C (2 Pcs) --- Circlips - 54.77 mm x 1.98 mm x 51 mm Carbon Steel CEB-05477-C (2 Pcs) --- Circlips - 54.77 mm x 1.98 mm x 51 mm Carbon Steel Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Out of stock! Backorder Now
57.15 mm	1.98 mm +0.00/-0.15	53.18 mm +/-0.08	52.22 mm +1.02/-0.00	2.95 - 5.59	1.68 mm +0.06/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05715-C (125 Pcs) Circlips - 57.15 mm x 1.98 mm x 53.18 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $1,170.95 AUD Regular price Sale price $1,170.95 AUD Unit price per Per 125 View the product page first if you are unsure.
57.15 mm	1.98 mm +0.00/-0.15	53.18 mm +/-0.08	52.22 mm +1.02/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.95 - 5.59 Groove Width (W): 1.68 mm +0.06/-0.00 Tool: PRS-E115
Part Number: CEB-05715-C (125 Pcs) Circlips - 57.15 mm x 1.98 mm x 53.18 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $1,170.95 AUD Regular price Sale price $1,170.95 AUD Unit price per Per 125 View the product page first if you are unsure.
CEB-05715-C (125 Pcs) --- Circlips - 57.15 mm x 1.98 mm x 53.18 mm Carbon Steel CEB-05715-C (125 Pcs) --- Circlips - 57.15 mm x 1.98 mm x 53.18 mm Carbon Steel Regular price $1,170.95 AUD Regular price Sale price $1,170.95 AUD Unit price per Out of stock! Backorder Now
58.74 mm	1.98 mm +0.00/-0.15	54.71 mm +/-0.08	53.70 mm +1.02/-0.00	3.00 - 5.64	1.65 mm +0.06/-0.00
Material: Carbon Steel Tool: PRS-E115
Part Number: CEB-05874-C (50 Pcs) Circlips - 58.74 mm x 1.98 mm x 54.71 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per Per 50 View the product page first if you are unsure.
58.74 mm	1.98 mm +0.00/-0.15	54.71 mm +/-0.08	53.70 mm +1.02/-0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.00 - 5.64 Groove Width (W): 1.65 mm +0.06/-0.00 Tool: PRS-E115
Part Number: CEB-05874-C (50 Pcs) Circlips - 58.74 mm x 1.98 mm x 54.71 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Thu, Mar 20, 2025 Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CEB-05874-C (50 Pcs) --- Circlips - 58.74 mm x 1.98 mm x 54.71 mm Carbon Steel CEB-05874-C (50 Pcs) --- Circlips - 58.74 mm x 1.98 mm x 54.71 mm Carbon Steel Regular price $359.95 AUD Regular price Sale price $359.95 AUD Unit price per Out of stock! Backorder Now
