Collection: R Clips - Single Coil - Stainless Steel

R Clips (With Images)

Single Coil

Stainless Steel
Steel

9 Products in this selection

Also known as internal hitch pins, bridge pins or humpback pins

Additional resources:
Split Pins

A more comprehensive listing may be found on the MBA Minibearings main store at R Clips - Single Coil - Stainless Steel.

Wire Thickness (d)	Length (L)	Material	Drill Hole Size	Inside Eye Diameter (D)	Shaft Size Range
1.10 mm	25.0 mm	304 Stainless Steel	1.19 mm	6.35 mm	4.76 to 6.35 mm
Material: Stainless Steel Approx. Bridge Length (D1): 7 mm
Part Number: RCL-011-025-S4 (20 Pcs) Single Coil R Clips - 1.1x25 mm - 304 Stainless Steel 29 units (580 pcs) Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20
Wire Thickness (d)	Length (L)	Material	Drill Hole Size	Indicative Image
1.10 mm	25.0 mm	304 Stainless Steel	1.19 mm
Material: Stainless Steel Inside Eye Diameter (D): 6.35 mm Shaft Size Range: 4.76 to 6.35 mm Approx. Bridge Length (D1): 7 mm
Part Number: RCL-011-025-S4 (20 Pcs) Single Coil R Clips - 1.1x25 mm - 304 Stainless Steel 29 units (580 pcs) Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure.
RCL-011-025-S4 (20 Pcs) --- Single Coil R Clips - 1.1x25 mm - 304 Stainless Steel RCL-011-025-S4 (20 Pcs) --- Single Coil R Clips - 1.1x25 mm - 304 Stainless Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 29 Available Now
1.20 mm	15.0 mm	304 Stainless Steel	1.59 mm	3.18 mm	3.18 to 4.76 mm
Material: Stainless Steel Approx. Bridge Length (D1): 5 mm
Part Number: RCL-012-015-S4 (20 Pcs) Single Coil R Clips - 1.2x15 mm - 304 Stainless Steel 19 units (380 pcs) Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Per 20
1.20 mm	15.0 mm	304 Stainless Steel	1.59 mm
Material: Stainless Steel Inside Eye Diameter (D): 3.18 mm Shaft Size Range: 3.18 to 4.76 mm Approx. Bridge Length (D1): 5 mm
Part Number: RCL-012-015-S4 (20 Pcs) Single Coil R Clips - 1.2x15 mm - 304 Stainless Steel 19 units (380 pcs) Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Per 20 View the product page first if you are unsure.
RCL-012-015-S4 (20 Pcs) --- Single Coil R Clips - 1.2x15 mm - 304 Stainless Steel RCL-012-015-S4 (20 Pcs) --- Single Coil R Clips - 1.2x15 mm - 304 Stainless Steel Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per 19 Available Now
1.60 mm	33.0 mm + 2.0 / - 2.0	316 Stainless Steel	1.98 mm	7.94 mm	6.35 to 12.70 mm
Material: Stainless Steel Approx. Bridge Length (D1): 13 mm
Part Number: RCL-016-033-S6 Single Coil R Clips - 1.6x33 mm - 316 Stainless Steel 181 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
1.60 mm	33.0 mm + 2.0 / - 2.0	316 Stainless Steel	1.98 mm
Material: Stainless Steel Inside Eye Diameter (D): 7.94 mm Shaft Size Range: 6.35 to 12.70 mm Approx. Bridge Length (D1): 13 mm
Part Number: RCL-016-033-S6 Single Coil R Clips - 1.6x33 mm - 316 Stainless Steel 181 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
RCL-016-033-S6 --- Single Coil R Clips - 1.6x33 mm - 316 Stainless Steel RCL-016-033-S6 --- Single Coil R Clips - 1.6x33 mm - 316 Stainless Steel Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 181 Available Now
3.00 mm	71.6 mm	304 Stainless Steel	3.50 mm	18.00 mm	10.00 to 16.00 mm
Material: Stainless Steel Approx. Bridge Length (D1): 26 mm
Part Number: RCL-030-072-S4 Single Coil R Clips - 3x71.6 mm - 304 Stainless Steel 44 Available Now \| Further orders can be expected around Tue, Jun 10, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each
3.00 mm	71.6 mm	304 Stainless Steel	3.50 mm
Material: Stainless Steel Inside Eye Diameter (D): 18.00 mm Shaft Size Range: 10.00 to 16.00 mm Approx. Bridge Length (D1): 26 mm
Part Number: RCL-030-072-S4 Single Coil R Clips - 3x71.6 mm - 304 Stainless Steel 44 Available Now \| Further orders can be expected around Tue, Jun 10, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each View the product page first if you are unsure.
RCL-030-072-S4 --- Single Coil R Clips - 3x71.6 mm - 304 Stainless Steel RCL-030-072-S4 --- Single Coil R Clips - 3x71.6 mm - 304 Stainless Steel Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 44 Available Now
3.20 mm	65.0 mm	304 Stainless Steel	3.57 mm	14.29 mm	11.11 to 19.05 mm
Material: Stainless Steel Approx. Bridge Length (D1): 24 mm
Part Number: RCL-032-065-S4 Single Coil R Clips - 3.2x65 mm - 304 Stainless Steel 7 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each
3.20 mm	65.0 mm	304 Stainless Steel	3.57 mm
Material: Stainless Steel Inside Eye Diameter (D): 14.29 mm Shaft Size Range: 11.11 to 19.05 mm Approx. Bridge Length (D1): 24 mm
Part Number: RCL-032-065-S4 Single Coil R Clips - 3.2x65 mm - 304 Stainless Steel 7 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each View the product page first if you are unsure.
RCL-032-065-S4 --- Single Coil R Clips - 3.2x65 mm - 304 Stainless Steel RCL-032-065-S4 --- Single Coil R Clips - 3.2x65 mm - 304 Stainless Steel Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per 7 Available Now
3.80 mm	75.0 mm	304 Stainless Steel	3.97 mm	19.05 mm	15.88 to 25.40 mm
Material: Stainless Steel Approx. Bridge Length (D1): 27 mm
Part Number: RCL-038-075-S4 Single Coil R Clips - 3.8x75 mm - 304 Stainless Steel 12 Available Now \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each
3.80 mm	75.0 mm	304 Stainless Steel	3.97 mm
Material: Stainless Steel Inside Eye Diameter (D): 19.05 mm Shaft Size Range: 15.88 to 25.40 mm Approx. Bridge Length (D1): 27 mm
Part Number: RCL-038-075-S4 Single Coil R Clips - 3.8x75 mm - 304 Stainless Steel 12 Available Now \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each View the product page first if you are unsure.
RCL-038-075-S4 --- Single Coil R Clips - 3.8x75 mm - 304 Stainless Steel RCL-038-075-S4 --- Single Coil R Clips - 3.8x75 mm - 304 Stainless Steel Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 12 Available Now

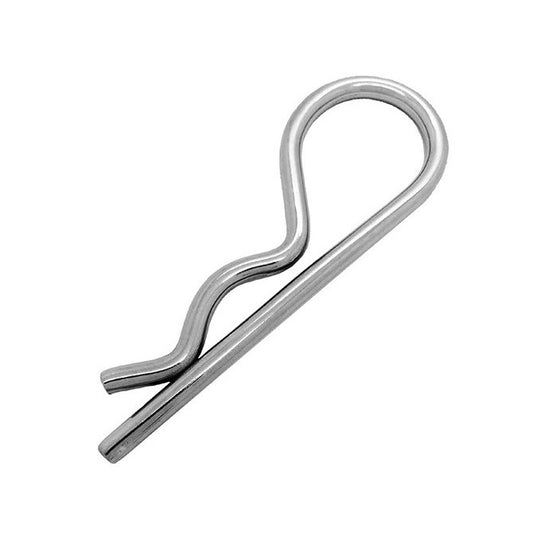

5.00 mm	96.0 mm	304 Stainless Steel	5.50 mm	23.81 mm	15.88 to 25.40 mm
Material: Stainless Steel Approx. Bridge Length (D1): 36 mm
Part Number: RCL-050-096-S4 Single Coil R Clips - 5x96 mm - 304 Stainless Steel 44 Available Now \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each
5.00 mm	96.0 mm	304 Stainless Steel	5.50 mm
Material: Stainless Steel Inside Eye Diameter (D): 23.81 mm Shaft Size Range: 15.88 to 25.40 mm Approx. Bridge Length (D1): 36 mm
Part Number: RCL-050-096-S4 Single Coil R Clips - 5x96 mm - 304 Stainless Steel 44 Available Now \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per Each View the product page first if you are unsure.
RCL-050-096-S4 --- Single Coil R Clips - 5x96 mm - 304 Stainless Steel Sale RCL-050-096-S4 --- Single Coil R Clips - 5x96 mm - 304 Stainless Steel Regular price $7.14 AUD Regular price ~~$8.56 AUD~~ Sale price $7.14 AUD Unit price per 44 Available Now Sale
6.00 mm	108.3 mm	304 Stainless Steel	7.00 mm	30.00 mm	28.00 to 40.00 mm
Material: Stainless Steel Approx. Bridge Length (D1): 40 mm
Part Number: RCL-060-108-S4 Single Coil R Clips - 6x108.3 mm - 304 Stainless Steel 19 Available Now \| Further orders can be expected around Tue, Jun 10, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each
6.00 mm	108.3 mm	304 Stainless Steel	7.00 mm
Material: Stainless Steel Inside Eye Diameter (D): 30.00 mm Shaft Size Range: 28.00 to 40.00 mm Approx. Bridge Length (D1): 40 mm
Part Number: RCL-060-108-S4 Single Coil R Clips - 6x108.3 mm - 304 Stainless Steel 19 Available Now \| Further orders can be expected around Tue, Jun 10, 2025 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each View the product page first if you are unsure.
RCL-060-108-S4 --- Single Coil R Clips - 6x108.3 mm - 304 Stainless Steel Sale RCL-060-108-S4 --- Single Coil R Clips - 6x108.3 mm - 304 Stainless Steel Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per 19 Available Now Sale
6.20 mm	102.0 mm	304 Stainless Steel	6.75 mm	23.81 mm	19.05 to 25.40 mm
Material: Stainless Steel Approx. Bridge Length (D1): 43 mm
Part Number: RCL-062-102-S4 Single Coil R Clips - 6.2x102 mm - 304 Stainless Steel 17 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $7.59 AUD Regular price ~~$9.11 AUD~~ Sale price $7.59 AUD Unit price per Each
6.20 mm	102.0 mm	304 Stainless Steel	6.75 mm
Material: Stainless Steel Inside Eye Diameter (D): 23.81 mm Shaft Size Range: 19.05 to 25.40 mm Approx. Bridge Length (D1): 43 mm
Part Number: RCL-062-102-S4 Single Coil R Clips - 6.2x102 mm - 304 Stainless Steel 17 Available Now \| Further orders can be expected around Wed, May 07, 2025 Regular price $7.59 AUD Regular price ~~$9.11 AUD~~ Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
RCL-062-102-S4 --- Single Coil R Clips - 6.2x102 mm - 304 Stainless Steel Sale RCL-062-102-S4 --- Single Coil R Clips - 6.2x102 mm - 304 Stainless Steel Regular price $7.59 AUD Regular price ~~$9.11 AUD~~ Sale price $7.59 AUD Unit price per 17 Available Now Sale
