Pulleys - Metric Timing - 5.000mm Pitch - T5

Pulleys -> Metric Timing -> 5.000mm Pitch -> T5

There are 3 products in the sub-categories of Pulleys - Metric Timing - 5.000mm Pitch - T5. Browse the Pulleys - Metric Timing - 5.000mm Pitch - T5 products table. To narrow down the selection, please choose a sub-category from the links below.

Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide

A selection of 10mm Wide T5 5.000mm Pitch Metric Timing Pulleys. Timing...

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide

Metric Timing Pulleys - 32 tooth - 16x8 mm - Aluminium with Steel Flanges

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide

A selection of 16mm Wide T5 5.000mm Pitch Metric Timing Pulleys. Timing...

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide

Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide

A selection of 25mm Wide T5 5.000mm Pitch Metric Timing Pulleys. Timing...

Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide

Category Details

This category includes various types of metric timing pulleys.
  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pulleys - Metric Timing - 5.000mm Pitch - T5 category on the MBA Minibearings main store.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Metric Timing Pulleys - 10 tooth - 25x6 mm 5mm Pitch - Aluminium with Steel Flanges Pulley
Number of Teeth
10

Max Belt Width
25.00
mm

(Equiv. 0.984 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Plain
Locking Type
None
Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges
Material: Aluminium with Steel Flanges    Type: 2    Pitch Dia. (PD): 15.91 mm    Flange Diameter (FD): 20.0 mm    Overall Length: 36.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-010-250FF-AS-N-060 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 17, 2026
$38.68 AUD
$38.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Metric Timing Pulleys - 10 tooth - 25x6 mm 5mm Pitch - Aluminium with Steel Flanges Pulley
Number of Teeth
10

Max Belt Width
25.00
mm

(Equiv. 0.984 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Plain
Metric Timing Pulleys - 10 tooth - 25x6 mm - Aluminium with Steel Flanges
Material: Aluminium with Steel Flanges    Locking Type: None    Type: 2    Pitch Dia. (PD): 15.91 mm    Flange Diameter (FD): 20.0 mm    Overall Length: 36.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide
Part Number: P-050T-010-250FF-AS-N-060 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 17, 2026
$38.68 AUD
$38.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

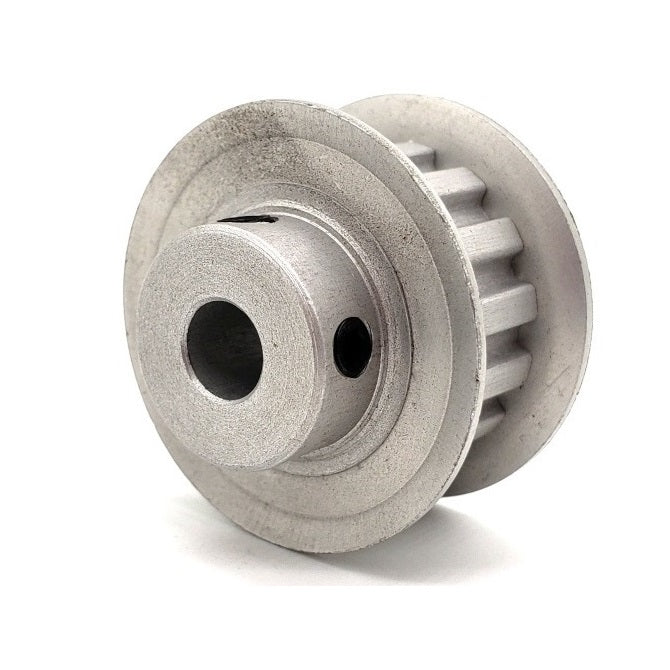

Metric Timing Pulleys - 15 tooth - 10x6 mm 5mm Pitch - Aluminium Pulley
Number of Teeth
15

Max Belt Width
10.00
mm

(Equiv. 0.394 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Locking Type
Set Screws (2)
Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 26.0 mm    Overall Length: 21.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Deleted Item. Available while stocks last.
Part Number: P-050T-015-100FF-AL-G-060 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Metric Timing Pulleys - 15 tooth - 10x6 mm 5mm Pitch - Aluminium Pulley
Number of Teeth
15

Max Belt Width
10.00
mm

(Equiv. 0.394 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Metric Timing Pulleys - 15 tooth - 10x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screws (2)    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 26.0 mm    Overall Length: 21.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 10mm Wide
Deleted Item. Available while stocks last.
Part Number: P-050T-015-100FF-AL-G-060 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.

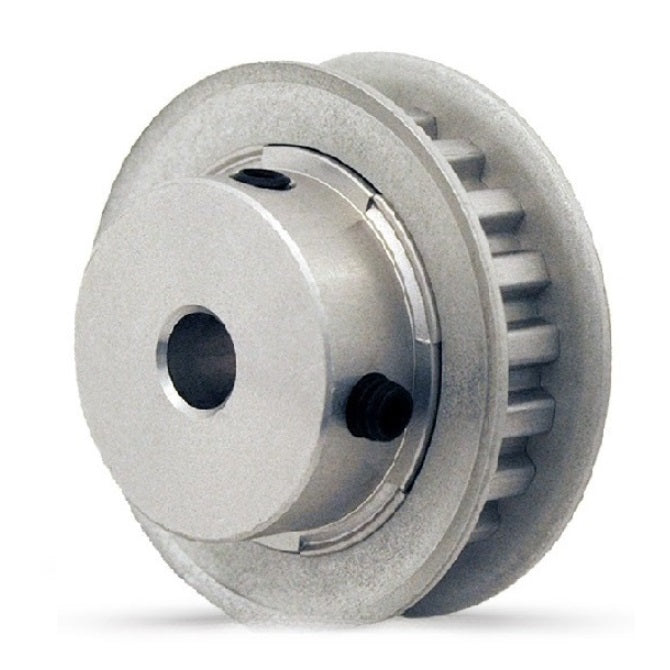

Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium with Steel Flanges Pulley
Number of Teeth
32

Max Belt Width
16.00
mm

(Equiv. 0.63 in.)
Bore (d)
8.000
mm

(Equiv. 0.315 in.)
Bore Type
Plain
Locking Type
None
Metric Timing Pulleys - 32 tooth - 16x8 mm - Aluminium with Steel Flanges
Material: Aluminium with Steel Flanges    Type: 2    Pitch Dia. (PD): 50.91 mm    Flange Diameter (FD): 54.0 mm    Overall Length: 27.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-032-160FF-AS-N-080 (Each)
3 Available Now | Further orders can be expected around Tue, Feb 17, 2026
$40.23 AUD
$48.27 AUD $40.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 3 available can be backordered.
Metric Timing Pulleys - 32 tooth - 16x8 mm 5mm Pitch - Aluminium with Steel Flanges Pulley
Number of Teeth
32

Max Belt Width
16.00
mm

(Equiv. 0.63 in.)
Bore (d)
8.000
mm

(Equiv. 0.315 in.)
Bore Type
Plain
Metric Timing Pulleys - 32 tooth - 16x8 mm - Aluminium with Steel Flanges
Material: Aluminium with Steel Flanges    Locking Type: None    Type: 2    Pitch Dia. (PD): 50.91 mm    Flange Diameter (FD): 54.0 mm    Overall Length: 27.0 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 16mm Wide
Part Number: P-050T-032-160FF-AS-N-080 (Each)
3 Available Now | Further orders can be expected around Tue, Feb 17, 2026
$40.23 AUD
$48.27 AUD $40.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
