Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide

Pulleys -> Metric Timing -> 5.000mm Pitch -> HTD -> 15mm Wide

There are 5 products in the sub-categories of Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide. Browse the Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide products table.

Category Details

A selection of 15mm Wide HTD 5.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 5.000mm Pitch Timing Belts. Suits belts 15.0 to 16.0mm wide.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • Finished bore with set screw locking

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide category on the MBA Minibearings main store.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Number of Teeth
14

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Locking Type
Set Screw
Metric Timing Pulleys - 14 tooth - 15x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 22.27 mm    Flange Diameter (FD): 25.4 mm    Overall Length: 26.2 mm    Hub Diameter (HD): 12.7
Part Number: P-050H-014-150FF-AL-G-060 (Each)
Metric Timing Pulleys - 14 tooth - 15x6 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$19.86 AUD
$37.86 AUD $19.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
14

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Metric Timing Pulleys - 14 tooth - 15x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 22.27 mm    Flange Diameter (FD): 25.4 mm    Overall Length: 26.2 mm    Hub Diameter (HD): 12.7
Part Number: P-050H-014-150FF-AL-G-060 (Each)
Metric Timing Pulleys - 14 tooth - 15x6 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$19.86 AUD
$37.86 AUD $19.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
15

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Locking Type
Set Screw

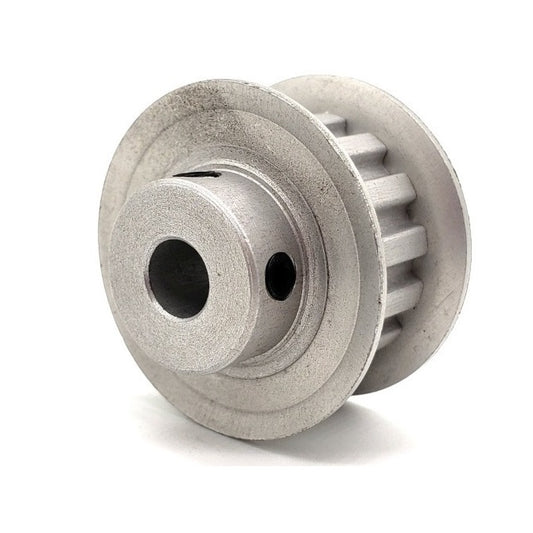

Metric Timing Pulleys - 15 tooth - 15x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 27.0 mm    Overall Length: 26.2 mm    Hub Diameter (HD): 14.3
Part Number: P-050H-015-150FF-AL-G-060 (Each)
Metric Timing Pulleys - 15 tooth - 15x6 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$19.95 AUD
$38.13 AUD $19.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth
15

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Bore Type
Finished
Metric Timing Pulleys - 15 tooth - 15x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 27.0 mm    Overall Length: 26.2 mm    Hub Diameter (HD): 14.3
Part Number: P-050H-015-150FF-AL-G-060 (Each)
Metric Timing Pulleys - 15 tooth - 15x6 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$19.95 AUD
$38.13 AUD $19.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth
32

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
8.000
mm

(Equiv. 0.315 in.)
Bore Type
Finished
Locking Type
Set Screw
Metric Timing Pulleys - 32 tooth - 15x8 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 50.91 mm    Overall Length: 27.8 mm    Hub Diameter (HD): 31.8
Part Number: P-050H-032-150P-AL-G-080 (Each)
Metric Timing Pulleys - 32 tooth - 15x8 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$38.05 AUD
$72.90 AUD $38.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
32

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
8.000
mm

(Equiv. 0.315 in.)
Bore Type
Finished
Metric Timing Pulleys - 32 tooth - 15x8 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 50.91 mm    Overall Length: 27.8 mm    Hub Diameter (HD): 31.8
Part Number: P-050H-032-150P-AL-G-080 (Each)
Metric Timing Pulleys - 32 tooth - 15x8 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$38.05 AUD
$72.90 AUD $38.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
38

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
10.000
mm

(Equiv. 0.394 in.)
Bore Type
Finished
Locking Type
Set Screw

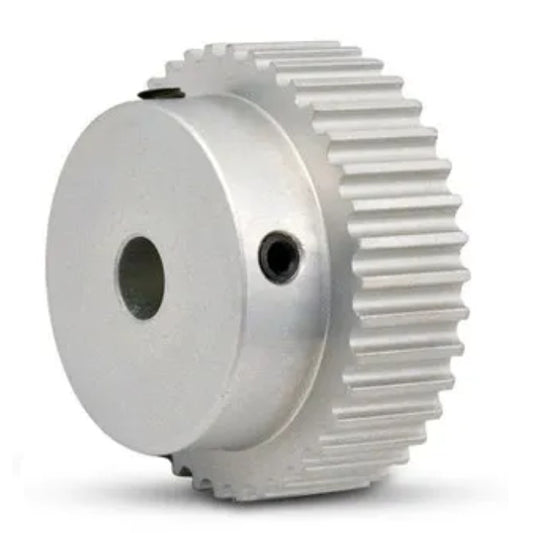

Metric Timing Pulleys - 38 tooth - 15x10 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 60.45 mm    Overall Length: 10.3 mm    Hub Diameter (HD): 38.1
Part Number: P-050H-038-150P-AL-G-100 (Each)
Metric Timing Pulleys - 38 tooth - 15x10 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$49.50 AUD
$95.10 AUD $49.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
38

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
10.000
mm

(Equiv. 0.394 in.)
Bore Type
Finished
Metric Timing Pulleys - 38 tooth - 15x10 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 60.45 mm    Overall Length: 10.3 mm    Hub Diameter (HD): 38.1
Part Number: P-050H-038-150P-AL-G-100 (Each)
Metric Timing Pulleys - 38 tooth - 15x10 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$49.50 AUD
$95.10 AUD $49.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
72

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Bore Type
Finished
Locking Type
Set Screw

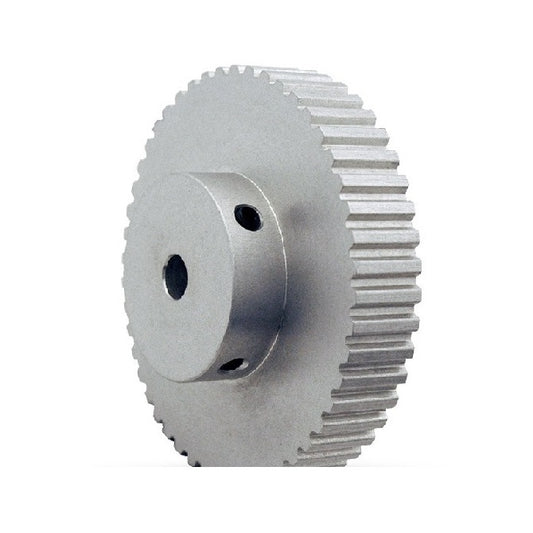

Metric Timing Pulleys - 72 tooth - 15x9.525 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 114.54 mm    Overall Length: 10.3 mm    Hub Diameter (HD): 38.1
Part Number: P-050H-072-150P-AL-G-095 (Each)
Metric Timing Pulleys - 72 tooth - 15x9.525 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$93.23 AUD
$179.34 AUD $93.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
72

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
9.525
mm

(Equiv. 0.375 in.)
Bore Type
Finished
Metric Timing Pulleys - 72 tooth - 15x9.525 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 114.54 mm    Overall Length: 10.3 mm    Hub Diameter (HD): 38.1
Part Number: P-050H-072-150P-AL-G-095 (Each)
Metric Timing Pulleys - 72 tooth - 15x9.525 mm 5mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Tue, Jan 27, 2026
$93.23 AUD
$179.34 AUD $93.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
