Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide

Pulleys -> Metric Timing -> 5.000mm Pitch -> GT -> 15mm Wide

There are 4 products in the sub-categories of Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide. Browse the Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide products table. To narrow down the selection, please choose a sub-category from the links below.

Metric Timing Pulleys - 36 tooth - 15 mm - Determined by Taperlock Series - Cast Iron

Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Taperlock

A selection of Taperlock 15mm Wide GT 5.000mm Pitch Metric Timing Pulleys....

Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Taperlock

Metric Timing Pulleys - 19 tooth - 15x6.35 mm - Aluminium

Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore

A selection of Through Bore 15mm Wide GT 5.000mm Pitch Metric Timing...

Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore

Category Details

This category includes various types of metric timing pulleys.
  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide category on the MBA Minibearings main store.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Number of Teeth
19

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Bore Type
Finished
Locking Type
Set Screw
Metric Timing Pulleys - 19 tooth - 15x6.35 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 30.23 mm    Flange Diameter (FD): 33.3 mm    Overall Length: 26.2 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Part Number: P-050G-019-150FF-AL-G-064 (Each)
Metric Timing Pulleys - 19 tooth - 15x6.35 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$27.23 AUD
$52.03 AUD $27.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
19

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Bore Type
Finished
Metric Timing Pulleys - 19 tooth - 15x6.35 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 30.23 mm    Flange Diameter (FD): 33.3 mm    Overall Length: 26.2 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Part Number: P-050G-019-150FF-AL-G-064 (Each)
Metric Timing Pulleys - 19 tooth - 15x6.35 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$27.23 AUD
$52.03 AUD $27.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth
20

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Bore Type
Finished
Locking Type
Set Screw
Metric Timing Pulleys - 20 tooth - 15x6.35 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 31.82 mm    Flange Diameter (FD): 34.9 mm    Overall Length: 26.2 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Part Number: P-050G-020-150FF-AL-G-064 (Each)
Metric Timing Pulleys - 20 tooth - 15x6.35 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$28.41 AUD
$54.41 AUD $28.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth
20

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Bore Type
Finished
Metric Timing Pulleys - 20 tooth - 15x6.35 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 31.82 mm    Flange Diameter (FD): 34.9 mm    Overall Length: 26.2 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Part Number: P-050G-020-150FF-AL-G-064 (Each)
Metric Timing Pulleys - 20 tooth - 15x6.35 mm 5mm Pitch - Aluminium Pulley
2 Available Now | Further orders can be expected around Wed, Jan 28, 2026
$28.41 AUD
$54.41 AUD $28.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Number of Teeth
36

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
Determined by Taperlock
mm
Bore Type
Suits Taperlock 1108

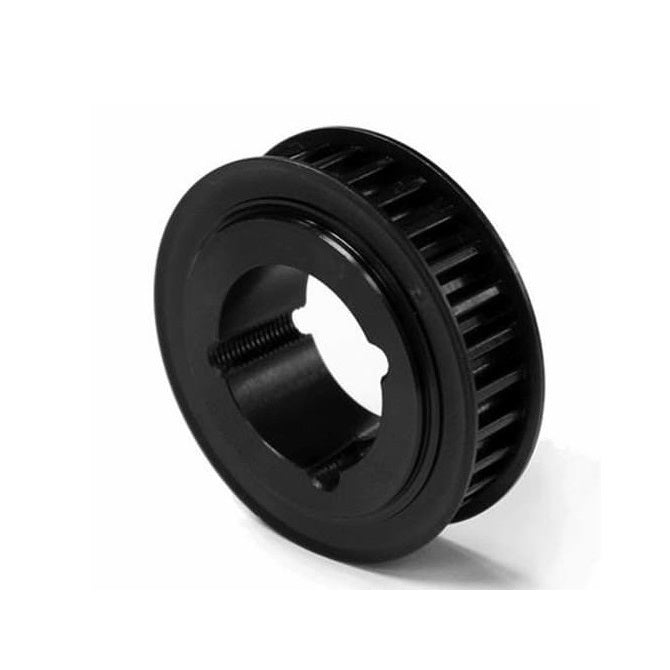

Metric Timing Pulleys - 36 tooth - 15 mm - Determined by Taperlock Series - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 57.27 mm    Flange Diameter (FD): 60.3 mm    Overall Length: 22.3 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Taperlock
Part Number: P-050G-036-150FF-CB-T1108 (Each)
Metric Timing Pulleys - 36 tooth - 15 mm - Determined by Taperlock 5mm Pitch - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 28, 2026
$196.68 AUD
$196.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Number of Teeth
36

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
Determined by Taperlock
mm
Bore Type
Suits Taperlock 1108
Metric Timing Pulleys - 36 tooth - 15 mm - Determined by Taperlock Series - Cast Iron
Material: Cast Iron    Type: 2    Pitch Dia. (PD): 57.27 mm    Flange Diameter (FD): 60.3 mm    Overall Length: 22.3 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Taperlock
Part Number: P-050G-036-150FF-CB-T1108 (Each)
Metric Timing Pulleys - 36 tooth - 15 mm - Determined by Taperlock 5mm Pitch - Cast Iron Pulley
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 28, 2026
$196.68 AUD
$196.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Number of Teeth
48

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
12.000
mm

(Equiv. 0.472 in.)
Bore Type
Finished
Locking Type
Set Screw

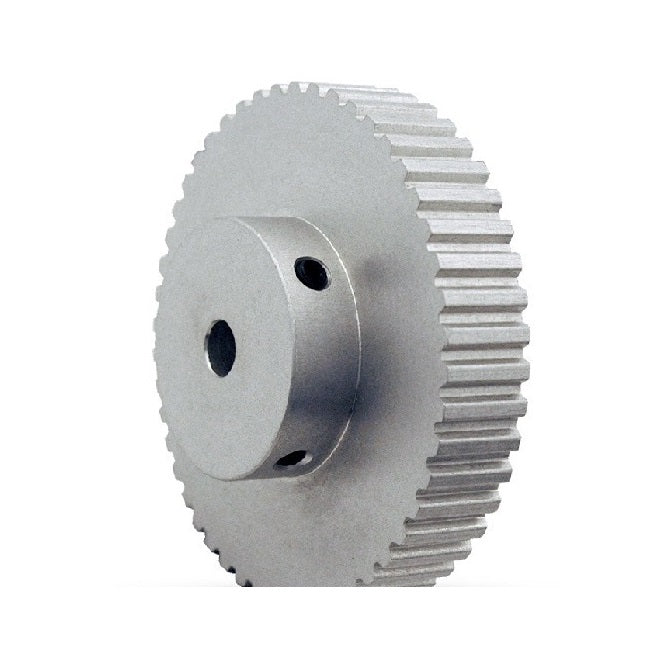

Metric Timing Pulleys - 48 tooth - 15x12 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 76.36 mm    Overall Length: 32.5 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Deleted Item. Available while stocks last.
Part Number: P-050G-048-150P-AL-G-120 (PK-2)
Metric Timing Pulleys - 48 tooth - 15x12 mm 5mm Pitch - Aluminium Pulley
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
48

Max Belt Width
15.00
mm

(Equiv. 0.591 in.)
Bore (d)
12.000
mm

(Equiv. 0.472 in.)
Bore Type
Finished
Metric Timing Pulleys - 48 tooth - 15x12 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 76.36 mm    Overall Length: 32.5 mm
Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - Through Bore
Deleted Item. Available while stocks last.
Part Number: P-050G-048-150P-AL-G-120 (PK-2)
Metric Timing Pulleys - 48 tooth - 15x12 mm 5mm Pitch - Aluminium Pulley
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
