Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

10 Products in this selection
  • Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
  • Aluminium alloy
  • Finished through bore ready to assemble
  • Set screw locking
Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts

A more comprehensive listing may be found on the MBA Minibearings main store at Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore.
Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
10
6.00
mm 		3.000
mm 		Finished
Set Screw
1090971 | P-030H-010-060FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium
Material: Aluminium    Type: 1    Pitch Dia. (PD): 9.55 mm    Flange Diameter (FD): 12.8 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 12.8 mm
Part Number: P-030H-010-060FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$43.32 AUD
$43.32 AUD
Each
Teeth Max Belt Width Bore (d) Bore Type Indicative
10
6.00
mm 		3.000
mm 		Finished
1090971 | P-030H-010-060FH-AL-G-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 1    Pitch Dia. (PD): 9.55 mm    Flange Diameter (FD): 12.8 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 12.8 mm
Part Number: P-030H-010-060FH-AL-G-030 Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$43.32 AUD
$43.32 AUD
Each
View the product page first if you are unsure.
12
6.00
mm 		4.000
mm 		Finished
Set Screw
1097796 | P-030H-012-060FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 6x4 mm - Aluminium
Material: Aluminium    Type: 1    Pitch Dia. (PD): 11.45 mm    Flange Diameter (FD): 14.7 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 14.7 mm
Part Number: P-030H-012-060FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 6x4 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.77 AUD
$38.77 AUD
Each
12
6.00
mm 		4.000
mm 		Finished
1097796 | P-030H-012-060FH-AL-G-040 --- Metric Timing Pulleys - 12 tooth - 6x4 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 1    Pitch Dia. (PD): 11.45 mm    Flange Diameter (FD): 14.7 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 14.7 mm
Part Number: P-030H-012-060FH-AL-G-040 Metric Timing Pulleys - 12 tooth - 6x4 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.77 AUD
$38.77 AUD
Each
View the product page first if you are unsure.
13
6.00
mm 		4.000
mm 		Finished
Set Screw
1105730 | P-030H-013-060FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 6x4 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 12.41 mm    Flange Diameter (FD): 15.5 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 15.5 mm
Part Number: P-030H-013-060FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 6x4 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$39.14 AUD
$39.14 AUD
Each
13
6.00
mm 		4.000
mm 		Finished
1105730 | P-030H-013-060FF-AL-G-040 --- Metric Timing Pulleys - 13 tooth - 6x4 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 12.41 mm    Flange Diameter (FD): 15.5 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 15.5 mm
Part Number: P-030H-013-060FF-AL-G-040 Metric Timing Pulleys - 13 tooth - 6x4 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$39.14 AUD
$39.14 AUD
Each
View the product page first if you are unsure.
14
6.00
mm 		6.000
mm 		Finished
Set Screw
1106637 | P-030H-014-060FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 6x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 13.36 mm    Flange Diameter (FD): 16.1 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 16.1 mm
Part Number: P-030H-014-060FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 6x6 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.86 AUD
$38.86 AUD
Each
14
6.00
mm 		6.000
mm 		Finished
1106637 | P-030H-014-060FF-AL-G-060 --- Metric Timing Pulleys - 14 tooth - 6x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 13.36 mm    Flange Diameter (FD): 16.1 mm    Overall Length: 14.5 mm    Hub Diameter (HD): 16.1 mm
Part Number: P-030H-014-060FF-AL-G-060 Metric Timing Pulleys - 14 tooth - 6x6 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.86 AUD
$38.86 AUD
Each
View the product page first if you are unsure.
16
6.00
mm 		4.763
mm 		Finished
Set Screw
1113940 | P-030H-016-060FF-AL-G-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 15.27 mm    Flange Diameter (FD): 18.3 mm    Overall Length: 14.3 mm    Hub Diameter (HD): 18.3 mm
Part Number: P-030H-016-060FF-AL-G-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$31.32 AUD
$37.58 AUD $31.32 AUD
Each
16
6.00
mm 		4.763
mm 		Finished
1113940 | P-030H-016-060FF-AL-G-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 15.27 mm    Flange Diameter (FD): 18.3 mm    Overall Length: 14.3 mm    Hub Diameter (HD): 18.3 mm
Part Number: P-030H-016-060FF-AL-G-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$31.32 AUD
$37.58 AUD $31.32 AUD
Each
View the product page first if you are unsure.
26
6.00
mm 		6.350
mm 		Finished
Set Screw
1136965 | P-030H-026-060FF-AL-G-064 --- Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 24.82 mm    Flange Diameter (FD): 28.7 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 15.9 mm
Part Number: P-030H-026-060FF-AL-G-064 Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium
3 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.14 AUD
$38.14 AUD
Each
26
6.00
mm 		6.350
mm 		Finished
1136965 | P-030H-026-060FF-AL-G-064 --- Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 24.82 mm    Flange Diameter (FD): 28.7 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 15.9 mm
Part Number: P-030H-026-060FF-AL-G-064 Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium
3 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$38.14 AUD
$38.14 AUD
Each
View the product page first if you are unsure.
36
6.00
mm 		6.000
mm 		Finished
Set Screw
1148991 | P-030H-036-060FF-AL-G-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 34.36 mm    Flange Diameter (FD): 37.4 mm    Overall Length: 18.3 mm    Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-060FF-AL-G-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium
12 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$49.77 AUD
$49.77 AUD
Each
36
6.00
mm 		6.000
mm 		Finished
1148991 | P-030H-036-060FF-AL-G-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 34.36 mm    Flange Diameter (FD): 37.4 mm    Overall Length: 18.3 mm    Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-060FF-AL-G-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium
12 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$49.77 AUD
$49.77 AUD
Each
View the product page first if you are unsure.
40
6.00
mm 		6.000
mm 		Finished
Set Screw
1152715 | P-030H-040-060FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 41.3 mm    Overall Length: 18.3 mm    Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-060FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$50.14 AUD
$50.14 AUD
Each
40
6.00
mm 		6.000
mm 		Finished
1152715 | P-030H-040-060FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 41.3 mm    Overall Length: 18.3 mm    Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-060FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$50.14 AUD
$50.14 AUD
Each
View the product page first if you are unsure.
40
6.00
mm 		6.350
mm 		Finished
Set Screw

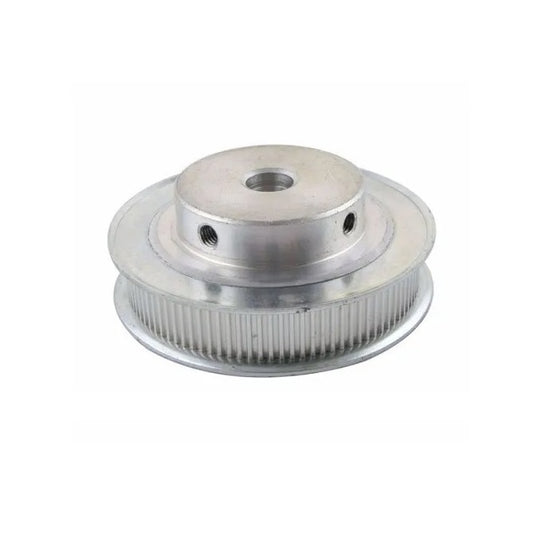

1152726 | P-030H-040-060FF-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 41.3 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-060FF-AL-G-064 Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$52.32 AUD
$52.32 AUD
Each
40
6.00
mm 		6.350
mm 		Finished
1152726 | P-030H-040-060FF-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 41.3 mm    Overall Length: 17.5 mm    Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-060FF-AL-G-064 Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$52.32 AUD
$52.32 AUD
Each
View the product page first if you are unsure.
60
6.00
mm 		8.000
mm 		Finished
Set Screw
1168254 | P-030H-060-060P-AL-G-080 --- Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 57.27 mm    Overall Length: 18.6 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-060-060P-AL-G-080 Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$73.95 AUD
$73.95 AUD
Each
60
6.00
mm 		8.000
mm 		Finished
1168254 | P-030H-060-060P-AL-G-080 --- Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 57.27 mm    Overall Length: 18.6 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-060-060P-AL-G-080 Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium
2 Available Now | Further orders can be expected around Wed, Jun 11, 2025
$73.95 AUD
$73.95 AUD
Each
View the product page first if you are unsure.
