Collection: Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide

Pulleys -> Metric Timing -> 2.500mm Pitch T2.5 6mm Wide

There are 7 products in the sub-categories of Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide. Browse the Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide products table.

Category Details

A selection of 2.500mm Pitch T2.5 6mm Wide Metric Timing Pulleys. Timing Pulleys to suit T Series 2.500mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Aluminium Alloy
Finished through bore ready to assemble
Set screw locking

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide category on the MBA Minibearings main store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image

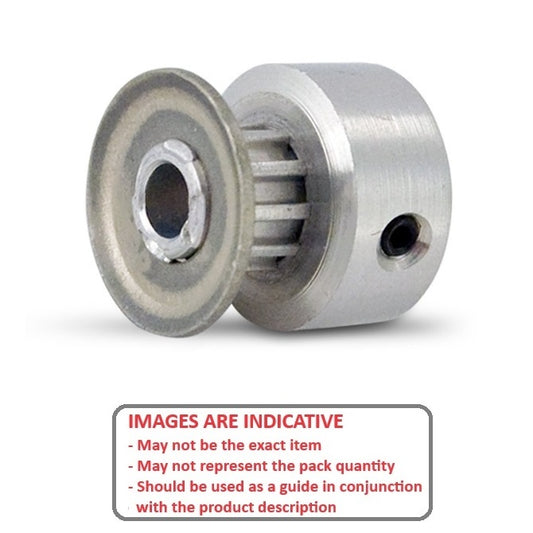

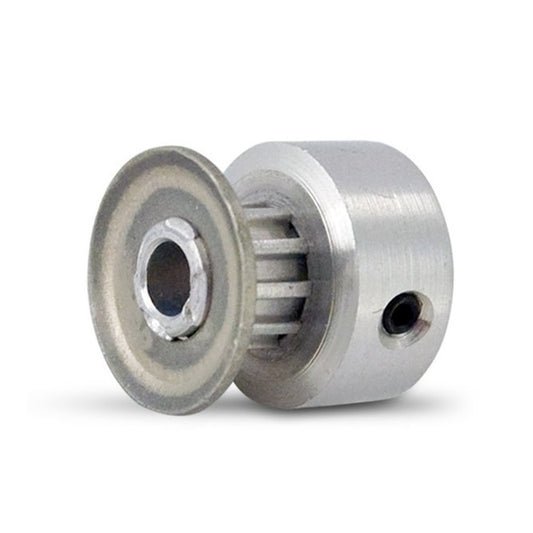

Metric Timing Pulleys - 12 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 13.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-012-060FH-AL-G-030 (Each) 3 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $20.95 AUD Regular price ~~$39.92 AUD~~ Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 3 available can be backordered.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Metric Timing Pulleys - 12 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 12	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 13.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-012-060FH-AL-G-030 (Each) 3 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $20.95 AUD Regular price ~~$39.92 AUD~~ Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
P-025T-012-060FH-AL-G-030 (Each) --- Metric Timing Pulleys - 12 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Sale P-025T-012-060FH-AL-G-030 (Each) --- Metric Timing Pulleys - 12 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $20.95 AUD Regular price ~~$39.92 AUD~~ Sale price $20.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now Sale
Metric Timing Pulleys - 14 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.14 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-014-060FH-AL-G-030 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 14 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 14	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 3.000 mm (Equiv. 0.118 in.)	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.14 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-014-060FH-AL-G-030 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-025T-014-060FH-AL-G-030 (Each) --- Metric Timing Pulleys - 14 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley P-025T-014-060FH-AL-G-030 (Each) --- Metric Timing Pulleys - 14 tooth - 6x3 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

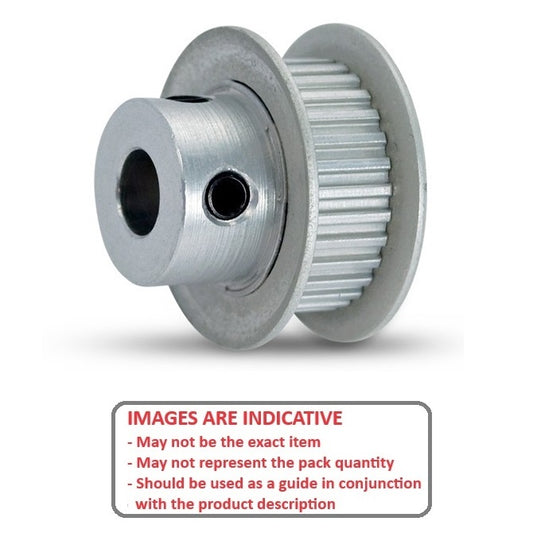

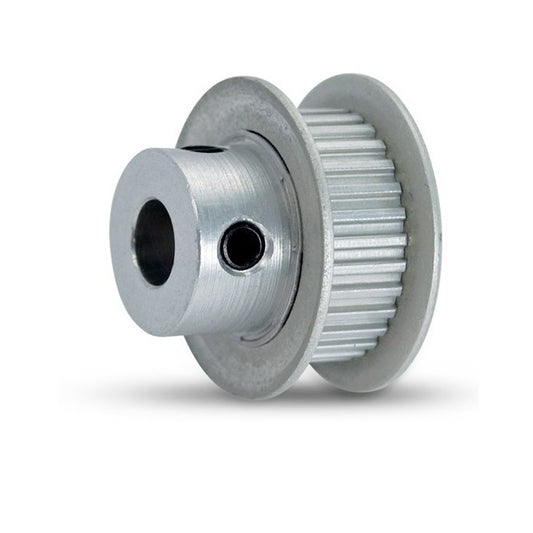

Metric Timing Pulleys - 19 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 19	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.11 mm Flange Diameter (FD): 18.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 10.0 Locking Type: Set Screw
Part Number: P-025T-019-060FF-AL-G-040 (Each) 1 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $24.14 AUD Regular price ~~$46.07 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 1 available can be backordered.
Metric Timing Pulleys - 19 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 19	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.11 mm Flange Diameter (FD): 18.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 10.0 Locking Type: Set Screw
Part Number: P-025T-019-060FF-AL-G-040 (Each) 1 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $24.14 AUD Regular price ~~$46.07 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
P-025T-019-060FF-AL-G-040 (Each) --- Metric Timing Pulleys - 19 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Sale P-025T-019-060FF-AL-G-040 (Each) --- Metric Timing Pulleys - 19 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $24.14 AUD Regular price ~~$46.07 AUD~~ Sale price $24.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Metric Timing Pulleys - 24 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 24	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 12.0 Locking Type: Set Screw
Part Number: P-025T-024-060FF-AL-G-040 (Each) 2 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $24.59 AUD Regular price ~~$46.92 AUD~~ Sale price $24.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 2 available can be backordered.
Metric Timing Pulleys - 24 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 24	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 4.000 mm (Equiv. 0.157 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 12.0 Locking Type: Set Screw
Part Number: P-025T-024-060FF-AL-G-040 (Each) 2 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $24.59 AUD Regular price ~~$46.92 AUD~~ Sale price $24.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
P-025T-024-060FF-AL-G-040 (Each) --- Metric Timing Pulleys - 24 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Sale P-025T-024-060FF-AL-G-040 (Each) --- Metric Timing Pulleys - 24 tooth - 6x4 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $24.59 AUD Regular price ~~$46.92 AUD~~ Sale price $24.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Metric Timing Pulleys - 30 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 30	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-030-060FF-AL-G-060 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 30 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 30	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-030-060FF-AL-G-060 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-025T-030-060FF-AL-G-060 (Each) --- Metric Timing Pulleys - 30 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley P-025T-030-060FF-AL-G-060 (Each) --- Metric Timing Pulleys - 30 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Metric Timing Pulleys - 36 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 36	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 36.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 20.0 Locking Type: M3 Set Screws x 2
Part Number: P-025T-036-060FF-AL-G-060 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Metric Timing Pulleys - 36 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 36	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 6.000 mm (Equiv. 0.236 in.)	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 36.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 20.0 Locking Type: M3 Set Screws x 2
Part Number: P-025T-036-060FF-AL-G-060 (Each) Out of Stock \| Backorder Now \| Orders can be expected around Mon, Feb 16, 2026 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-025T-036-060FF-AL-G-060 (Each) --- Metric Timing Pulleys - 36 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley P-025T-036-060FF-AL-G-060 (Each) --- Metric Timing Pulleys - 36 tooth - 6x6 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

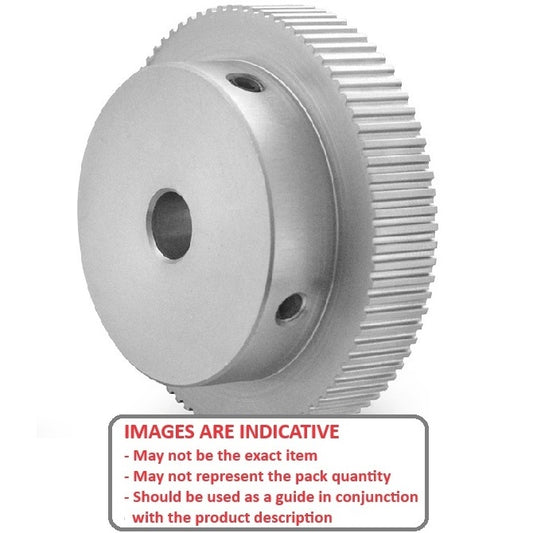

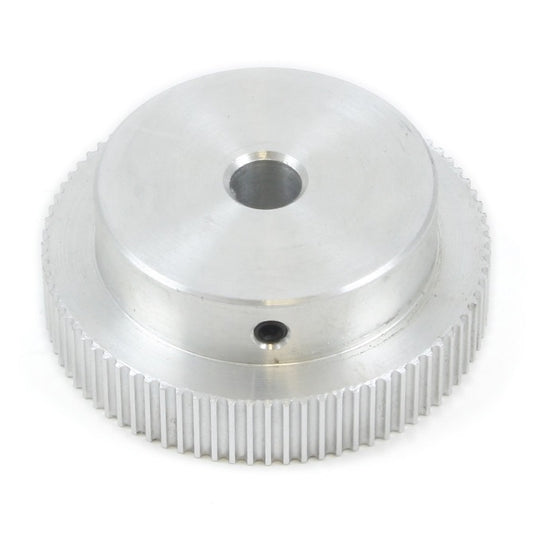

Metric Timing Pulleys - 60 tooth - 6x8 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 60	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 47.73 mm Overall Length: 16.0 mm Hub Diameter (HD): 34.0 Locking Type: None
Part Number: P-025T-060-060P-AL-N-080 (Each) 1 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $32.14 AUD Regular price ~~$61.52 AUD~~ Sale price $32.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 1 available can be backordered.
Metric Timing Pulleys - 60 tooth - 6x8 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley
Number of Teeth 60	Max Belt Width 6.00 mm (Equiv. 0.236 in.)	Bore (d) 8.000 mm (Equiv. 0.315 in.)	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 47.73 mm Overall Length: 16.0 mm Hub Diameter (HD): 34.0 Locking Type: None
Part Number: P-025T-060-060P-AL-N-080 (Each) 1 Available Now \| Further orders can be expected around Mon, Feb 16, 2026 Regular price $32.14 AUD Regular price ~~$61.52 AUD~~ Sale price $32.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
P-025T-060-060P-AL-N-080 (Each) --- Metric Timing Pulleys - 60 tooth - 6x8 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Sale P-025T-060-060P-AL-N-080 (Each) --- Metric Timing Pulleys - 60 tooth - 6x8 mm 2.5mm Pitch T2.5 6mm Wide - Aluminium Pulley Regular price $32.14 AUD Regular price ~~$61.52 AUD~~ Sale price $32.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
