Collection: Pulleys - Metric Timing - 10.000mm Pitch - T10

Pulleys (With Images)

Metric Timing

10.000mm Pitch

5 Products in this selection

This category includes various types of metric timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Small Parts & Bearings

Additional resources:
Timing Pulleys Catalogue PDF
T10 Timing Belts

A more comprehensive listing may be found on the MBA Minibearings main store at Pulleys - Metric Timing - 10.000mm Pitch - T10.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Number of Teeth 10	Max Belt Width 140.0 mm	Bore (d) 29.98 mm	Bore Type 29.98
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-100T-010-140A (Each) Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley 1 Available Now \| Further orders can be expected around Thu, Aug 20, 2026 Regular price $90.14 AUD Regular price ~~$186.84 AUD~~ Sale price $90.14 AUD Unit price per Each
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 10	Max Belt Width 140.0 mm	Bore (d) 29.98 mm	Bore Type 29.98
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 20.0 mm
Part Number: P-100T-010-140A (Each) Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley 1 Available Now \| Further orders can be expected around Thu, Aug 20, 2026 Regular price $90.14 AUD Regular price ~~$186.84 AUD~~ Sale price $90.14 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-100T-010-140A (Each) --- Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley Sale P-100T-010-140A (Each) --- Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley Regular price $90.14 AUD Regular price ~~$186.84 AUD~~ Sale price $90.14 AUD Unit price per 1 Available Now Sale
Number of Teeth 14	Max Belt Width 16.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 44.54 mm Flange Diameter (FD): 48.4 mm Overall Length: 31.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 16mm Wide Aluminium
Part Number: P-100T-014-160FF-AL-N-080 (Each) Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $46.59 AUD Regular price Sale price $46.59 AUD Unit price per Each
Number of Teeth 14	Max Belt Width 16.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 44.54 mm Flange Diameter (FD): 48.4 mm Overall Length: 31.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 16mm Wide Aluminium
Part Number: P-100T-014-160FF-AL-N-080 (Each) Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $46.59 AUD Regular price Sale price $46.59 AUD Unit price per Each View the product page first if you are unsure.
P-100T-014-160FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley P-100T-014-160FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley Regular price $46.59 AUD Regular price Sale price $46.59 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 14	Max Belt Width 26.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 44.54 mm Flange Diameter (FD): 48.4 mm Overall Length: 40.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 26mm Wide Aluminium
Part Number: P-100T-014-250FF-AL-N-080 (Each) Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Each
Number of Teeth 14	Max Belt Width 26.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 44.54 mm Flange Diameter (FD): 48.4 mm Overall Length: 40.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 26mm Wide Aluminium
Part Number: P-100T-014-250FF-AL-N-080 (Each) Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Each View the product page first if you are unsure.
P-100T-014-250FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley P-100T-014-250FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Out of stock! Backorder Now
Number of Teeth 18	Max Belt Width 32.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 47.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 32mm Wide Aluminium
Part Number: P-100T-018-320FF-AL-N-080 (Each) Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $80.14 AUD Regular price Sale price $80.14 AUD Unit price per Each
Number of Teeth 18	Max Belt Width 32.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 47.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 32mm Wide Aluminium
Part Number: P-100T-018-320FF-AL-N-080 (Each) Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $80.14 AUD Regular price Sale price $80.14 AUD Unit price per Each View the product page first if you are unsure.
P-100T-018-320FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley P-100T-018-320FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley Regular price $80.14 AUD Regular price Sale price $80.14 AUD Unit price per Out of stock! Backorder Now

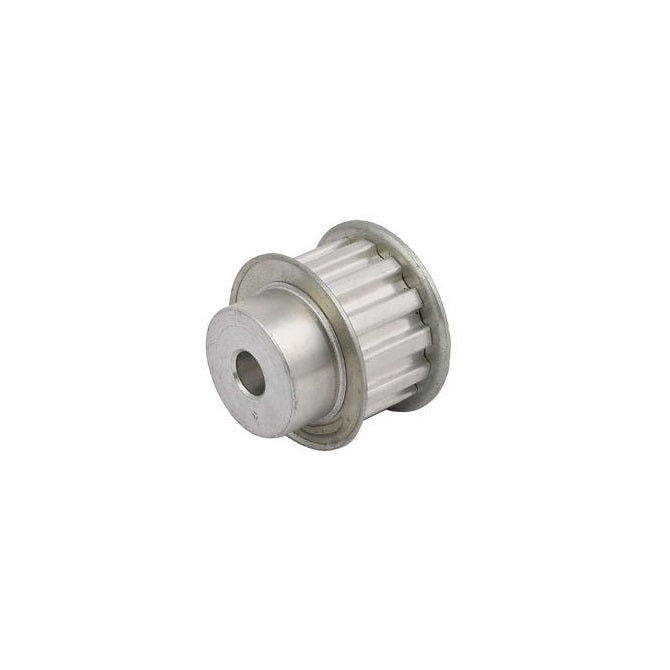

Number of Teeth 18	Max Belt Width 50.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 66.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 50mm Wide Aluminium
Part Number: P-100T-018-500FF-AL-N-080 (Each) Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $84.14 AUD Regular price Sale price $84.14 AUD Unit price per Each
Number of Teeth 18	Max Belt Width 50.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 66.0 mm Category: Pulleys - Metric Timing - 10.000mm Pitch - T10 - 50mm Wide Aluminium
Part Number: P-100T-018-500FF-AL-N-080 (Each) Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 20, 2026 Regular price $84.14 AUD Regular price Sale price $84.14 AUD Unit price per Each View the product page first if you are unsure.
P-100T-018-500FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley P-100T-018-500FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley Regular price $84.14 AUD Regular price Sale price $84.14 AUD Unit price per Out of stock! Backorder Now

Collection: Pulleys - Metric Timing - 10.000mm Pitch - T10

Filter:

P-100T-010-140A (Each) --- Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley

P-100T-010-140A (Each) --- Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley

P-100T-014-160FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley

P-100T-014-160FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 16x8 mm 10mm Pitch - Aluminium Pulley

P-100T-014-250FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley

P-100T-014-250FF-AL-N-080 (Each) --- Metric Timing Pulleys - 14 tooth - 26x8 mm 10mm Pitch - Aluminium Pulley

P-100T-018-320FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley

P-100T-018-320FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 32x8 mm 10mm Pitch - Aluminium Pulley

P-100T-018-500FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley

P-100T-018-500FF-AL-N-080 (Each) --- Metric Timing Pulleys - 18 tooth - 50x8 mm 10mm Pitch - Aluminium Pulley
