Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide

-> 25.4mm Wide

There are 2 products in the sub-categories of Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide. Browse the Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of inch timing pulleys.

Timing pulleys combined with timing belts, provide power transmission without slippage.
Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide category on the MBA Minibearings main store.

Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 13	Max Belt Width 25.40 mm (Equiv. 1 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 39.40 mm Flange Diameter (FD): 43.9 mm Overall Length: 38.1 mm Category: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Through Bore
Part Number: P-L9-013-254FF-SB-G-095 (Each) Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 31, 2026 Regular price $72.41 AUD Regular price Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Number of Teeth 13	Max Belt Width 25.40 mm (Equiv. 1 in.)	Bore (d) 9.525 mm (Equiv. 0.375 in.)	Bore Type Finished
Material: Steel - Black Oxide Type: 2 Pitch Dia. (PD): 39.40 mm Flange Diameter (FD): 43.9 mm Overall Length: 38.1 mm Category: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Through Bore
Part Number: P-L9-013-254FF-SB-G-095 (Each) Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 31, 2026 Regular price $72.41 AUD Regular price Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-L9-013-254FF-SB-G-095 (Each) --- Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley P-L9-013-254FF-SB-G-095 (Each) --- Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley Regular price $72.41 AUD Regular price Sale price $72.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

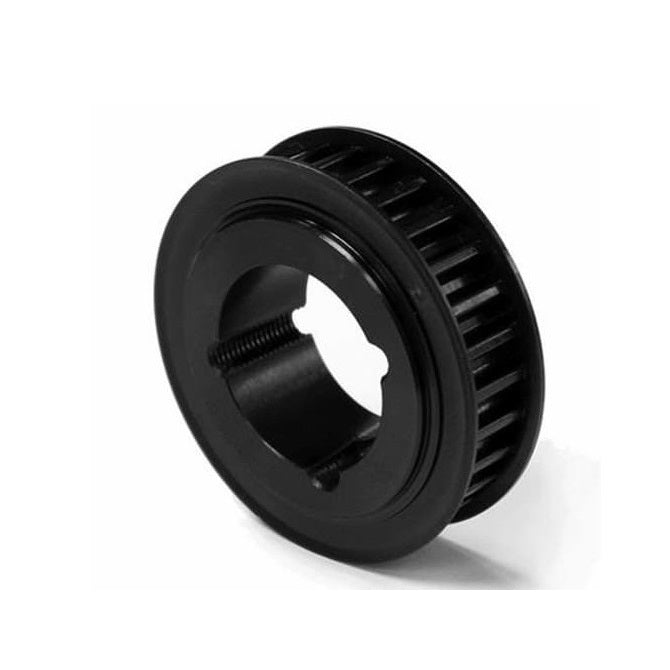

Number of Teeth 18	Max Belt Width 25.40 mm (Equiv. 1 in.)	Bore (d) Determined by Taperlock mm	Bore Type Suits Taperlock 1008
Material: Steel - Black Oxide Type: Double Flanged - Hubless Pitch Dia. (PD): 54.55 mm Flange Diameter (FD): 60.5 mm Overall Length: 31.8 mm Category: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Taperlock
Part Number: P-L9-018-254FF-SB-T1008 (Each) Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 31, 2026 Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Number of Teeth 18	Max Belt Width 25.40 mm (Equiv. 1 in.)	Bore (d) Determined by Taperlock mm	Bore Type Suits Taperlock 1008
Material: Steel - Black Oxide Type: Double Flanged - Hubless Pitch Dia. (PD): 54.55 mm Flange Diameter (FD): 60.5 mm Overall Length: 31.8 mm Category: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Taperlock
Part Number: P-L9-018-254FF-SB-T1008 (Each) Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 31, 2026 Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
P-L9-018-254FF-SB-T1008 (Each) --- Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley P-L9-018-254FF-SB-T1008 (Each) --- Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

Small Parts & Bearings

Collection: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide

Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Taperlock

Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Taperlock

Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Through Bore

Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Through Bore

Category Details

Filter:

P-L9-013-254FF-SB-G-095 (Each) --- Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley

P-L9-013-254FF-SB-G-095 (Each) --- Inch Timing Pulleys - 13 tooth - 25.4x9.525 mm 9.525mm Pitch L - Steel - Black Oxide Pulley

P-L9-018-254FF-SB-T1008 (Each) --- Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley

P-L9-018-254FF-SB-T1008 (Each) --- Inch Timing Pulleys - 18 tooth - 25.4 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley
