Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide

Pulleys -> Inch Timing -> 9.525mm Pitch L -> 12.7mm Wide

There are 2 products in the sub-categories of Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide. Browse the Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide products table. To narrow down the selection, please choose a sub-category from the links below.

Inch Timing Pulleys - 18 tooth - 12.7 - Determined by Taperlock Series Series - Steel - Black Oxide

Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Taperlock

A selection of Taperlock 12.7mm Wide 9.525mm Pitch L Inch Timing Pulleys....

Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Taperlock

Inch Timing Pulleys - 24 tooth - 12.7x12.7 mm - Aluminium

Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Through Bore

A selection of Through Bore 12.7mm Wide 9.525mm Pitch L Inch Timing...

Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Through Bore

Category Details

This category includes various types of inch timing pulleys.
  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide category on the MBA Minibearings main store.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
18

Max Belt Width
12.70
mm

(Equiv. 0.5 in.)
Bore (d)
Determined by Taperlock
mm
Bore Type
Suits Taperlock 1108
Inch Timing Pulleys - 18 tooth - 12.7 - Determined by Taperlock Series Series - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2BF    Pitch Dia. (PD): 54.55 mm    Flange Diameter (FD): 60.5 mm    Overall Length: 19.8 mm
Category: Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Taperlock
Deleted Item. Available while stocks last.
Part Number: P-L9-018-127FF-SB-T1108 (Each)
Inch Timing Pulleys - 18 tooth - 12.7 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$31.69 AUD
$79.07 AUD $31.69 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
18

Max Belt Width
12.70
mm

(Equiv. 0.5 in.)
Bore (d)
Determined by Taperlock
mm
Bore Type
Suits Taperlock 1108
Inch Timing Pulleys - 18 tooth - 12.7 - Determined by Taperlock Series Series - Steel - Black Oxide
Material: Steel - Black Oxide    Type: 2BF    Pitch Dia. (PD): 54.55 mm    Flange Diameter (FD): 60.5 mm    Overall Length: 19.8 mm
Category: Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Taperlock
Deleted Item. Available while stocks last.
Part Number: P-L9-018-127FF-SB-T1108 (Each)
Inch Timing Pulleys - 18 tooth - 12.7 mm - Determined by Taperlock 9.525mm Pitch L - Steel - Black Oxide Pulley
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$31.69 AUD
$79.07 AUD $31.69 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
24

Max Belt Width
12.70
mm

(Equiv. 0.5 in.)
Bore (d)
12.700
mm

(Equiv. 0.5 in.)
Bore Type
Finished

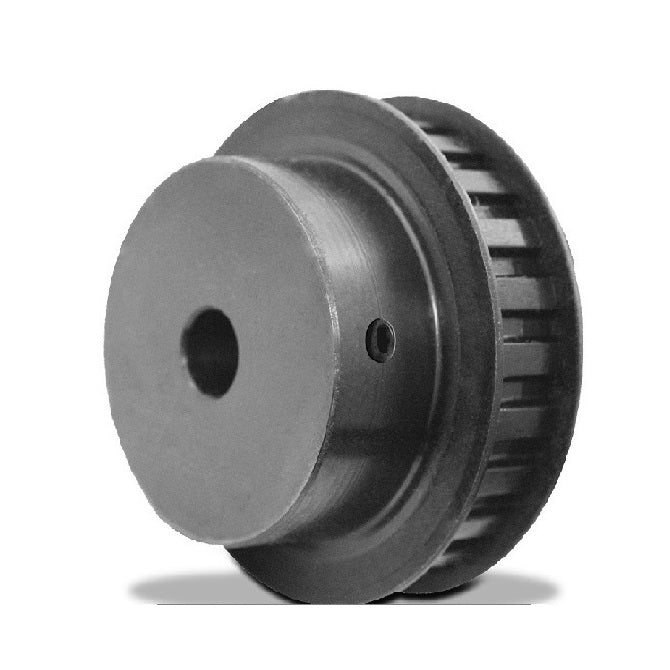

Inch Timing Pulleys - 24 tooth - 12.7x12.7 mm - Aluminium
Material: Aluminium    Type: 3BF    Pitch Dia. (PD): 72.73 mm    Flange Diameter (FD): 78.6 mm    Overall Length: 34.9 mm
Category: Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Through Bore
Part Number: P-L9-024-127FF-AL-G-127 (Each)
Inch Timing Pulleys - 24 tooth - 12.7x12.7 mm 9.525mm Pitch L - Aluminium Pulley
1 Available Now | Further orders can be expected around Sat, Jan 31, 2026
$78.68 AUD
$94.42 AUD $78.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Number of Teeth
24

Max Belt Width
12.70
mm

(Equiv. 0.5 in.)
Bore (d)
12.700
mm

(Equiv. 0.5 in.)
Bore Type
Finished
Inch Timing Pulleys - 24 tooth - 12.7x12.7 mm - Aluminium
Material: Aluminium    Type: 3BF    Pitch Dia. (PD): 72.73 mm    Flange Diameter (FD): 78.6 mm    Overall Length: 34.9 mm
Category: Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Through Bore
Part Number: P-L9-024-127FF-AL-G-127 (Each)
Inch Timing Pulleys - 24 tooth - 12.7x12.7 mm 9.525mm Pitch L - Aluminium Pulley
1 Available Now | Further orders can be expected around Sat, Jan 31, 2026
$78.68 AUD
$94.42 AUD $78.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
