Collection: Plungers - Indexing with Plate - Non Locking

Plungers (With Images)

Indexing with Plate

Locking
Non Locking

2 Products in this selection

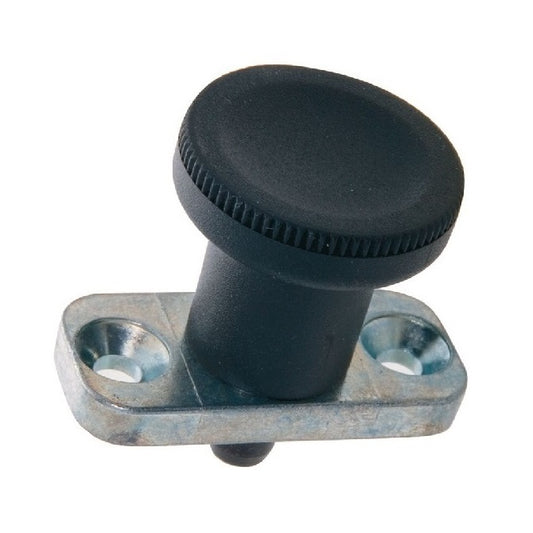

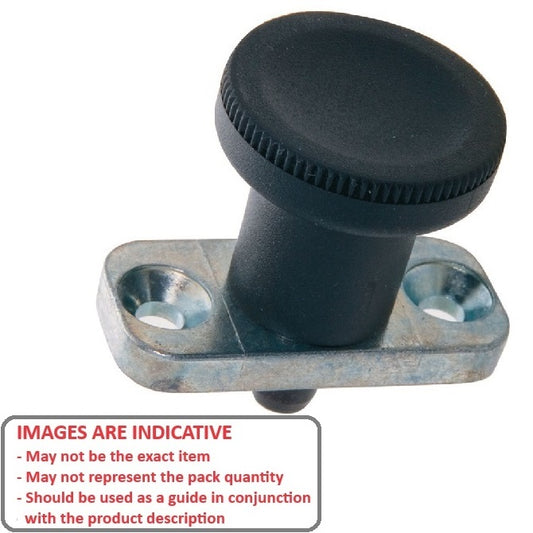

Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
Spring loaded to work in a variety of applications on both tooling and equipment that require surface mounting.
Plunger is hardened and ground.
Knob is black matte plastic. Mounting plate is zinc plated steel.

Body Diameter (B)	Overall Length (A)	Initial End Force	Final End Force	Tip Diameter (A)	Tip Length (H)	Indicative Image
10.00 mm	4.6 mm	4.6 N	2.2 N	6.0 mm	6.0 mm
Material: Steel E / D / I: 8.3 / 4.3 / 2.5 mm J / K / L: 18.0 / 30.0 / 40.0 mm
Part Number: PLI-M-060-100-25-M-C Indexing with Plate Plungers - 10 mm x 4.6 mm x 4.6 N Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Each View the product page first if you are unsure ->
Body Diameter (B)	Overall Length (A)	Initial End Force	Final End Force	Indicative Image
10.00 mm	4.6 mm	4.6 N	2.2 N
Material: Steel Tip Diameter (A): 6.0 mm Tip Length (H): 6.0 mm E / D / I: 8.3 / 4.3 / 2.5 mm J / K / L: 18.0 / 30.0 / 40.0 mm
Part Number: PLI-M-060-100-25-M-C Indexing with Plate Plungers - 10 mm x 4.6 mm x 4.6 N Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Each View the product page first if you are unsure.
PLI-M-060-100-25-M-C --- Indexing with Plate Plungers - 10 mm x 4.6 mm x 4.6 N Steel PLI-M-060-100-25-M-C --- Indexing with Plate Plungers - 10 mm x 4.6 mm x 4.6 N Steel Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Out of stock! Backorder Now
12.00 mm	1.6 mm	1.6 N	2.9 N	8.0 mm	8.0 mm
Material: Steel E / D / I: 10.4 / 5.3 / 2.5 mm J / K / L: 20.0 / 34.0 / 46.0 mm
Part Number: PLI-M-080-120-31-M-C Indexing with Plate Plungers - 12 mm x 1.6 mm x 1.6 N Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Each View the product page first if you are unsure ->
12.00 mm	1.6 mm	1.6 N	2.9 N
Material: Steel Tip Diameter (A): 8.0 mm Tip Length (H): 8.0 mm E / D / I: 10.4 / 5.3 / 2.5 mm J / K / L: 20.0 / 34.0 / 46.0 mm
Part Number: PLI-M-080-120-31-M-C Indexing with Plate Plungers - 12 mm x 1.6 mm x 1.6 N Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 14, 2025 Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Each View the product page first if you are unsure.
PLI-M-080-120-31-M-C --- Indexing with Plate Plungers - 12 mm x 1.6 mm x 1.6 N Steel PLI-M-080-120-31-M-C --- Indexing with Plate Plungers - 12 mm x 1.6 mm x 1.6 N Steel Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Out of stock! Backorder Now
