Plungers - Indexing Pull Knob - Non Locking

Plungers -> Indexing Pull Knob -> Non Locking

There are 3 products in the sub-categories of Plungers - Indexing Pull Knob - Non Locking. Browse the Plungers - Indexing Pull Knob - Non Locking products table. To narrow down the selection, please choose a sub-category from the links below.

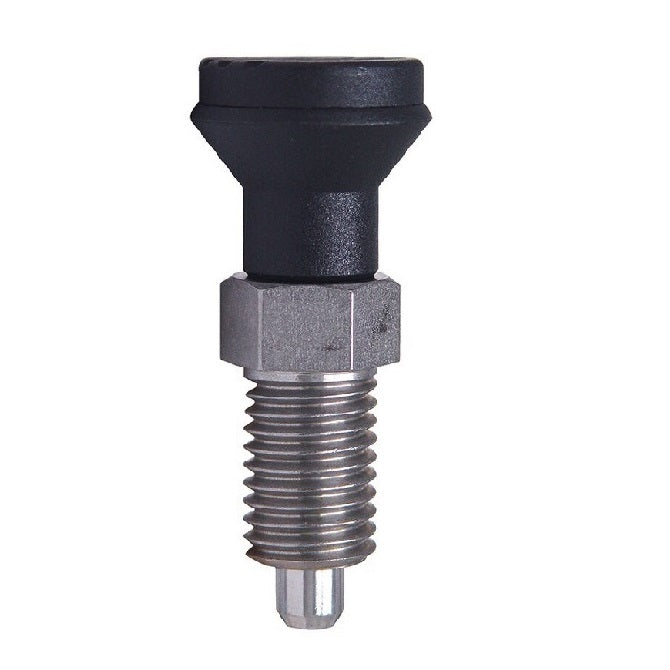

Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Steel

Plungers - Indexing Pull Knob - Non Locking - Steel

A selection of Steel Non Locking Indexing Pull Knob Plungers. Used to...

Plungers - Indexing Pull Knob - Non Locking - Steel

Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8

Plungers - Indexing Pull Knob - Non Locking - Without Knob

This category includes various types of indexing pull knob plungers. Spring-loaded pin...

Plungers - Indexing Pull Knob - Non Locking - Without Knob

Category Details

This category includes various types of indexing pull knob plungers.
  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Indexing Pull Knob - Non Locking category on the MBA Minibearings main store.
Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Steel Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.1
mm
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Steel
Material: Steel
Category: Plungers - Indexing Pull Knob - Non Locking - Steel
Part Number: PLIT-050-095C-47-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$35.05 AUD
$35.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Steel Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
47.0
mm

(Equiv. 1.85 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 47 mm - 0.5 N Non Locking - Steel
Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.1 mm
Category: Plungers - Indexing Pull Knob - Non Locking - Steel
Part Number: PLIT-050-095C-47-K-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$35.05 AUD
$35.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
37.1
mm

(Equiv. 1.461 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.1
mm
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Category: Plungers - Indexing Pull Knob - Non Locking - Without Knob
Part Number: PLIT-050-095C-37-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$51.23 AUD
$51.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
37.1
mm

(Equiv. 1.461 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.1 mm
Category: Plungers - Indexing Pull Knob - Non Locking - Without Knob
Part Number: PLIT-050-095C-37-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$51.23 AUD
$51.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Steel Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
37.1
mm

(Equiv. 1.461 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Tip Diameter (C)
5.0
mm
Tip Length (D)
5.1
mm
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Steel
Material: Steel
Category: Plungers - Indexing Pull Knob - Non Locking - Without Knob
Part Number: PLIT-050-095C-37-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$33.41 AUD
$33.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Steel Plunger
Thread (B)
3/8-16 UNC (9.53mm)

Overall Length (A)
37.1
mm

(Equiv. 1.461 in.)
Initial End Force
0.5
N
Final End Force
1.2
N
Indexing Pull Knob Plungers - 3/8-16 UNC - 9.53mm - 37.1 mm - 0.5 N Non Locking - Steel
Material: Steel    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.1 mm
Category: Plungers - Indexing Pull Knob - Non Locking - Without Knob
Part Number: PLIT-050-095C-37-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$33.41 AUD
$33.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
