Collection: Plungers - Indexing Pull Knob - No Collar - Steel
Plungers -> Indexing Pull Knob -> No Collar -> SteelThere are 2 products in the sub-categories of Plungers - Indexing Pull Knob - No Collar - Steel. Browse the Plungers - Indexing Pull Knob - No Collar - Steel products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Indexing Pull Knob - No Collar - Steel - Standard
A selection of Standard Steel No Collar Indexing Pull Knob Plungers. With...

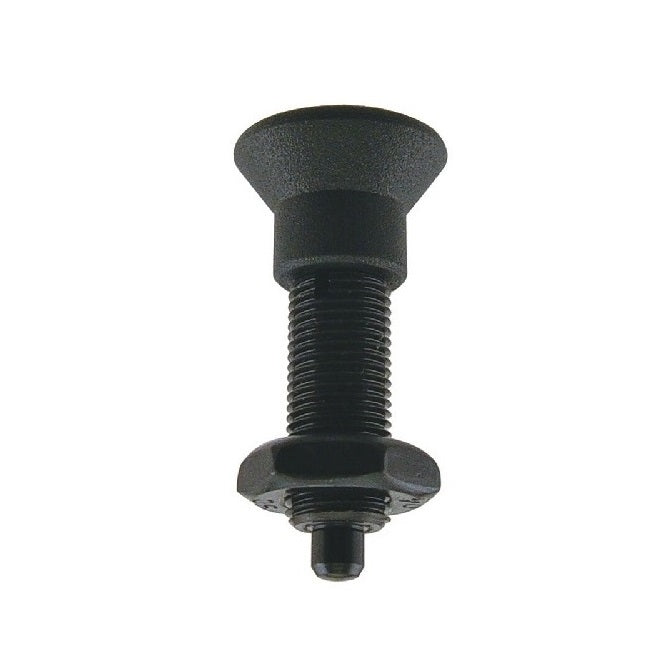

Plungers - Indexing Pull Knob - No Collar - Steel - With Nut
A selection of With Nut Steel No Collar Indexing Pull Knob Plungers....
Category Details
This category includes various types of indexing pull knob plungers.
- Spring-loaded pin used to lock a part into a specific position.
- To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Indexing Pull Knob - No Collar - Steel category on the MBA Minibearings main store.
| Thread (B) | Overall Length (A) | Initial End Force | Final End Force | Tip Diameter (C) | Tip Length (D) |
Indicative Image |
|---|---|---|---|---|---|---|
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Steel Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
Tip Diameter (C)
4.0
mm |
Tip Length (D)
4.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Pull Knob - No Collar - Steel - Standard |
||||||
|
Part Number: PLIT-040-080-100-39-KPU-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026 Regular price
$26.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread (B) | Overall Length (A) | Initial End Force | Final End Force |
Indicative Image |
||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Steel Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
|
||
|
Material: Steel
Tip Diameter (C): 4.0 mm
Tip Length (D): 4.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Steel - Standard |
||||||
|
Part Number: PLIT-040-080-100-39-KPU-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026 Regular price
$26.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Steel Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
Tip Diameter (C)
4.0
mm |
Tip Length (D)
4.0
mm |
|
|
Material: Steel
Category: Plungers - Indexing Pull Knob - No Collar - Steel - With Nut |
||||||
|
Part Number: PLIT-040-080-100-39-KPUN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 2.7 N No Collar - Steel Plunger | ||||||
|
Thread (B)
M8 Fine (8x1mm)
|
Overall Length (A)
38.5
mm (Equiv. 1.516 in.) |
Initial End Force
2.7
N |
Final End Force
5.4
N |
|
||
|
Material: Steel
Tip Diameter (C): 4.0 mm
Tip Length (D): 4.0 mm
Category: Plungers - Indexing Pull Knob - No Collar - Steel - With Nut |
||||||
|
Part Number: PLIT-040-080-100-39-KPUN-C (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
