Plungers - Indexing Precision - Ball Grip - With Support

Plungers -> Indexing Precision -> Ball Grip -> With Support

There is only 1 product in the sub-categories of Plungers - Indexing Precision - Ball Grip - With Support. Browse the Plungers - Indexing Precision - Ball Grip - With Support products table.

Category Details

A selection of With Support Ball Grip Indexing Precision Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Indexing Precision - Ball Grip - With Support category on the MBA Minibearings main store.
Body Diameter (I) Body Length (D) Initial End Force Final End Force Tip Diameter (A) Tip Length (K) Indicative

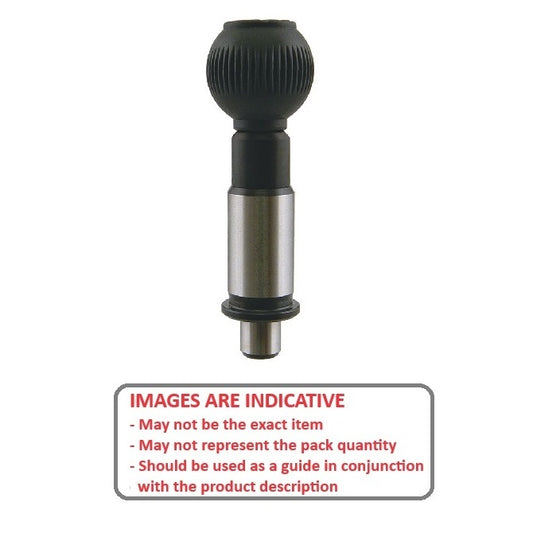

Indexing Precision Plungers - 20x35 mm - 1.5 N Ball Grip - Steel Plunger
Body Diameter (I)
20.00
mm

(Equiv. 0.787 in.)
Body Length (D)
35.0
mm

(Equiv. 1.378 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Tip Diameter (A)
12.0
mm
Tip Length (K)
10.0
mm

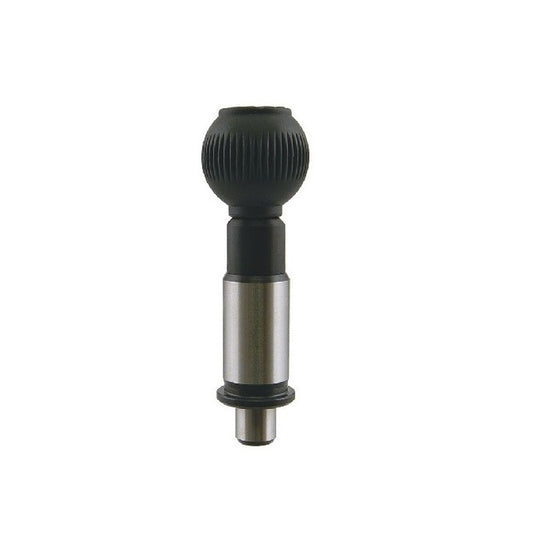

Indexing Precision Plungers - 20x35 mm - 1.5 N Ball Grip - Steel
Material: Steel    Knob Diameter (B): 32.0 mm    Knob Length (G): 33.0 mm    Internal Thread of Grip Ball: M8.0
Part Number: PLI-P-120-320-23-SP-BG (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$450.41 AUD
$450.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (I) Body Length (D) Initial End Force Final End Force Indicative
Indexing Precision Plungers - 20x35 mm - 1.5 N Ball Grip - Steel Plunger
Body Diameter (I)
20.00
mm

(Equiv. 0.787 in.)
Body Length (D)
35.0
mm

(Equiv. 1.378 in.)
Initial End Force
1.5
N
Final End Force
3.6
N
Indexing Precision Plungers - 20x35 mm - 1.5 N Ball Grip - Steel
Material: Steel    Tip Diameter (A): 12.0 mm    Tip Length (K): 10.0 mm    Knob Diameter (B): 32.0 mm    Knob Length (G): 33.0 mm    Internal Thread of Grip Ball: M8.0
Part Number: PLI-P-120-320-23-SP-BG (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$450.41 AUD
$450.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
