Plungers - Indexing - Non Locking - Stainless Steel

Plungers -> Indexing -> Non Locking -> Stainless Steel

There is only 1 product in the sub-categories of Plungers - Indexing - Non Locking - Stainless Steel. Browse the Plungers - Indexing - Non Locking - Stainless Steel products table.

Category Details

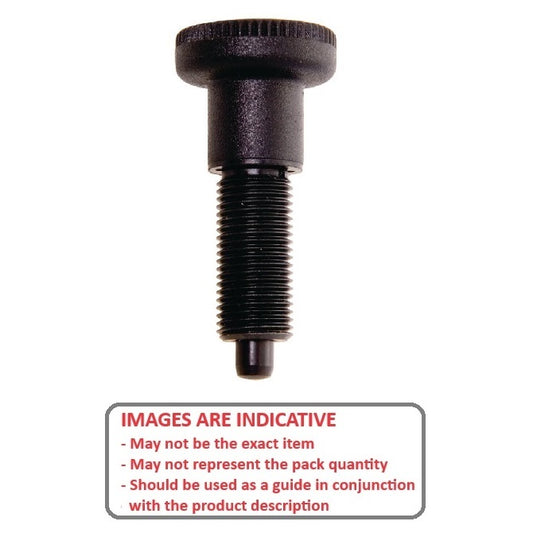

A selection of Stainless Steel Non Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Spring-loaded pin used to lock a part into a specific position.
  • To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Indexing - Non Locking - Stainless Steel category on the MBA Minibearings main store.
Thread (B) Thread Length (E) Initial End Force Final End Force Tip Diameter (A) Tip Length (D) Indicative
Indexing Plungers - M10x1 - Extra Fine - 22 mm - 0.6 N Non Locking - Stainless Steel Plunger
Thread (B)
M10x1 (Extra Fine)

Thread Length (E)
22.0
mm

(Equiv. 0.866 in.)
Initial End Force
0.6
N
Final End Force
1.3
N
Tip Diameter (A)
5.0
mm
Tip Length (D)
5.0
mm

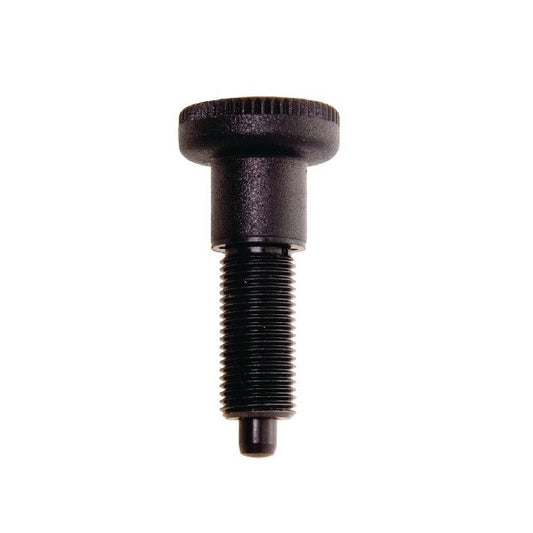

Indexing Plungers - M10x1 - Extra Fine - 22 mm - 0.6 N Non Locking - Stainless Steel
Material: Stainless Steel    Installation Tool: WIP-5005
Part Number: PLIT-050-100-100-21-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$50.05 AUD
$50.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread (B) Thread Length (E) Initial End Force Final End Force Indicative
Indexing Plungers - M10x1 - Extra Fine - 22 mm - 0.6 N Non Locking - Stainless Steel Plunger
Thread (B)
M10x1 (Extra Fine)

Thread Length (E)
22.0
mm

(Equiv. 0.866 in.)
Initial End Force
0.6
N
Final End Force
1.3
N
Indexing Plungers - M10x1 - Extra Fine - 22 mm - 0.6 N Non Locking - Stainless Steel
Material: Stainless Steel    Tip Diameter (A): 5.0 mm    Tip Length (D): 5.0 mm    Installation Tool: WIP-5005
Part Number: PLIT-050-100-100-21-S3 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$50.05 AUD
$50.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
