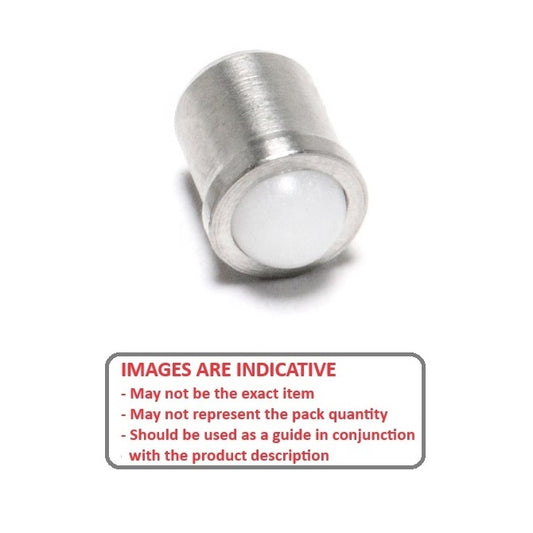

Plungers - Ball Push Fit - Stainless Body - Acetal Ball

Plungers -> Ball Push Fit -> Stainless Body -> Acetal Ball

There is only 1 product in the sub-categories of Plungers - Ball Push Fit - Stainless Body - Acetal Ball. Browse the Plungers - Ball Push Fit - Stainless Body - Acetal Ball products table.

Category Details

A selection of Acetal Ball Stainless Body Ball Push Fit Plungers. Unthreaded.

  • Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
  • Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Ball Push Fit - Stainless Body - Acetal Ball category on the MBA Minibearings main store.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Body Diameter (D)
12.70
mm
+ 0.1 / - 0.0
(Equiv. 0.5 in.)
Length (L)
28.7
mm

(Equiv. 1.13 in.)
Initial Pressure (F1)
53.4
N
Final Pressure (F2)
102.3
N
Ball Diameter (D1)
11.1
mm
Ball Height (H)
4.1
mm
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal
Material: Acetal    Shoulder Diameter (S): 17.5 mm
Part Number: PLBP-127-287-SA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$25.14 AUD
$25.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Body Diameter (D)
12.70
mm
+ 0.1 / - 0.0
(Equiv. 0.5 in.)
Length (L)
28.7
mm

(Equiv. 1.13 in.)
Initial Pressure (F1)
53.4
N
Final Pressure (F2)
102.3
N
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal
Material: Acetal    Ball Diameter (D1): 11.1 mm    Ball Height (H): 4.1 mm    Shoulder Diameter (S): 17.5 mm
Part Number: PLBP-127-287-SA-102 (Each)
Ball Push Fit Plungers - 12.7x28.7 mm - 53.4 N Stainless Body - Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$25.14 AUD
$25.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
