Plungers - Ball Push Fit - Plastic Body - Plastic Ball

Plungers -> Ball Push Fit -> Plastic Body -> Plastic Ball

There is only 1 product in the sub-categories of Plungers - Ball Push Fit - Plastic Body - Plastic Ball. Browse the Plungers - Ball Push Fit - Plastic Body - Plastic Ball products table.

Category Details

A selection of Plastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.

  • Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
  • Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
  • Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
  • Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
  • Ball: W.-Nr 1.4034 (420) Stainless Steel.
  • Spring: W.-Nr 1.4310 (301) Stainless Steel.
  • Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Ball Push Fit - Plastic Body - Plastic Ball category on the MBA Minibearings main store.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Diameter (D1)
4.0
mm
Ball Height (H)
1.0
mm
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic
Material: Plastic    Shoulder Diameter (S): 5.6 mm    Weight (Approx): 0.4 g
Part Number: PLBP-050-060-PP-007 (Each)

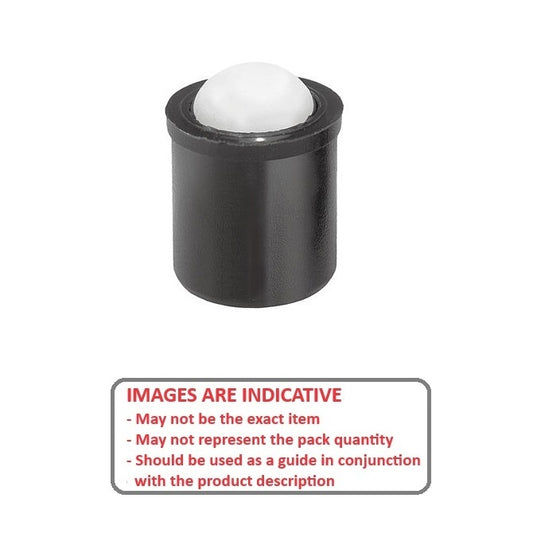

Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$4.95 AUD
$4.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Body Diameter (D)
5.00
mm
+ 0.1 / - 0.0
(Equiv. 0.197 in.)
Length (L)
6.0
mm

(Equiv. 0.236 in.)
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
7.0
N
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic
Material: Plastic    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.0 mm    Shoulder Diameter (S): 5.6 mm    Weight (Approx): 0.4 g
Part Number: PLBP-050-060-PP-007 (Each)
Ball Push Fit Plungers - 5x6 mm - 4 N Plastic Body - Plastic Plunger
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$4.95 AUD
$4.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
