Pins - Wire Lock Lynch - Double Wire - Square

Pins -> Wire Lock Lynch -> Double Wire -> Square

There are 5 products in the sub-categories of Pins - Wire Lock Lynch - Double Wire - Square. Browse the Pins - Wire Lock Lynch - Double Wire - Square products table. To narrow down the selection, please choose a sub-category from the links below.

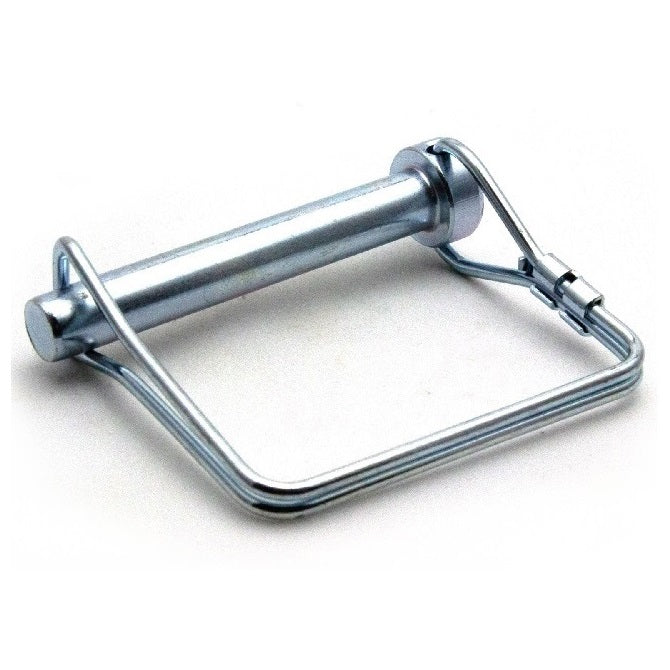

Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Carbon Steel Spring Wire Zinc Plated

Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel

A selection of Carbon Steel Square Double Wire Wire Lock Lynch Pins....

Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel

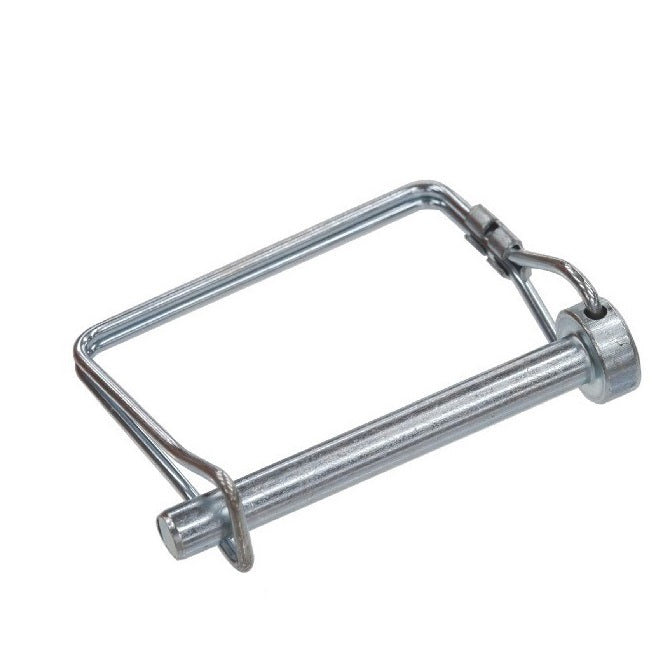

Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80

Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel

A selection of Stainless Steel Square Double Wire Wire Lock Lynch Pins....

Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel

Category Details

This category includes various types of wire lock lynch pins.
  • Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
  • Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pins - Wire Lock Lynch - Double Wire - Square category on the MBA Minibearings main store.
Pin Diameter (A) Grip Length (C) Wire Thickness (T) Clearance To Wire (E) Indicative
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Clearance To Wire (E)
41.3
mm
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 759
Part Number: LYP-Q2-064-057-S4 (Each)
100 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$7.05 AUD
$7.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 100 available can be backordered.
Pin Diameter (A) Grip Length (C) Wire Thickness (T) Indicative
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Clearance To Wire (E): 41.3 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 759
Part Number: LYP-Q2-064-057-S4 (Each)
100 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$7.05 AUD
$7.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

100 Available Now. Backorder if more than 100.
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Clearance To Wire (E)
41.3
mm
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Carbon Steel Spring Wire Zinc Plated
Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel
Additional stock available from USA subject to Prior Sale = 30064
Part Number: LYP-Q2-064-057-CZ (Each)
66 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.23 AUD
$4.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 66 available can be backordered.
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Carbon Steel Spring Wire Zinc Plated
Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 41.3 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel
Additional stock available from USA subject to Prior Sale = 30064
Part Number: LYP-Q2-064-057-CZ (Each)
66 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$4.23 AUD
$4.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

66 Available Now. Backorder if more than 66.
Wire Lock Lynch Pins - 6.35x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
63.50
mm
+ 0.00 / - 6.35
(Equiv. 2.5 in.)
Wire Thickness (T)
2.3
mm
Clearance To Wire (E)
41.3
mm
Wire Lock Lynch Pins - 6.35x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Pin Length (B): 69.9 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 8486
Part Number: LYP-Q2-064-064-S4 (PK-2)
Out of Stock | Backorder Now | More stock due: 20 (40 pcs) around Sat, Jul 25, 2026 | Further orders can be expected around Sun, Jul 26, 2026
$15.41 AUD
$15.41 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Wire Lock Lynch Pins - 6.35x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.)
Grip Length (C)
63.50
mm
+ 0.00 / - 6.35
(Equiv. 2.5 in.)
Wire Thickness (T)
2.3
mm
Wire Lock Lynch Pins - 6.35x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Clearance To Wire (E): 41.3 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 39 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 8486
Part Number: LYP-Q2-064-064-S4 (PK-2)
Out of Stock | Backorder Now | More stock due: 20 (40 pcs) around Sat, Jul 25, 2026 | Further orders can be expected around Sun, Jul 26, 2026
$15.41 AUD
$15.41 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Wire Lock Lynch Pins - 9.53x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Clearance To Wire (E)
38.1
mm
Wire Lock Lynch Pins - 9.53x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Pin Length (B): 63.5 mm    Weight Per Piece: 57 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 1200
Part Number: LYP-Q2-095-057-S4 (Each)
21 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$12.77 AUD
$12.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 21 available can be backordered.
Wire Lock Lynch Pins - 9.53x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
Pin Diameter (A)
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.)
Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.)
Wire Thickness (T)
2.3
mm
Wire Lock Lynch Pins - 9.53x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2 or 18-8) HRB80    Clearance To Wire (E): 38.1 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 57 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel
Additional stock available from USA subject to Prior Sale = 1200
Part Number: LYP-Q2-095-057-S4 (Each)
21 Available Now | Further orders can be expected around Thu, Jul 02, 2026
$12.77 AUD
$12.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

21 Available Now. Backorder if more than 21.
Wire Lock Lynch Pins - 9.53x76.2x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin
Pin Diameter (A)
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.)
Grip Length (C)
76.20
mm
+ 0.00 / - 6.35
(Equiv. 3 in.)
Wire Thickness (T)
2.3
mm
Clearance To Wire (E)
38.1
mm
Wire Lock Lynch Pins - 9.53x76.2x2.3 mm - Carbon Steel Spring Wire Zinc Plated
Material: Carbon Steel Spring Wire Zinc Plated    Pin Length (B): 82.6 mm    Weight Per Piece: 74 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel
Additional stock available from USA subject to Prior Sale = 12188
Part Number: LYP-Q2-095-076-CZ (Each)
87 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$3.50 AUD
$3.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 87 available can be backordered.
Wire Lock Lynch Pins - 9.53x76.2x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin
Pin Diameter (A)
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.)
Grip Length (C)
76.20
mm
+ 0.00 / - 6.35
(Equiv. 3 in.)
Wire Thickness (T)
2.3
mm
Wire Lock Lynch Pins - 9.53x76.2x2.3 mm - Carbon Steel Spring Wire Zinc Plated
Material: Carbon Steel Spring Wire Zinc Plated    Clearance To Wire (E): 38.1 mm    Pin Length (B): 82.6 mm    Weight Per Piece: 74 g
Category: Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel
Additional stock available from USA subject to Prior Sale = 12188
Part Number: LYP-Q2-095-076-CZ (Each)
87 Available Now | Further orders can be expected around Sun, Jul 26, 2026
$3.50 AUD
$3.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

87 Available Now. Backorder if more than 87.
