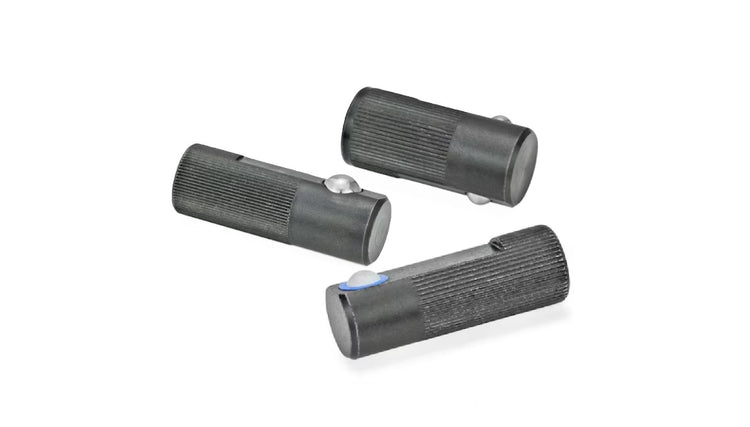

Pins - Side Thrust

Pins -> Side Thrust

There are 4 products in the sub-categories of Pins - Side Thrust. Browse the Pins - Side Thrust products table. To narrow down the selection, please choose a sub-category from the links below.

Side Thrust Pins - 16.002x5.588x14.986 mm - Steel Ball

Pins - Side Thrust - Double Sided Steel Ball

A selection of Double Sided Steel Ball Side Thrust Pins. For holding,...

Pins - Side Thrust - Double Sided Steel Ball

Side Thrust Pins - 7.874x3.048x6.604 mm - Plastic Ball

Pins - Side Thrust - Single Sided

This category includes various types of side thrust pins. Spring-loaded component used...

Pins - Side Thrust - Single Sided

Category Details

This category includes various types of side thrust pins.
  • Spring-loaded component used for clamping, positioning, and holding workpieces in machinery and fixtures.
  • Space-saving, simple alternative to more complex clamping methods and are designed to press against a part to secure it.
  • Often used for tasks like locating components during machining, in jigs and fixtures, or for holding flat items like circuit boards.
Pins - Side Thrust

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pins - Side Thrust category on the MBA Minibearings main store.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D E F Indicative
Side Thrust Pins - 7.874x3.048x6.604 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
7.874
mm

(Equiv. 0.31 in.)
Ball Diameter (B)
3.048
mm

(Equiv. 0.12 in.)
End Diameter (C)
6.604
mm

(Equiv. 0.26 in.)
D
24.892
mm
E
3.556
mm
F
6.096
mm
Side Thrust Pins - 7.874x3.048x6.604 mm - Plastic Ball
Material: Plastic Ball    G: 1.016 mm    Initial Load Rating: 0.25 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-25RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$55.05 AUD
$55.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Knurled Diameter (A) Ball Diameter (B) End Diameter (C) D Indicative
Side Thrust Pins - 7.874x3.048x6.604 mm Single Sided - Plastic Ball Pin
Knurled Diameter (A)
7.874
mm

(Equiv. 0.31 in.)
Ball Diameter (B)
3.048
mm

(Equiv. 0.12 in.)
End Diameter (C)
6.604
mm

(Equiv. 0.26 in.)
D
24.892
mm
Side Thrust Pins - 7.874x3.048x6.604 mm - Plastic Ball
Material: Plastic Ball    E: 3.556 mm    F: 6.096 mm    G: 1.016 mm    Initial Load Rating: 0.25 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-25RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$55.05 AUD
$55.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x4.064x8.128 mm Single Sided - Stainless Steel Ball Pin
Knurled Diameter (A)
9.906
mm

(Equiv. 0.39 in.)
Ball Diameter (B)
4.064
mm

(Equiv. 0.16 in.)
End Diameter (C)
8.128
mm

(Equiv. 0.32 in.)
D
29.972
mm
E
4.318
mm
F
7.112
mm
Side Thrust Pins - 9.906x4.064x8.128 mm - Stainless Steel Ball
Material: Stainless Steel Ball    G: 1.016 mm    Initial Load Rating: 0.46 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-10RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$55.32 AUD
$55.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x4.064x8.128 mm Single Sided - Stainless Steel Ball Pin
Knurled Diameter (A)
9.906
mm

(Equiv. 0.39 in.)
Ball Diameter (B)
4.064
mm

(Equiv. 0.16 in.)
End Diameter (C)
8.128
mm

(Equiv. 0.32 in.)
D
29.972
mm
Side Thrust Pins - 9.906x4.064x8.128 mm - Stainless Steel Ball
Material: Stainless Steel Ball    E: 4.318 mm    F: 7.112 mm    G: 1.016 mm    Initial Load Rating: 0.46 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-10RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$55.32 AUD
$55.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x5.588x9.144 mm Single Sided - Steel Ball Pin
Knurled Diameter (A)
9.906
mm

(Equiv. 0.39 in.)
Ball Diameter (B)
5.588
mm

(Equiv. 0.22 in.)
End Diameter (C)
9.144
mm

(Equiv. 0.36 in.)
D
29.972
mm
E
7.112
mm
F
7.874
mm
Side Thrust Pins - 9.906x5.588x9.144 mm - Steel Ball
Material: Steel Ball    G: 1.016 mm    Initial Load Rating: 5.10 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-45RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$94.68 AUD
$94.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 9.906x5.588x9.144 mm Single Sided - Steel Ball Pin
Knurled Diameter (A)
9.906
mm

(Equiv. 0.39 in.)
Ball Diameter (B)
5.588
mm

(Equiv. 0.22 in.)
End Diameter (C)
9.144
mm

(Equiv. 0.36 in.)
D
29.972
mm
Side Thrust Pins - 9.906x5.588x9.144 mm - Steel Ball
Material: Steel Ball    E: 7.112 mm    F: 7.874 mm    G: 1.016 mm    Initial Load Rating: 5.10 Kg
Category: Pins - Side Thrust - Single Sided
Part Number: WST-45RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$94.68 AUD
$94.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

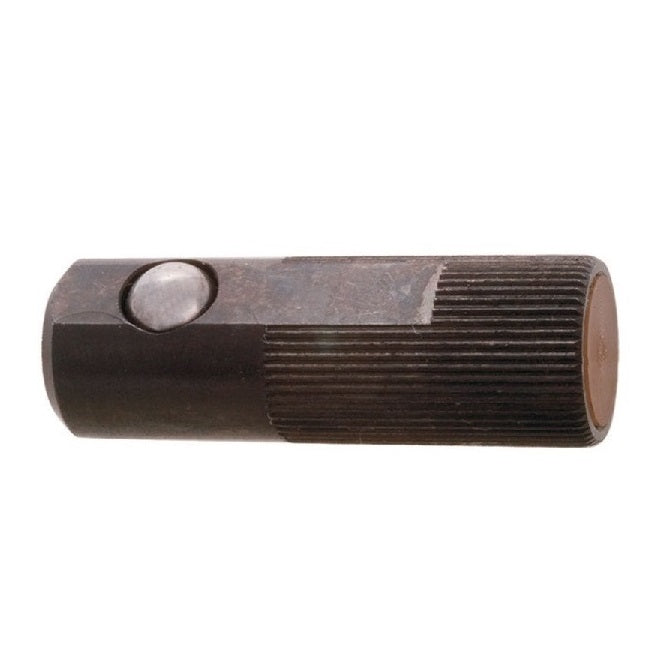

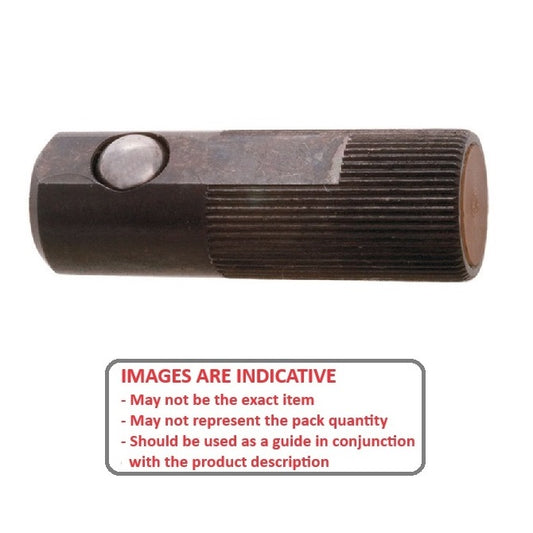

Side Thrust Pins - 16.002x5.588x14.986 mm Double Sided Steel Ball - Steel Ball Pin
Knurled Diameter (A)
16.002
mm

(Equiv. 0.63 in.)
Ball Diameter (B)
5.588
mm

(Equiv. 0.22 in.)
End Diameter (C)
14.986
mm

(Equiv. 0.59 in.)
D
35.052
mm
E
7.112
mm
F
10.922
mm
Side Thrust Pins - 16.002x5.588x14.986 mm - Steel Ball
Material: Steel Ball    G: 1.524 mm    Initial Load Rating: 3.67 Kg
Category: Pins - Side Thrust - Double Sided Steel Ball
Part Number: WST-60RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$111.86 AUD
$111.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Side Thrust Pins - 16.002x5.588x14.986 mm Double Sided Steel Ball - Steel Ball Pin
Knurled Diameter (A)
16.002
mm

(Equiv. 0.63 in.)
Ball Diameter (B)
5.588
mm

(Equiv. 0.22 in.)
End Diameter (C)
14.986
mm

(Equiv. 0.59 in.)
D
35.052
mm
Side Thrust Pins - 16.002x5.588x14.986 mm - Steel Ball
Material: Steel Ball    E: 7.112 mm    F: 10.922 mm    G: 1.524 mm    Initial Load Rating: 3.67 Kg
Category: Pins - Side Thrust - Double Sided Steel Ball
Part Number: WST-60RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$111.86 AUD
$111.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
