Pins - Pull - Threaded End - Stainless Steel

3 Products in this selection

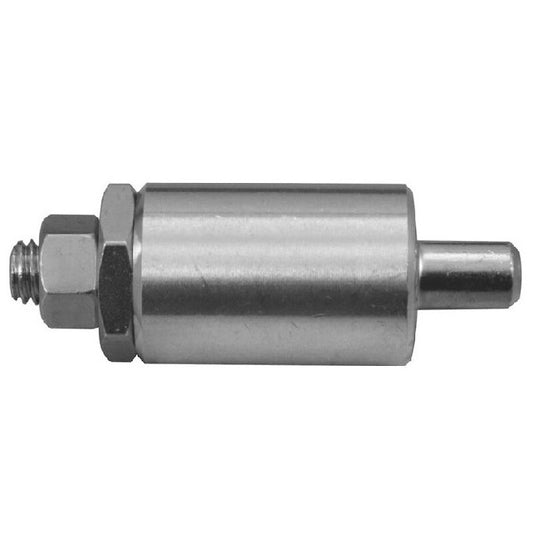

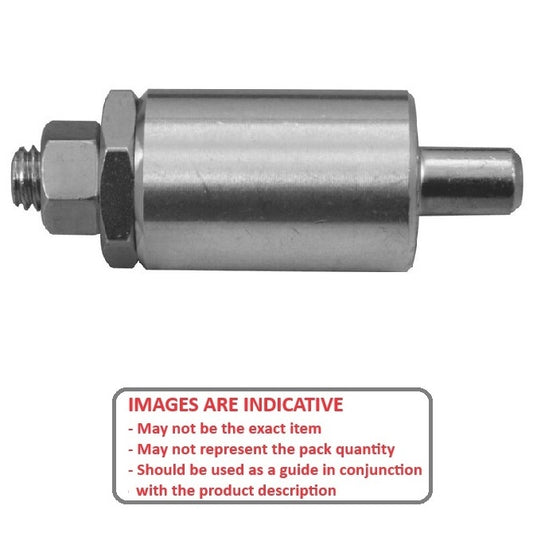

Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.
Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
3/8-16 Threaded end so you can add your own handle or knob.
303 stainless steel plunger assembly and housing.
Pull up force approx 2.2kg.

Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Nut Height (E)
9.525 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm
Material: Stainless
Part Number: BSD-80SSRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each
Nominal Pin Diameter (A)	Pin Length (B)	Body Length (C)	Body Diameter (D)	Indicative Image
9.525 mm	14.288 mm	38.100 mm	25.400 mm
Material: Stainless Nut Height (E): 4.763 mm
Part Number: BSD-80SSRS Pins - 9.525 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each
BSD-80SSRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Stainless BSD-80SSRS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm Stainless Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	38.100 mm	25.400 mm	4.763 mm
Material: Stainless
Part Number: BSD-85SSRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $68.41 AUD Regular price Sale price $68.41 AUD Unit price per Each
12.700 mm	14.288 mm	38.100 mm	25.400 mm
Material: Stainless Nut Height (E): 4.763 mm
Part Number: BSD-85SSRS Pins - 12.7 mm x 14.288 mm x 38.1 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $68.41 AUD Regular price Sale price $68.41 AUD Unit price per Each
BSD-85SSRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Stainless BSD-85SSRS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm Stainless Regular price $68.41 AUD Regular price Sale price $68.41 AUD Unit price per Out of stock! Backorder Now
12.700 mm	14.288 mm	57.150 mm	25.400 mm	4.763 mm
Material: Stainless
Part Number: BSD-90SSRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $94.41 AUD Regular price Sale price $94.41 AUD Unit price per Each
12.700 mm	14.288 mm	57.150 mm	25.400 mm
Material: Stainless Nut Height (E): 4.763 mm
Part Number: BSD-90SSRS Pins - 12.7 mm x 14.288 mm x 57.15 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Dec 22, 2024 Regular price $94.41 AUD Regular price Sale price $94.41 AUD Unit price per Each
BSD-90SSRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Stainless BSD-90SSRS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm Stainless Regular price $94.41 AUD Regular price Sale price $94.41 AUD Unit price per Out of stock! Backorder Now
