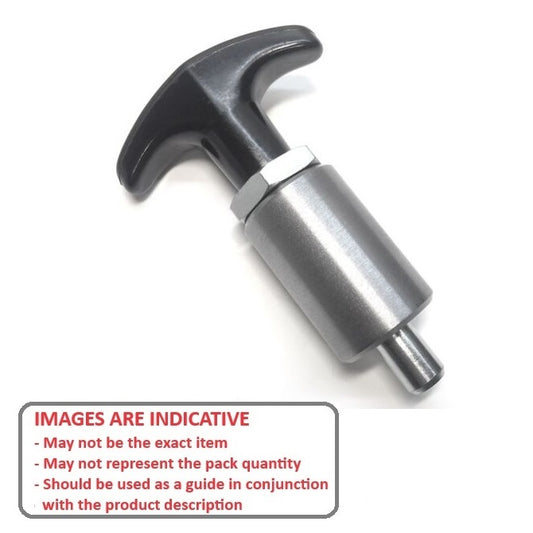

Pins - Pull - Tee Handle - Steel

10 Products in this selection
  • Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.
  • Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
  • Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
  • Handles are black plastic.
  • Zinc plated C1038 steel plugners and housings except 5/8 size which is 12L15 steel.
  • Pull up force approx 2.2kg. Lockout style (indicated in tables) allows you to pull and rotate handle 1/4 turn to lock plunger in retracted position.
Additional resources:
Master Pins Catalogue PDF
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Nut Height (E) Knob Height (F) Indicative
6.350
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1073556 | BSD-50RS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-50RS Pins - 6.35 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$49.59 AUD
$49.59 AUD
Each
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Indicative
6.350
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1073556 | BSD-50RS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-50RS Pins - 6.35 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$49.59 AUD
$49.59 AUD
Each
6.350
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1073557 | BSD-50LORS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-50LORS Pins - 6.35 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$50.23 AUD
$50.23 AUD
Each
6.350
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1073557 | BSD-50LORS --- Pins - 6.35 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-50LORS Pins - 6.35 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$50.23 AUD
$50.23 AUD
Each
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513

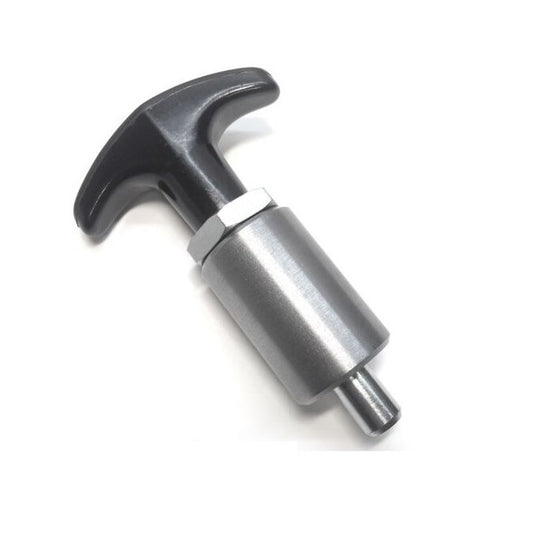

mm 		1087500 | BSD-55RS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-55RS Pins - 9.525 mm x 14.288 mm x 38.1 mm
3 Available
| Backorders for more can be expected around Sun, Dec 22, 2024
$55.59 AUD
$55.59 AUD
Each
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1087500 | BSD-55RS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-55RS Pins - 9.525 mm x 14.288 mm x 38.1 mm
3 Available
| | Backorders for more can be expected around Sun, Dec 22, 2024
$55.59 AUD
$55.59 AUD
Each
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1087503 | BSD-55LORS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-55LORS Pins - 9.525 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$56.50 AUD
$56.50 AUD
Each
9.525
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1087503 | BSD-55LORS --- Pins - 9.525 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-55LORS Pins - 9.525 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$56.50 AUD
$56.50 AUD
Each
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1102631 | BSD-60RS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-60RS Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$50.95 AUD
$50.95 AUD
Each
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1102631 | BSD-60RS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-60RS Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$50.95 AUD
$50.95 AUD
Each
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1102634 | BSD-60LORS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Steel    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-60LORS Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$55.68 AUD
$55.68 AUD
Each
12.700
mm 		14.288
mm 		38.100
mm 		25.400
mm 		1102634 | BSD-60LORS --- Pins - 12.7 mm x 14.288 mm x 38.1 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-60LORS Pins - 12.7 mm x 14.288 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$55.68 AUD
$55.68 AUD
Each
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1102646 | BSD-65RS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Steel    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-65RS Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$59.77 AUD
$59.77 AUD
Each
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		1102646 | BSD-65RS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-65RS Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$59.77 AUD
$59.77 AUD
Each
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1102651 | BSD-65LORS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Steel    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-65LORS Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$65.14 AUD
$65.14 AUD
Each
12.700
mm 		14.288
mm 		57.150
mm 		25.400
mm 		1102651 | BSD-65LORS --- Pins - 12.7 mm x 14.288 mm x 57.15 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-65LORS Pins - 12.7 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$65.14 AUD
$65.14 AUD
Each
15.875
mm 		14.288
mm 		57.150
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1111348 | BSD-70LORS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm
Material: Steel    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-70LORS Pins - 15.875 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$77.68 AUD
$77.68 AUD
Each
15.875
mm 		14.288
mm 		57.150
mm 		25.400
mm 		1111348 | BSD-70LORS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Lockout    Knob Length (G): 57.150
Part Number: BSD-70LORS Pins - 15.875 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$77.68 AUD
$77.68 AUD
Each
15.875
mm 		14.288
mm 		57.150
mm 		25.400
mm 		4.763
mm 		36.513
mm 		1111349 | BSD-70RS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm
Material: Steel    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-70RS Pins - 15.875 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$65.59 AUD
$65.59 AUD
Each
15.875
mm 		14.288
mm 		57.150
mm 		25.400
mm 		1111349 | BSD-70RS --- Pins - 15.875 mm x 14.288 mm x 57.15 mm
Material: Steel    Nut Height (E): 4.763 mm    Knob Height (F): 36.513 mm    Type: Non Lockout    Knob Length (G): 57.150
Part Number: BSD-70RS Pins - 15.875 mm x 14.288 mm x 57.15 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$65.59 AUD
$65.59 AUD
Each
