Pins - Pull - Round Handle - Stainless Steel

Pins -> Pull -> Round Handle -> Stainless Steel

There is only 1 product in the sub-categories of Pins - Pull - Round Handle - Stainless Steel. Browse the Pins - Pull - Round Handle - Stainless Steel products table.

Category Details

A selection of Stainless Steel Round Handle Pull Pins. Spring loaded pull pins allow you to quickly retract and engage the plunger for locating, fastening and quick change operations.

  • Two part assembly includes a barrel and a plunger assembly. The plunger assembly screws into the housing. The housing is designed to be welded into place for strength.
  • Pulling on the handle of the plunger assembly retracts the plunger into the housing. Releasing the handle allows the spring loaded plunger to extend.
  • Handles are black plastic.
  • 303 stainless steel plunger assembly and housing.
  • Pull up force approx 2.2kg. Lockout style (indicated in tables) allows you to pull and rotate handle 1/4 turn to lock plunger in retracted position.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pins - Pull - Round Handle - Stainless Steel category on the MBA Minibearings main store.
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Nut Height (E) Knob Height (F) Indicative

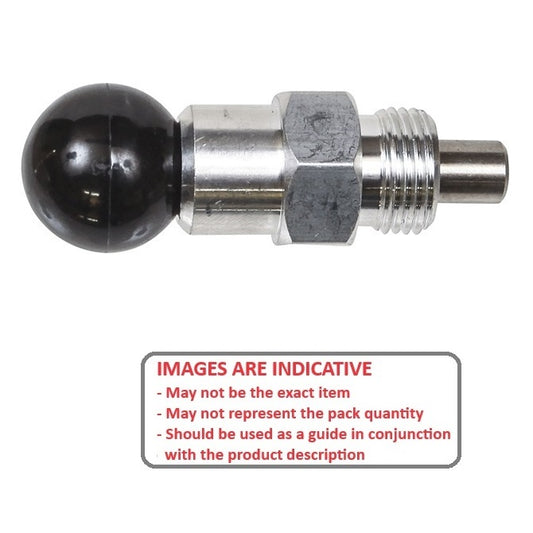

Pull Pins - 9.525x14.288x38.1 mm Round Handle - Stainless Steel Pin
Nominal Pin Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Nut Height (E)
4.763
mm
Knob Height (F)
34.925
mm
Pull Pins - 9.525x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel    Type: Lockout
Deleted Item. Available while stocks last.
Part Number: BSD-30LOSSRS (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$55.00 AUD
$111.65 AUD $55.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Pin Diameter (A) Pin Length (B) Body Length (C) Body Diameter (D) Indicative
Pull Pins - 9.525x14.288x38.1 mm Round Handle - Stainless Steel Pin
Nominal Pin Diameter (A)
9.525
mm

(Equiv. 0.375 in.)
Pin Length (B)
14.288
mm

(Equiv. 0.563 in.)
Body Length (C)
38.100
mm

(Equiv. 1.5 in.)
Body Diameter (D)
25.400
mm
Pull Pins - 9.525x14.288x38.1 mm - Stainless Steel
Material: Stainless Steel    Nut Height (E): 4.763 mm    Knob Height (F): 34.925 mm    Type: Lockout
Deleted Item. Available while stocks last.
Part Number: BSD-30LOSSRS (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$55.00 AUD
$111.65 AUD $55.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
