Pins - Locating Spring - Stainless Pin - Unsealed

1 Item Available

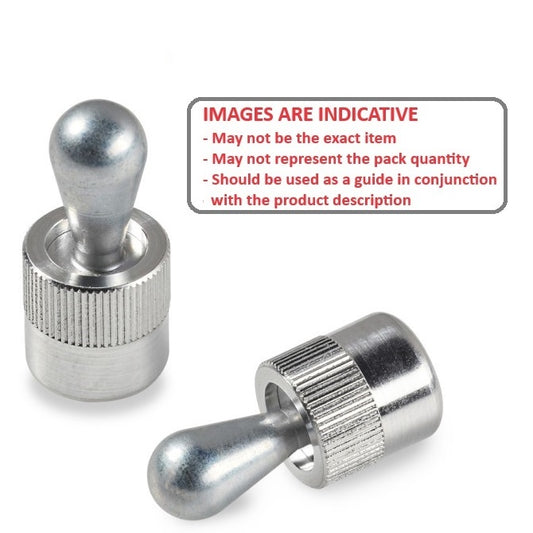

A selection of Unsealed Stainless Pin Locating Spring Pins. Aluminium Body. For fixturing small parts in tight areas. Ideal for positioning and chucking flat or round parts for profile clamping.

    Small Parts & Bearings

    Additional resources:
    Master Pins Catalogue PDF

    A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Locating Spring - Stainless Pin - Unsealed.
    Diameter (A) Pin Diameter (B) Pin Height (C) D E P Force Indicative
    Diameter (A)
    6.35
    mm
    Pin Diameter (B)
    3.00
    mm
    Pin Height (C)
    3.71
    mm
    D
    7.49
    mm
    E
    6.35
    mm
    + 0.025 / - 0.000
    P Force
    1.00
    Kg
    		Locating Spring Pins - 6.35x3x3.71 mm - Stainless Steel
    Material: Stainless Steel    X: 0.99 mm    Installation Tool: JLP-400
    Part Number: JLP-255RS (Each) Locating Spring Pins - 6.35x3x3.71 mm Stainless Pin - Stainless Steel
    Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 20, 2026
    $33.68 AUD
    $33.68 AUD
    Each
    Diameter (A) Pin Diameter (B) Pin Height (C) D Indicative
    Diameter (A)
    6.35
    mm
    Pin Diameter (B)
    3.00
    mm
    Pin Height (C)
    3.71
    mm
    D
    7.49
    mm
    		Locating Spring Pins - 6.35x3x3.71 mm - Stainless Steel
    Material: Stainless Steel    E: 6.35 mm + 0.025 / - 0.000    P Force: 1.00 Kg    X: 0.99 mm    Installation Tool: JLP-400
    Part Number: JLP-255RS (Each) Locating Spring Pins - 6.35x3x3.71 mm Stainless Pin - Stainless Steel
    Out of Stock | Backorder Now | Orders can be expected around Mon, Jul 20, 2026
    $33.68 AUD
    $33.68 AUD
    Each
    View the product page first if you are unsure.
