Mounts - Vibration Isolation Pads - Compression Shear

2 Products in this selection

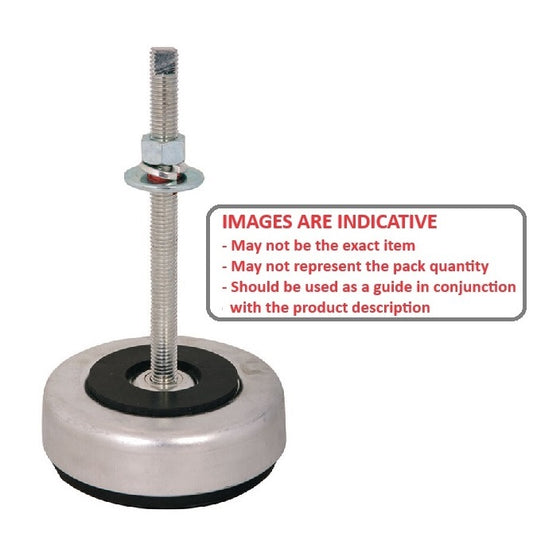

  • Durable, high quality mount combines effective compression and shear isolation from vibration and shock with the convenience of an internal leveling device.
  • Deep cavity design allows excellent vibration and shock control in both the vertical and horizontal directions.
  • Heavy duty ductile iron cover and chemically resistant neoprene insert. Internal leveling device levels up to 12.7mm. Specially designed recess on top of cover hosues a rubber washer.
  • Concentric rings on base of neoprene insert prevents walking or creeping. Ideal for lathes, milling machines, punch presses, printing machines, shears, brakes, injection moulding machines, grinders etc.
  • Includes all necessary hardware.
Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Load Non-Impact Machinery Load Impact Machinery Base Diameter (A) Base Height (H) Thread Size Thread Length Indicative
680.4
Kg 		453.6
Kg 		88.9
 47.625
mm 		88.9
mm 		1/2-13 UNC (12.70mm)

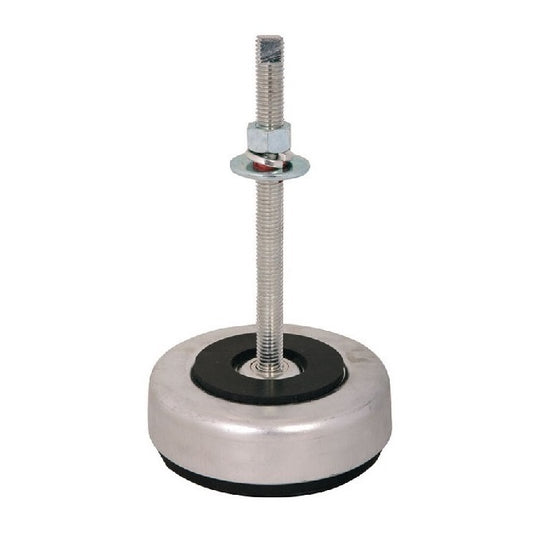

mm 		1221045 | MVI-0680-PC --- Vibration Isolation Pads Mounts - 680.4 Kg x 453.6 Kg x 88.9
Material: Steel and Neoprene
Part Number: MVI-0680-PC Vibration Isolation Pads Mounts - 680.4 Kg x 453.6 Kg x 88.9
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$227.32 AUD
$227.32 AUD
Each
View the product page first if you are unsure ->
Load Non-Impact Machinery Load Impact Machinery Base Diameter (A) Base Height (H) Indicative
680.4
Kg 		453.6
Kg 		88.9
 47.625
mm 		1221045 | MVI-0680-PC --- Vibration Isolation Pads Mounts - 680.4 Kg x 453.6 Kg x 88.9
Material: Steel and Neoprene    Thread Size: 88.9 mm    Thread Length: 1/2-13 UNC (12.70mm) mm
Part Number: MVI-0680-PC Vibration Isolation Pads Mounts - 680.4 Kg x 453.6 Kg x 88.9
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$227.32 AUD
$227.32 AUD
Each
View the product page first if you are unsure.
2041
Kg 		1360
Kg 		139.7
 57.15
mm 		139.7
mm 		5/8-11 UNC (15.88mm)
mm 		1223046 | MVI-2041-PC --- Vibration Isolation Pads Mounts - 2041 Kg x 1360 Kg x 139.7
Material: Steel and Neoprene
Part Number: MVI-2041-PC Vibration Isolation Pads Mounts - 2041 Kg x 1360 Kg x 139.7
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$619.59 AUD
$619.59 AUD
Each
View the product page first if you are unsure ->
2041
Kg 		1360
Kg 		139.7
 57.15
mm 		1223046 | MVI-2041-PC --- Vibration Isolation Pads Mounts - 2041 Kg x 1360 Kg x 139.7
Material: Steel and Neoprene    Thread Size: 139.7 mm    Thread Length: 5/8-11 UNC (15.88mm) mm
Part Number: MVI-2041-PC Vibration Isolation Pads Mounts - 2041 Kg x 1360 Kg x 139.7
Out of Stock | Backorder Now | Backorders for more can be expected around Fri, Feb 14, 2025
$619.59 AUD
$619.59 AUD
Each
View the product page first if you are unsure.
