Mounts - Levelling Studded - Anti-Vibration

Mounts -> Levelling Studded -> Anti-Vibration

There is only 1 product in the sub-categories of Mounts - Levelling Studded - Anti-Vibration. Browse the Mounts - Levelling Studded - Anti-Vibration products table.

Category Details

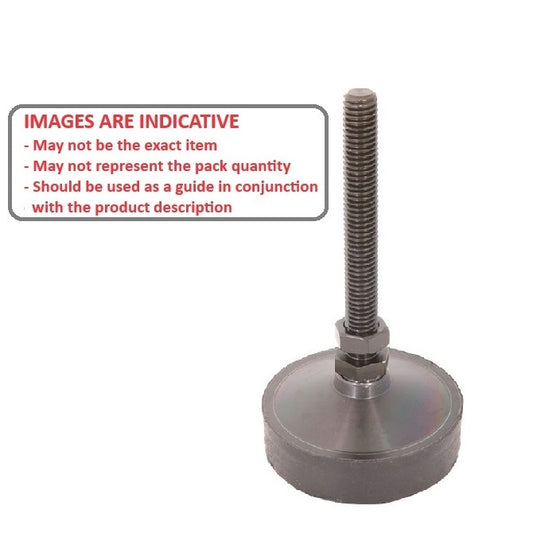

A selection of Anti-Vibration Levelling Studded Mounts. Levelling adjusters. Specifically designed to provide low frequency vibration isolation, leveling and shock attenuation for electronics and machinery.

  • An expanded range may be available on special order. Please enquire.
  • 15o swivel off centre to adjust to uneven surfaces.
  • over 12mm of black neoprene permanently bonded to the base. Neoprene operating temperature -20 to 80 oC.
  • Steel parts are zinc plated with black chromate finish.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Mounts - Levelling Studded - Anti-Vibration category on the MBA Minibearings main store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
M12 (12x1.75mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
41.3
mm

(Equiv. 1.626 in.)
Thread Length (F)
51.0
mm
Base Height (E)
41.3
mm
Overall Height
92.3
mm

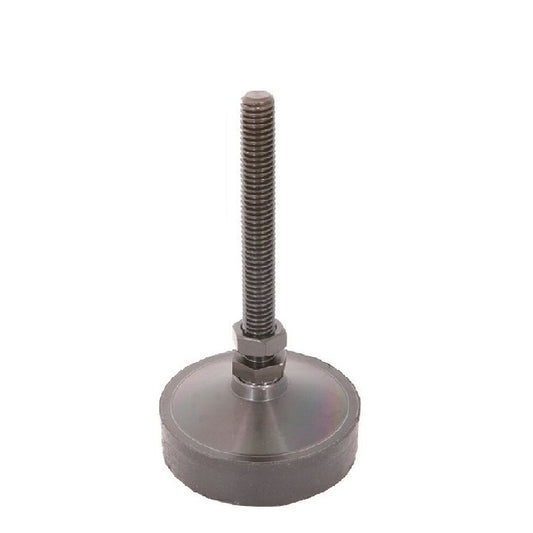

Levelling Studded Mounts - M12 -12x1.75mm- 76.2x41.3 mm - Steel
Material: Steel    Load Rating: 188 Kg    Finish: Black Chromate    Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-C-AVHD (Each)
Levelling Studded Mounts - M12 - 12x1.75mm - 76.2x41.3 mm Anti-Vibration - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$168.23 AUD
$168.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
M12 (12x1.75mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
41.3
mm

(Equiv. 1.626 in.)
Thread Length (F)
51.0
mm
Levelling Studded Mounts - M12 -12x1.75mm- 76.2x41.3 mm - Steel
Material: Steel    Base Height (E): 41.3 mm    Overall Height: 92.3 mm    Load Rating: 188 Kg    Finish: Black Chromate    Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-C-AVHD (Each)
Levelling Studded Mounts - M12 - 12x1.75mm - 76.2x41.3 mm Anti-Vibration - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025
$168.23 AUD
$168.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
