Mounts - Levelling Socket - Swivel - Clear Chromate - Standard

Mounts -> Levelling Socket -> Swivel -> Clear Chromate -> Standard

There is only 1 product in the sub-categories of Mounts - Levelling Socket - Swivel - Clear Chromate - Standard. Browse the Mounts - Levelling Socket - Swivel - Clear Chromate - Standard products table.

Category Details

A selection of Standard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Mounts - Levelling Socket - Swivel - Clear Chromate - Standard category on the MBA Minibearings main store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Clear Chromate Mount
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
2.80
mm

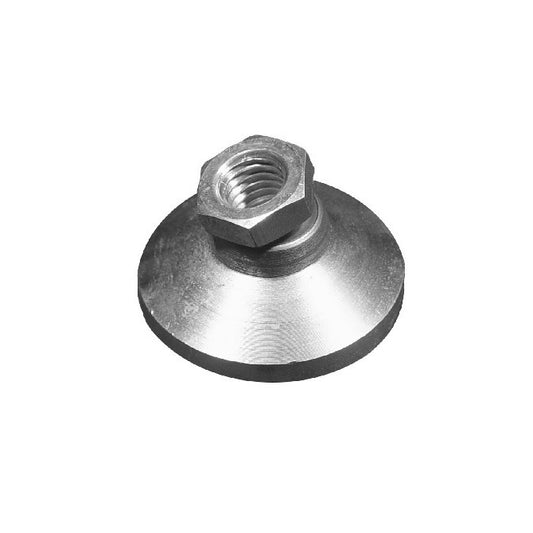

Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Clear Chromate
Material: Clear Chromate    Load Rating: 315 Kg    Finish: Clear Chromate    Hex Flats (B): 9.53
Part Number: MSF-048F-CCC (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$8.50 AUD
$8.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Clear Chromate Mount
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm

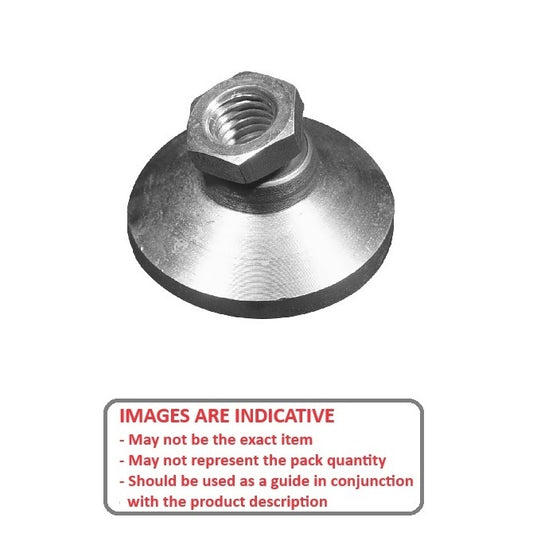

Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Clear Chromate
Material: Clear Chromate    Base Height (E): 2.80 mm    Load Rating: 315 Kg    Finish: Clear Chromate    Hex Flats (B): 9.53
Part Number: MSF-048F-CCC (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$8.50 AUD
$8.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
