Collection: Mounts - Levelling Socket - Swivel - Black Chromate
Mounts -> Levelling Socket -> Swivel -> Black ChromateThere are 2 products in the sub-categories of Mounts - Levelling Socket - Swivel - Black Chromate. Browse the Mounts - Levelling Socket - Swivel - Black Chromate products table. To narrow down the selection, please choose a sub-category from the links below.
Mounts - Levelling Socket - Swivel - Black Chromate - Rubber Padded
A selection of Rubber Padded Black Chromate Swivel Levelling Socket Mounts. Levelling...
Mounts - Levelling Socket - Swivel - Black Chromate - Standard
A selection of Standard Black Chromate Swivel Levelling Socket Mounts. Levelling adjusters....
Category Details
This category includes various types of levelling socket mounts.
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Mounts - Levelling Socket - Swivel - Black Chromate category on the MBA Minibearings main store.
| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Min. Thread Depth | Base Height (E) | Overall Height |
Indicative Image |
|---|---|---|---|---|---|---|

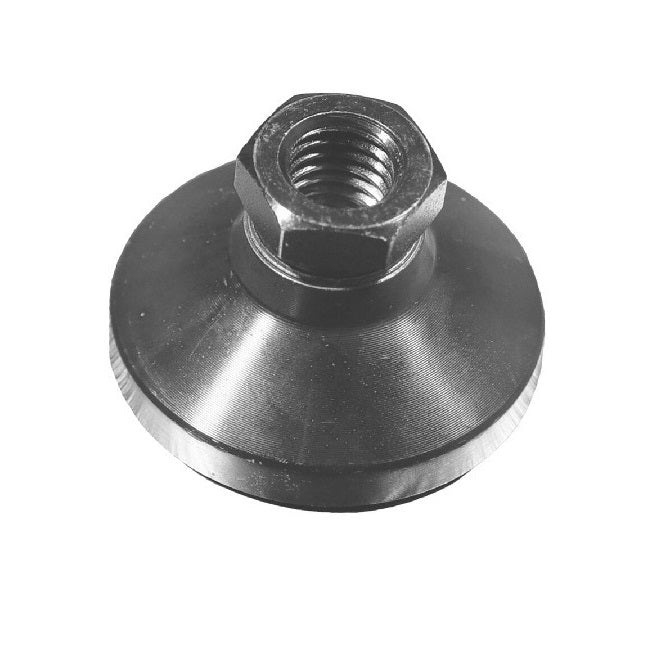

| Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount | ||||||
|
Thread Size (A)
10-32 UNF (4.76mm)
|
Base Diameter (D)
19.1
mm (Equiv. 0.752 in.) |
Foot Height (C)
13.5
mm (Equiv. 0.531 in.) |
Min. Thread Depth
4.3
mm |
Base Height (E)
2.79
mm |
|
|
|
Material: Steel
Load Rating: 270 Kg
Finish: Black Chromate
Category: Mounts - Levelling Socket - Swivel - Black Chromate - Standard |
||||||
|
Part Number: MSF-048F-CBC (PK-15)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$119.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Min. Thread Depth |
Indicative Image |
||
| Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount | ||||||
|
Thread Size (A)
10-32 UNF (4.76mm)
|
Base Diameter (D)
19.1
mm (Equiv. 0.752 in.) |
Foot Height (C)
13.5
mm (Equiv. 0.531 in.) |
Min. Thread Depth
4.3
mm |
|
||
|
Material: Steel
Base Height (E): 2.79 mm
Load Rating: 270 Kg
Finish: Black Chromate
Category: Mounts - Levelling Socket - Swivel - Black Chromate - Standard |
||||||
|
Part Number: MSF-048F-CBC (PK-15)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$119.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 15 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

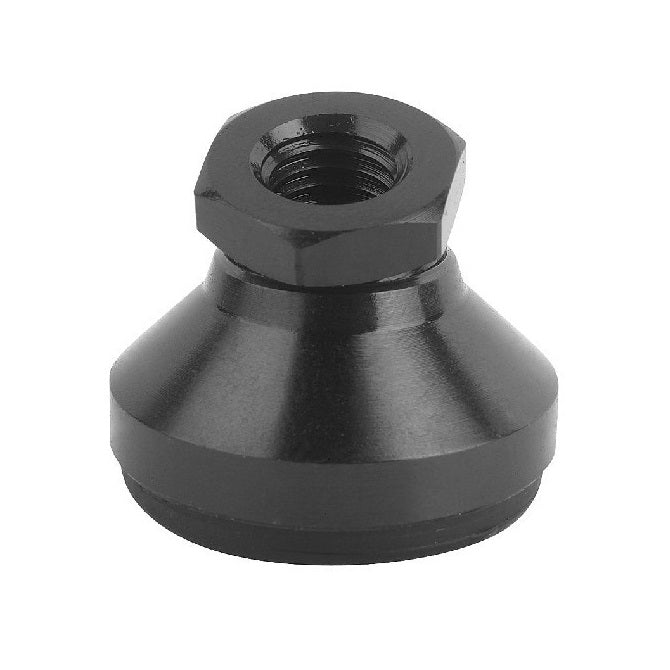

| Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount | ||||||
|
Thread Size (A)
10-32 UNF (4.76mm)
|
Base Diameter (D)
19.1
mm (Equiv. 0.752 in.) |
Foot Height (C)
16.8
mm (Equiv. 0.661 in.) |
Min. Thread Depth
4.3
mm |
Base Height (E)
6.10
mm |
|
|
|
Material: Steel
Load Rating: 240 Kg
Finish: Black Chromate
Category: Mounts - Levelling Socket - Swivel - Black Chromate - Rubber Padded |
||||||
|
Part Number: MSF-048F-CBCRP (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$21.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount | ||||||
|
Thread Size (A)
10-32 UNF (4.76mm)
|
Base Diameter (D)
19.1
mm (Equiv. 0.752 in.) |
Foot Height (C)
16.8
mm (Equiv. 0.661 in.) |
Min. Thread Depth
4.3
mm |
|
||
|
Material: Steel
Base Height (E): 6.10 mm
Load Rating: 240 Kg
Finish: Black Chromate
Category: Mounts - Levelling Socket - Swivel - Black Chromate - Rubber Padded |
||||||
|
Part Number: MSF-048F-CBCRP (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$21.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
