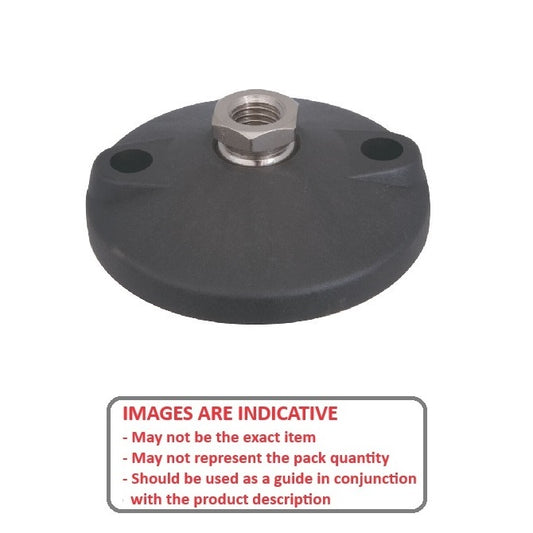

Mounts - Levelling Socket - Standard - Nylon - With Lag Holes

Mounts -> Levelling Socket -> Standard -> Nylon -> With Lag Holes

There is only 1 product in the sub-categories of Mounts - Levelling Socket - Standard - Nylon - With Lag Holes. Browse the Mounts - Levelling Socket - Standard - Nylon - With Lag Holes products table.

Category Details

A selection of With Lag Holes Nylon Standard Levelling Socket Mounts. Levelling adjusters. Steel and stainless steel threads.

  • An expanded range may be available on special order. Please enquire.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Mounts - Levelling Socket - Standard - Nylon - With Lag Holes category on the MBA Minibearings main store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 101.6x18.5 mm Standard - Stainless Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
18.5
mm

(Equiv. 0.728 in.)
Overall Height
34.29
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel
Material: Stainless Steel    Load Rating: 1180 Kg    Lag Hole Diameter: 12.192 mm    Distance Between Lags: 73.91 mm
Part Number: MLF-127C-S3NY-2LH (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$58.59 AUD
$58.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 101.6x18.5 mm Standard - Stainless Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
18.5
mm

(Equiv. 0.728 in.)
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 101.6x18.5 mm - Stainless Steel
Material: Stainless Steel    Overall Height: 34.29 mm    Load Rating: 1180 Kg    Lag Hole Diameter: 12.192 mm    Distance Between Lags: 73.91 mm
Part Number: MLF-127C-S3NY-2LH (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$58.59 AUD
$58.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
