Magnets - Cup Assemblies Stud

Magnets -> Cup Assemblies Stud

There is only 1 product in the sub-categories of Magnets - Cup Assemblies Stud. Browse the Magnets - Cup Assemblies Stud products table.

Category Details

A selection of Cup Assemblies Stud Magnets. This is the main category in this series

  • Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
  • Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Magnets - Cup Assemblies Stud category on the MBA Minibearings main store.
Diameter (A) Thickness (B) Thread Size Thread Length Holding Value Indicative

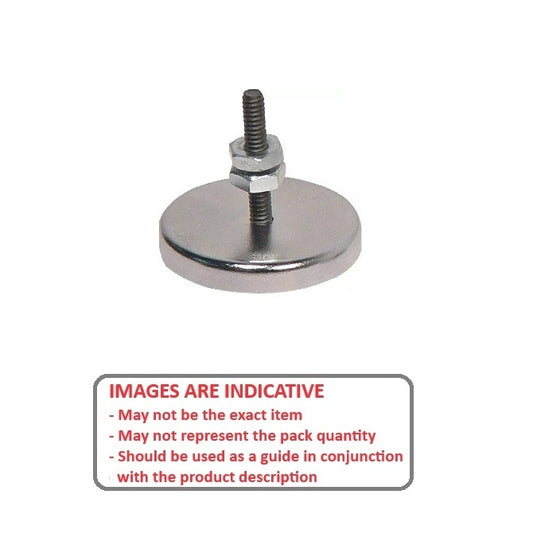

Cup Assemblies Stud Magnets - 31.35x4.76 mm - 6-32 UNC
Diameter (A)
31.35
mm

(Equiv. 1.234 in.)
Thickness (B)
4.76
mm

(Equiv. 0.187 in.)
Thread Size
6-32 UNC

Thread Length
25.40
mm
Holding Value
6.35
kg
Cup Assemblies Stud Magnets - 31.35x4.76 mm - 6-32 UNC
Part Number: MAG-CP-031-05-06-SD (Each)
3 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$10.86 AUD
$13.04 AUD $10.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 3 available can be backordered.
Diameter (A) Thickness (B) Thread Size Thread Length Indicative
Cup Assemblies Stud Magnets - 31.35x4.76 mm - 6-32 UNC
Diameter (A)
31.35
mm

(Equiv. 1.234 in.)
Thickness (B)
4.76
mm

(Equiv. 0.187 in.)
Thread Size
6-32 UNC

Thread Length
25.40
mm
Cup Assemblies Stud Magnets - 31.35x4.76 mm - 6-32 UNC
Holding Value: 6.35 kg
Part Number: MAG-CP-031-05-06-SD (Each)
3 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$10.86 AUD
$13.04 AUD $10.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
