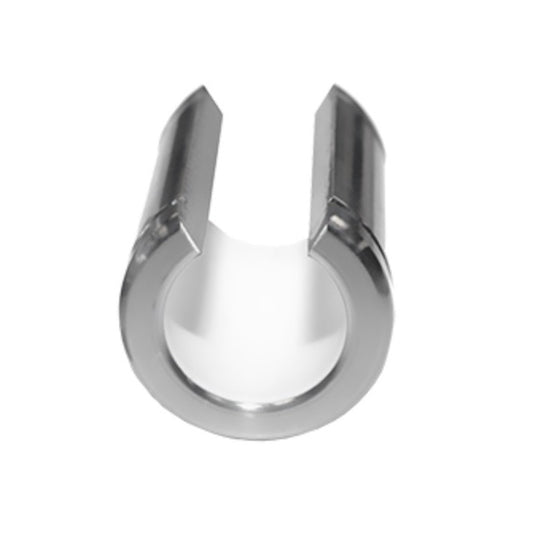

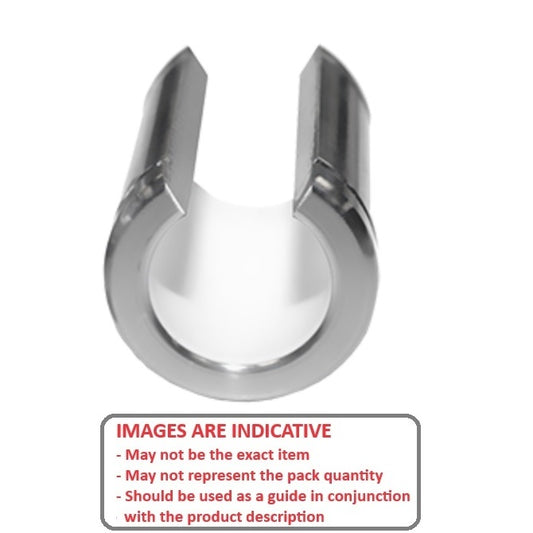

Linear - Sliding Bearings - Stainless - PTFE - Open

1 Item Available

A selection of Open PTFE Stainless Sliding Bearings Linear. Stainless steel shell features FDA/USDA compliant, self lubricating PTFE composite liner. Bearings are direct drop in replacements for many inch sized ball bushings.

  • Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
  • Stainless steel shell. Designed to run on soft 300 series stainless shafting. Minimum hardness RB25. Ideal for drug and food processing equipment.
  • Unafected by washdowns, contamination and submersion. Coefficient of friction is 0.12 to 0.20. Temperature range is -240 oC to 190 oC.
  • Max static PSI 1000. SFM without any load is 400. Max PV is 10,000.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Linear - Sliding Bearings - Stainless - PTFE - Open.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Groove Distance (D) Groove Width Indicative
Nominal Shaft Size (T)
9.54
mm

(Equiv. 0.376 in.)
Nom. Outer Diameter (D)
15.88
mm

(Equiv. 0.625 in.)
Overall Length (L)
22.23
mm

(Equiv. 0.875 in.)
Max. Load
6782
N
Groove Distance (D)
14.27
mm
Sliding Bearings Linear - 9.54x15.88x22.23 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE    Type: Open    Slot Width (F): 3.96 mm
Part Number: LOP-0095-016-022-SP (20 Pcs) Sliding Bearings Linear - 9.54x15.88x22.23 mm - Stainless Steel with PTFE
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025
$2,362.41 AUD
$2,362.41 AUD
Per 20
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Indicative
Nominal Shaft Size (T)
9.54
mm

(Equiv. 0.376 in.)
Nom. Outer Diameter (D)
15.88
mm

(Equiv. 0.625 in.)
Overall Length (L)
22.23
mm

(Equiv. 0.875 in.)
Max. Load
6782
N
Sliding Bearings Linear - 9.54x15.88x22.23 mm - Stainless Steel with PTFE
Material: Stainless Steel with PTFE    Groove Distance (D): 14.27 mm    Type: Open    Slot Width (F): 3.96 mm
Part Number: LOP-0095-016-022-SP (20 Pcs) Sliding Bearings Linear - 9.54x15.88x22.23 mm - Stainless Steel with PTFE
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025
$2,362.41 AUD
$2,362.41 AUD
Per 20
View the product page first if you are unsure.
