Collection: Linear - Sliding Bearings - Frelon J Lined - Closed - Standard

Linear (With Images)

Sliding Bearings

Frelon J Lined

Closed

Standard

1 Item Available

Self lubricating. Eliminates galling and shaft damage. Dampens vibration for quiet smooth operation. High load capacity. Absorbs shock loads. Maintenance free. Chemically inert. Temp range -240 Deg C to +260 Deg C
Frelon J = 10000 PV
Dry Running Max Surface Speed Frelon J = 0.7 mtrs / sec (140 ft / min).
With Lubrication Max Surface Speed Frelon J = 2 mtrs / sec (400 ft / min)
Standard type has slightly larger running clearances.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Linear - Sliding Bearings - Frelon J Lined - Closed - Standard.

Nom. Shaft Size (T)	Nom. Outer Diameter (D)	Overall Length (L)	Max. Load	Groove Distance (D)	Groove Width	Indicative Image
Nom. Shaft Size (T) 25.000 mm _{(0.984 in.)}	Nom. Outer Diameter (D) 35.000 mm _{(1.378 in.)}	Overall Length (L) 40.000 mm _{(1.575 in.)}	Max. Load 10295 N
Material: Frelon J Lined Series: Standard Type: Closed O-Ring To Suit: OR-030.50x2.50-NE70 Retaining Ring To Suit: N/A

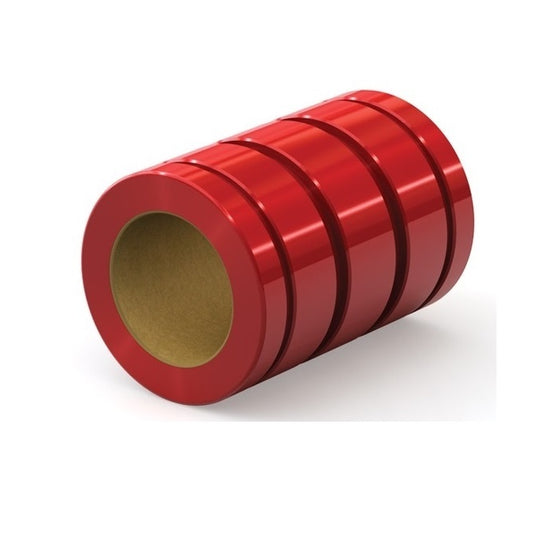

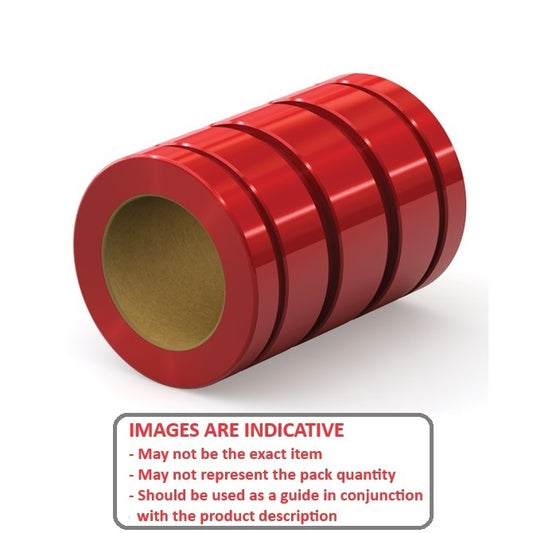

Part Number: LCP-0250-035-040-FJ Sliding Bearings Linear - 25x35x40 mm - Frelon J Lined 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $45.00 AUD Regular price ~~$85.50 AUD~~ Sale price $45.00 AUD Unit price per Each
Nom. Shaft Size (T)	Nom. Outer Diameter (D)	Overall Length (L)	Max. Load	Indicative Image
Nom. Shaft Size (T) 25.000 mm _{(0.984 in.)}	Nom. Outer Diameter (D) 35.000 mm _{(1.378 in.)}	Overall Length (L) 40.000 mm _{(1.575 in.)}	Max. Load 10295 N
Material: Frelon J Lined Series: Standard Type: Closed O-Ring To Suit: OR-030.50x2.50-NE70 Retaining Ring To Suit: N/A
Part Number: LCP-0250-035-040-FJ Sliding Bearings Linear - 25x35x40 mm - Frelon J Lined 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $45.00 AUD Regular price ~~$85.50 AUD~~ Sale price $45.00 AUD Unit price per Each
LCP-0250-035-040-FJ --- Sliding Bearings Linear - 25x35x40 mm - Frelon J Lined Sale LCP-0250-035-040-FJ --- Sliding Bearings Linear - 25x35x40 mm - Frelon J Lined Regular price $45.00 AUD Regular price ~~$85.50 AUD~~ Sale price $45.00 AUD Unit price per 1 Available Now Sale
