Collection: Linear - Redi-Rail Rail

Linear (With Images)

Redi-Rail Rail

15 Products in this selection

Match carriage and rail by rail widh
Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
Rollers made from 52100 hardened steel, lubricated and sealed.
Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

Width (B)	Length	Height (F)	Bolt Distance from End (S)	Bolt Spacing (T)	Bolt Size (X)
30.0 mm	480.0 mm	16.000 mm	30.0 mm	60.000 mm	M5 (5x0.8mm)
No. Of Holes: 8.000
Part Number: PBC-700RS Redi-Rail Rail Linear - 30 mm x 480 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $224.68 AUD Regular price Sale price $224.68 AUD Unit price per Each View the product page first if you are unsure ->

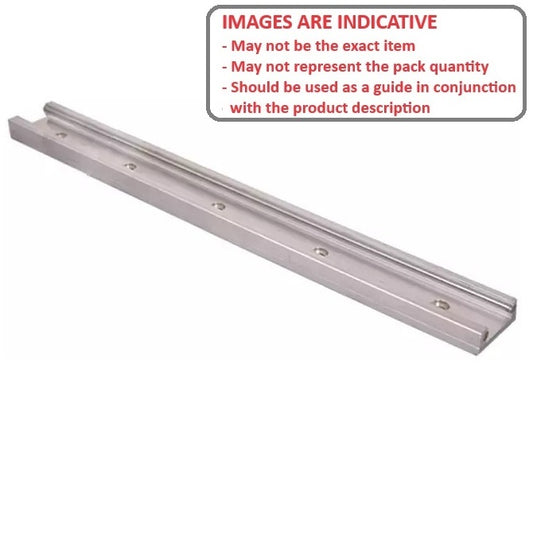

Width (B)	Length	Height (F)	Bolt Distance from End (S)	Indicative Image
30.0 mm	480.0 mm	16.000 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 8.000
Part Number: PBC-700RS Redi-Rail Rail Linear - 30 mm x 480 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $224.68 AUD Regular price Sale price $224.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-700RS --- Redi-Rail Rail Linear - 30 mm x 480 mm x 16 mm PBC-700RS --- Redi-Rail Rail Linear - 30 mm x 480 mm x 16 mm Regular price $224.68 AUD Regular price Sale price $224.68 AUD Unit price per Out of stock! Backorder Now
30.0 mm	720.0 mm	16.000 mm	30.0 mm	60.000 mm	M5 (5x0.8mm)
No. Of Holes: 12.000
Part Number: PBC-705RS Redi-Rail Rail Linear - 30 mm x 720 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $336.41 AUD Regular price Sale price $336.41 AUD Unit price per Each View the product page first if you are unsure ->
30.0 mm	720.0 mm	16.000 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 12.000
Part Number: PBC-705RS Redi-Rail Rail Linear - 30 mm x 720 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $336.41 AUD Regular price Sale price $336.41 AUD Unit price per Each View the product page first if you are unsure.
PBC-705RS --- Redi-Rail Rail Linear - 30 mm x 720 mm x 16 mm PBC-705RS --- Redi-Rail Rail Linear - 30 mm x 720 mm x 16 mm Regular price $336.41 AUD Regular price Sale price $336.41 AUD Unit price per Out of stock! Backorder Now
30.0 mm	960.0 mm	16.000 mm	30.0 mm	60.000 mm	M5 (5x0.8mm)
No. Of Holes: 16.000
Part Number: PBC-710RS Redi-Rail Rail Linear - 30 mm x 960 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $467.32 AUD Regular price Sale price $467.32 AUD Unit price per Each View the product page first if you are unsure ->
30.0 mm	960.0 mm	16.000 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M5 (5x0.8mm) No. Of Holes: 16.000
Part Number: PBC-710RS Redi-Rail Rail Linear - 30 mm x 960 mm x 16 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $467.32 AUD Regular price Sale price $467.32 AUD Unit price per Each View the product page first if you are unsure.
PBC-710RS --- Redi-Rail Rail Linear - 30 mm x 960 mm x 16 mm PBC-710RS --- Redi-Rail Rail Linear - 30 mm x 960 mm x 16 mm Regular price $467.32 AUD Regular price Sale price $467.32 AUD Unit price per Out of stock! Backorder Now
33.528 mm	304.8 mm	15.240 mm	19.050 mm	88.900 mm	No.10
No. Of Holes: 4.000

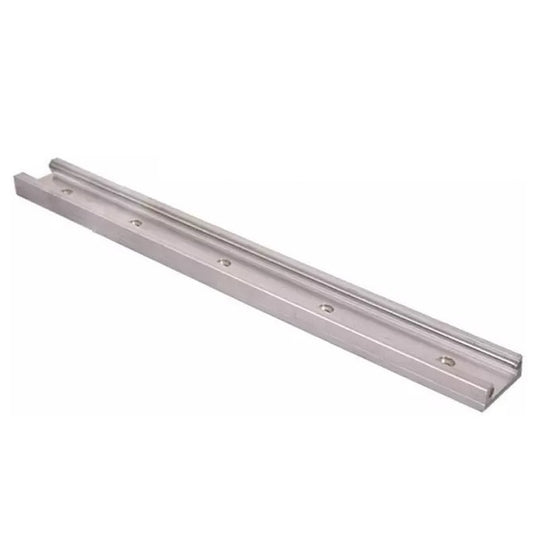

Part Number: PBC-650RS Redi-Rail Rail Linear - 33.528 mm x 304.8 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Each View the product page first if you are unsure ->
33.528 mm	304.8 mm	15.240 mm	19.050 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 4.000
Part Number: PBC-650RS Redi-Rail Rail Linear - 33.528 mm x 304.8 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Each View the product page first if you are unsure.
PBC-650RS --- Redi-Rail Rail Linear - 33.528 mm x 304.8 mm x 15.24 mm PBC-650RS --- Redi-Rail Rail Linear - 33.528 mm x 304.8 mm x 15.24 mm Regular price $137.77 AUD Regular price Sale price $137.77 AUD Unit price per Out of stock! Backorder Now
33.528 mm	609.6 mm	15.240 mm	38.100 mm	88.900 mm	No.10
No. Of Holes: 7.000
Part Number: PBC-655RS Redi-Rail Rail Linear - 33.528 mm x 609.6 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $179.95 AUD Regular price Sale price $179.95 AUD Unit price per Each View the product page first if you are unsure ->
33.528 mm	609.6 mm	15.240 mm	38.100 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 7.000
Part Number: PBC-655RS Redi-Rail Rail Linear - 33.528 mm x 609.6 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $179.95 AUD Regular price Sale price $179.95 AUD Unit price per Each View the product page first if you are unsure.
PBC-655RS --- Redi-Rail Rail Linear - 33.528 mm x 609.6 mm x 15.24 mm PBC-655RS --- Redi-Rail Rail Linear - 33.528 mm x 609.6 mm x 15.24 mm Regular price $179.95 AUD Regular price Sale price $179.95 AUD Unit price per Out of stock! Backorder Now
33.528 mm	914.4 mm	15.240 mm	12.700 mm	88.900 mm	No.10
No. Of Holes: 11.000
Part Number: PBC-660RS Redi-Rail Rail Linear - 33.528 mm x 914.4 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $276.68 AUD Regular price Sale price $276.68 AUD Unit price per Each View the product page first if you are unsure ->
33.528 mm	914.4 mm	15.240 mm	12.700 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): No.10 No. Of Holes: 11.000
Part Number: PBC-660RS Redi-Rail Rail Linear - 33.528 mm x 914.4 mm x 15.24 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $276.68 AUD Regular price Sale price $276.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-660RS --- Redi-Rail Rail Linear - 33.528 mm x 914.4 mm x 15.24 mm PBC-660RS --- Redi-Rail Rail Linear - 33.528 mm x 914.4 mm x 15.24 mm Regular price $276.68 AUD Regular price Sale price $276.68 AUD Unit price per Out of stock! Backorder Now
45.0 mm	480.0 mm	20.500 mm	30.0 mm	60.000 mm	M6
No. Of Holes: 8.000
Part Number: PBC-715RS Redi-Rail Rail Linear - 45 mm x 480 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $268.41 AUD Regular price Sale price $268.41 AUD Unit price per Each View the product page first if you are unsure ->
45.0 mm	480.0 mm	20.500 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 8.000
Part Number: PBC-715RS Redi-Rail Rail Linear - 45 mm x 480 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $268.41 AUD Regular price Sale price $268.41 AUD Unit price per Each View the product page first if you are unsure.
PBC-715RS --- Redi-Rail Rail Linear - 45 mm x 480 mm x 20.5 mm PBC-715RS --- Redi-Rail Rail Linear - 45 mm x 480 mm x 20.5 mm Regular price $268.41 AUD Regular price Sale price $268.41 AUD Unit price per Out of stock! Backorder Now
45.0 mm	720.0 mm	20.500 mm	30.0 mm	60.000 mm	M6
No. Of Holes: 12.000
Part Number: PBC-720RS Redi-Rail Rail Linear - 45 mm x 720 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $416.68 AUD Regular price Sale price $416.68 AUD Unit price per Each View the product page first if you are unsure ->
45.0 mm	720.0 mm	20.500 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 12.000
Part Number: PBC-720RS Redi-Rail Rail Linear - 45 mm x 720 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $416.68 AUD Regular price Sale price $416.68 AUD Unit price per Each View the product page first if you are unsure.
PBC-720RS --- Redi-Rail Rail Linear - 45 mm x 720 mm x 20.5 mm PBC-720RS --- Redi-Rail Rail Linear - 45 mm x 720 mm x 20.5 mm Regular price $416.68 AUD Regular price Sale price $416.68 AUD Unit price per Out of stock! Backorder Now
45.0 mm	960.0 mm	20.500 mm	30.0 mm	60.000 mm	M6
No. Of Holes: 16.000
Part Number: PBC-725RS Redi-Rail Rail Linear - 45 mm x 960 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $554.95 AUD Regular price Sale price $554.95 AUD Unit price per Each View the product page first if you are unsure ->
45.0 mm	960.0 mm	20.500 mm	30.0 mm
Bolt Spacing (T): 60.000 mm Bolt Size (X): M6 No. Of Holes: 16.000
Part Number: PBC-725RS Redi-Rail Rail Linear - 45 mm x 960 mm x 20.5 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $554.95 AUD Regular price Sale price $554.95 AUD Unit price per Each View the product page first if you are unsure.
PBC-725RS --- Redi-Rail Rail Linear - 45 mm x 960 mm x 20.5 mm PBC-725RS --- Redi-Rail Rail Linear - 45 mm x 960 mm x 20.5 mm Regular price $554.95 AUD Regular price Sale price $554.95 AUD Unit price per Out of stock! Backorder Now
48.514 mm	304.8 mm	19.050 mm	19.050 mm	88.900 mm	1/4 UNC
No. Of Holes: 4.000
Part Number: PBC-665RS Redi-Rail Rail Linear - 48.514 mm x 304.8 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $184.05 AUD Regular price Sale price $184.05 AUD Unit price per Each View the product page first if you are unsure ->
48.514 mm	304.8 mm	19.050 mm	19.050 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 4.000
Part Number: PBC-665RS Redi-Rail Rail Linear - 48.514 mm x 304.8 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $184.05 AUD Regular price Sale price $184.05 AUD Unit price per Each View the product page first if you are unsure.
PBC-665RS --- Redi-Rail Rail Linear - 48.514 mm x 304.8 mm x 19.05 mm PBC-665RS --- Redi-Rail Rail Linear - 48.514 mm x 304.8 mm x 19.05 mm Regular price $184.05 AUD Regular price Sale price $184.05 AUD Unit price per Out of stock! Backorder Now
48.514 mm	609.6 mm	19.050 mm	38.100 mm	88.900 mm	1/4 UNC
No. Of Holes: 7.000
Part Number: PBC-670RS Redi-Rail Rail Linear - 48.514 mm x 609.6 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $366.50 AUD Regular price Sale price $366.50 AUD Unit price per Each View the product page first if you are unsure ->
48.514 mm	609.6 mm	19.050 mm	38.100 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 7.000
Part Number: PBC-670RS Redi-Rail Rail Linear - 48.514 mm x 609.6 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $366.50 AUD Regular price Sale price $366.50 AUD Unit price per Each View the product page first if you are unsure.
PBC-670RS --- Redi-Rail Rail Linear - 48.514 mm x 609.6 mm x 19.05 mm PBC-670RS --- Redi-Rail Rail Linear - 48.514 mm x 609.6 mm x 19.05 mm Regular price $366.50 AUD Regular price Sale price $366.50 AUD Unit price per Out of stock! Backorder Now
48.514 mm	914.4 mm	19.050 mm	12.700 mm	88.900 mm	1/4 UNC
No. Of Holes: 11.000
Part Number: PBC-675RS Redi-Rail Rail Linear - 48.514 mm x 914.4 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $574.95 AUD Regular price Sale price $574.95 AUD Unit price per Each View the product page first if you are unsure ->
48.514 mm	914.4 mm	19.050 mm	12.700 mm
Bolt Spacing (T): 88.900 mm Bolt Size (X): 1/4 UNC No. Of Holes: 11.000
Part Number: PBC-675RS Redi-Rail Rail Linear - 48.514 mm x 914.4 mm x 19.05 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $574.95 AUD Regular price Sale price $574.95 AUD Unit price per Each View the product page first if you are unsure.
PBC-675RS --- Redi-Rail Rail Linear - 48.514 mm x 914.4 mm x 19.05 mm PBC-675RS --- Redi-Rail Rail Linear - 48.514 mm x 914.4 mm x 19.05 mm Regular price $574.95 AUD Regular price Sale price $574.95 AUD Unit price per Out of stock! Backorder Now
65.0 mm	480.0 mm	27.000 mm	40.0 mm	80.000 mm	M6
No. Of Holes: 6.000
Part Number: PBC-730RS Redi-Rail Rail Linear - 65 mm x 480 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $397.77 AUD Regular price Sale price $397.77 AUD Unit price per Each View the product page first if you are unsure ->
65.0 mm	480.0 mm	27.000 mm	40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 6.000
Part Number: PBC-730RS Redi-Rail Rail Linear - 65 mm x 480 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $397.77 AUD Regular price Sale price $397.77 AUD Unit price per Each View the product page first if you are unsure.
PBC-730RS --- Redi-Rail Rail Linear - 65 mm x 480 mm x 27 mm PBC-730RS --- Redi-Rail Rail Linear - 65 mm x 480 mm x 27 mm Regular price $397.77 AUD Regular price Sale price $397.77 AUD Unit price per Out of stock! Backorder Now
65.0 mm	720.0 mm	27.000 mm	40.0 mm	80.000 mm	M6
No. Of Holes: 9.000
Part Number: PBC-735RS Redi-Rail Rail Linear - 65 mm x 720 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $621.50 AUD Regular price Sale price $621.50 AUD Unit price per Each View the product page first if you are unsure ->
65.0 mm	720.0 mm	27.000 mm	40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 9.000
Part Number: PBC-735RS Redi-Rail Rail Linear - 65 mm x 720 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $621.50 AUD Regular price Sale price $621.50 AUD Unit price per Each View the product page first if you are unsure.
PBC-735RS --- Redi-Rail Rail Linear - 65 mm x 720 mm x 27 mm PBC-735RS --- Redi-Rail Rail Linear - 65 mm x 720 mm x 27 mm Regular price $621.50 AUD Regular price Sale price $621.50 AUD Unit price per Out of stock! Backorder Now
65.0 mm	960.0 mm	27.000 mm	40.0 mm	80.000 mm	M6
No. Of Holes: 12.000
Part Number: PBC-740RS Redi-Rail Rail Linear - 65 mm x 960 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $834.41 AUD Regular price Sale price $834.41 AUD Unit price per Each View the product page first if you are unsure ->
65.0 mm	960.0 mm	27.000 mm	40.0 mm
Bolt Spacing (T): 80.000 mm Bolt Size (X): M6 No. Of Holes: 12.000
Part Number: PBC-740RS Redi-Rail Rail Linear - 65 mm x 960 mm x 27 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Sat, Feb 01, 2025 Regular price $834.41 AUD Regular price Sale price $834.41 AUD Unit price per Each View the product page first if you are unsure.
PBC-740RS --- Redi-Rail Rail Linear - 65 mm x 960 mm x 27 mm PBC-740RS --- Redi-Rail Rail Linear - 65 mm x 960 mm x 27 mm Regular price $834.41 AUD Regular price Sale price $834.41 AUD Unit price per Out of stock! Backorder Now
