Linear - Rail Systems Type 3 Rails

Linear -> Rail Systems Type 3 Rails

There is only 1 product in the sub-categories of Linear - Rail Systems Type 3 Rails. Browse the Linear - Rail Systems Type 3 Rails products table.

Category Details

A selection of Rail Systems Type 3 Rails Linear. Match with carriage by size column 1. Thomson 500 Series provide long life, exceptional rigidity, high dynamic and static load capabilities in all directions.

  • Linear rails to suit type 2 carriages.
  • Straight rails through advanced grinding technologies. Simple installation and greater accuracy with joint-free rails up to 6 meters
  • Accommodates high moment loads and maintains high running accuracy. Improved machine accuracies and rigidity resulting in reduced vibration and extended machine and tool life.
  • Rails are subjected to multiple straightening processes during and after grinding of the ball paths to ensure straight and accurate rails.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Rail Systems Type 3 Rails category on the MBA Minibearings main store.
Size Reference Width (B1) Length Height (J1) F1 F2 Indicative
Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm
Size Reference
15

Width (B1)
15.000
mm

(Equiv. 0.591 in.)
Length
160
mm

(Equiv. 6.299 in.)
Height (J1)
15.700
mm
F1
4.500
mm
F2
8.000
mm

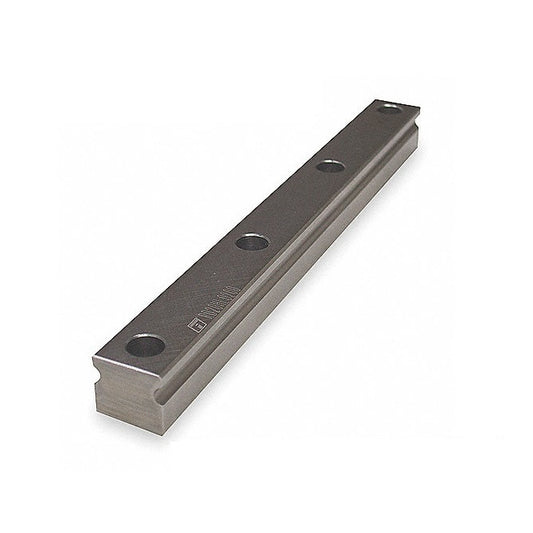

Rail Systems Type 3 Rails Linear - Size 15 - 15x160 mm
G1: 4.500 mm    Screw Size (S3): M4 (4x0.7mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3107RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$172.95 AUD
$172.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Size Reference Width (B1) Length Height (J1) Indicative
Rail Systems Type 3 Rails Linear - Size Reference 15 - 15x160 mm
Size Reference
15

Width (B1)
15.000
mm

(Equiv. 0.591 in.)
Length
160
mm

(Equiv. 6.299 in.)
Height (J1)
15.700
mm
Rail Systems Type 3 Rails Linear - Size 15 - 15x160 mm
F1: 4.500 mm    F2: 8.000 mm    G1: 4.500 mm    Screw Size (S3): M4 (4x0.7mm)    Hole Spacing (X): 60.000 mm    Hole Spacing from End (Y): 20.000 mm
Part Number: TLM-3107RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$172.95 AUD
$172.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
