Linear - Mini Rail Self-Lubricating

Linear -> Mini Rail Self-Lubricating

There is only 1 product in the sub-categories of Linear - Mini Rail Self-Lubricating. Browse the Linear - Mini Rail Self-Lubricating products table.

Category Details

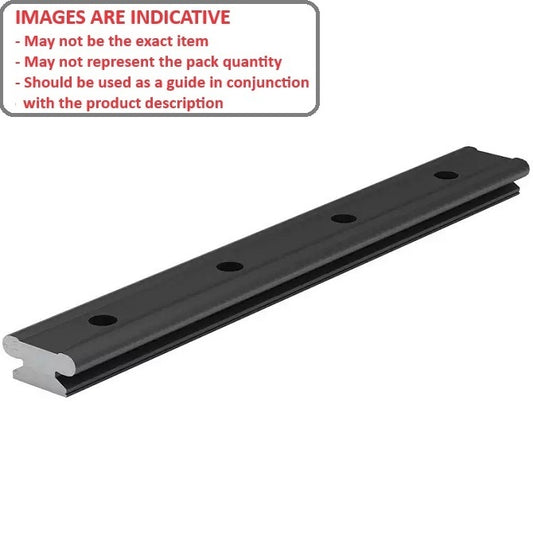

A selection of Mini Rail Self-Lubricating Linear. Rail Only. Carriages sold separately - match by rail width.

  • Low profile self-lubricating linear guide system with one piece carriage design. Excellent alternative to linear ball bearing systems. Precision series made from RC70 ceramic coated rail with self lubricating Frelon Gold.
  • Dampens vibration and tolerates shock loads. Will not rust. No metal to metal contact. No balls or rolling elements to trap contamination, skid or damage rail.
  • Operation is consistent, smooth and quiet. Maintenance free. Used in packaging machines, medical equipment, wash-down and harsh environments.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Linear - Mini Rail Self-Lubricating category on the MBA Minibearings main store.
Rail Width (A) Running Clearance Overall Height (B) Rail Height (B1) Rail Hole Size (H) Rail Hole Size (H1) Indicative
Rail Width (A)
12.00
mm

(Equiv. 0.472 in.)
Running Clearance
0.025-0.051
mm

(Equiv. 0.001 in.)
Overall Height (B)
13.00
mm

(Equiv. 0.512 in.)
Rail Height (B1)
8.00
mm
Rail Hole Size (H)
6.00
mm
Rail Hole Size (H1)
3.50
mm

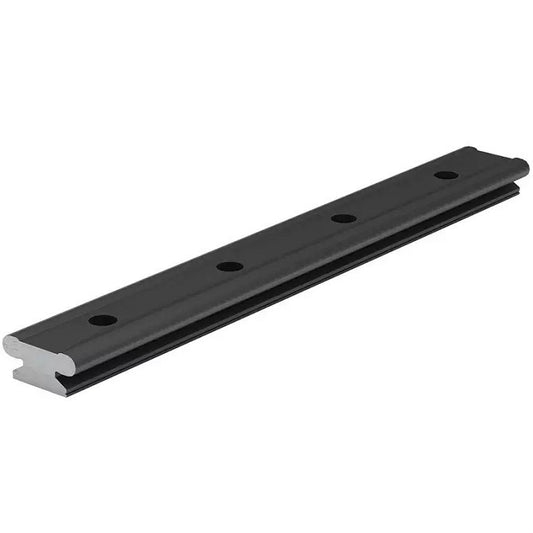

Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold
Material: Ceramic Coated RC70 with Frelon Gold    Rail Hole Depth (H2): 3.50 mm    L: 4.60 mm    M: 6.00 mm    Bolt for Rail End (S): 10.00 mm    Hole Spacing (T): 25.00 mm    Rail Length: 470.00 mm
Part Number: PBC-1168RS (Each)
Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026
$297.05 AUD
$297.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rail Width (A) Running Clearance Overall Height (B) Rail Height (B1) Indicative
Rail Width (A)
12.00
mm

(Equiv. 0.472 in.)
Running Clearance
0.025-0.051
mm

(Equiv. 0.001 in.)
Overall Height (B)
13.00
mm

(Equiv. 0.512 in.)
Rail Height (B1)
8.00
mm
Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold
Material: Ceramic Coated RC70 with Frelon Gold    Rail Hole Size (H): 6.00 mm    Rail Hole Size (H1): 3.50 mm    Rail Hole Depth (H2): 3.50 mm    L: 4.60 mm    M: 6.00 mm    Bolt for Rail End (S): 10.00 mm    Hole Spacing (T): 25.00 mm    Rail Length: 470.00 mm
Part Number: PBC-1168RS (Each)
Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold
Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 01, 2026
$297.05 AUD
$297.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
